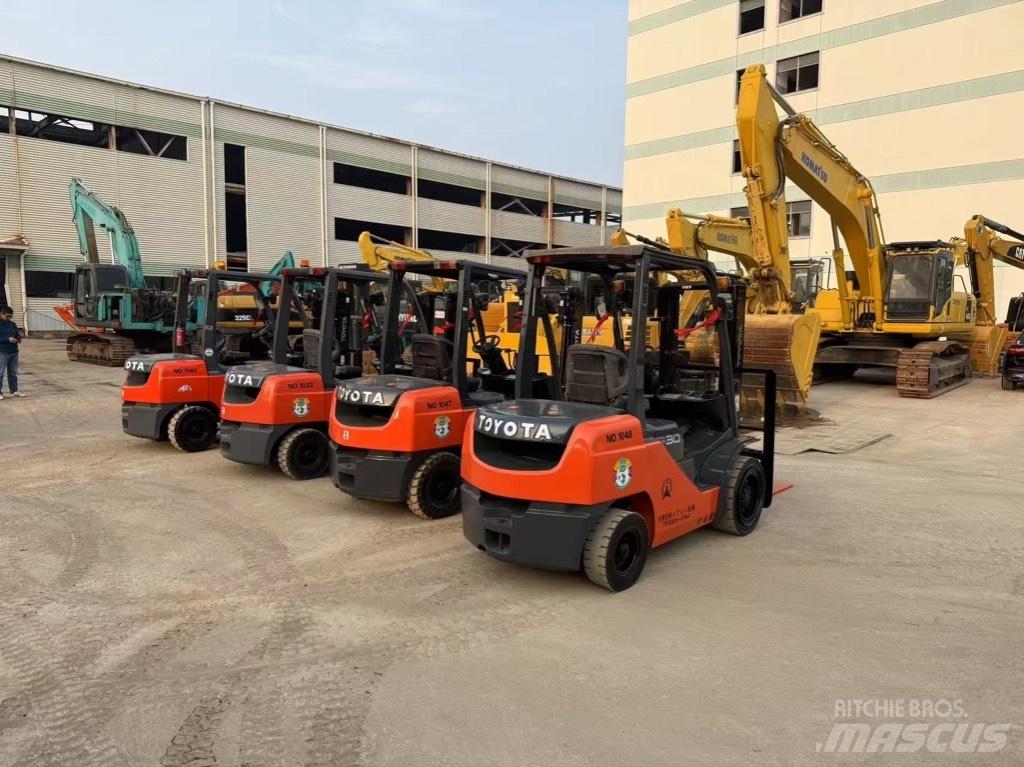

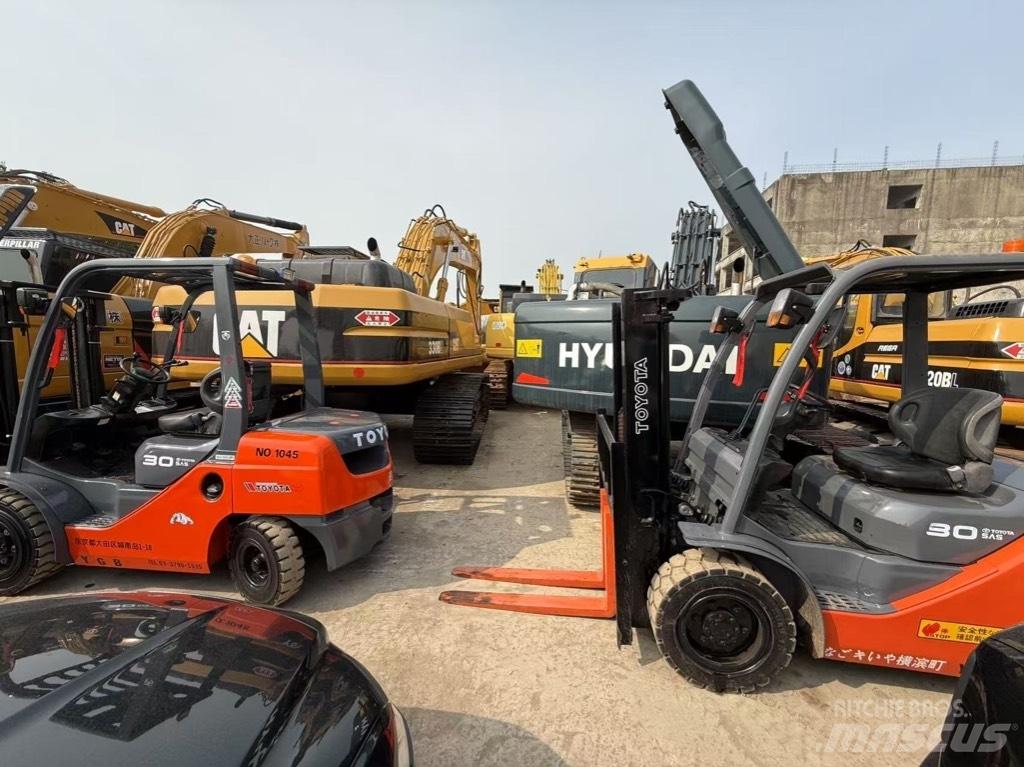

Toyota 8 FD 30

Rated load: 3000kg Load center: 500mm Maximum lifting height: 3000mm Free lifting height: 140mm Gate frame inclination angle: forward tilt 6 °, backward tilt 12 ° Maximum lifting speed (unloaded): 520mm/s Maximum lifting speed (full load): 470mm/s Maximum driving speed (forward/backward): 19.5km/h In addition, other parameters of Toyota's three ton forklift include: Overall dimensions of the machine: total length 3795mm, total width 1225mm, non lifting height of the door frame 2122mm, height of the roof protection frame 2170mm Fork size: 1070mm in length, 125mm in width, and 45mm in height Minimum turning radius: 2500mm Maximum climbing gradient: 15% Weight of the whole machine: 4300kg
