INFORMAȚII

Grup de produse
Echipamente de spalat
Marca /model
THUNE SP45SL
Optiuni extra
Folosit
Locatia masinii
Langley, British Columbia
Tara
Canada
Mascus ID
43BC9F7D

STABILIREA PRETULUI

Alege moneda

DETALII

Numar de stoc intern
112215
Alte informaţii

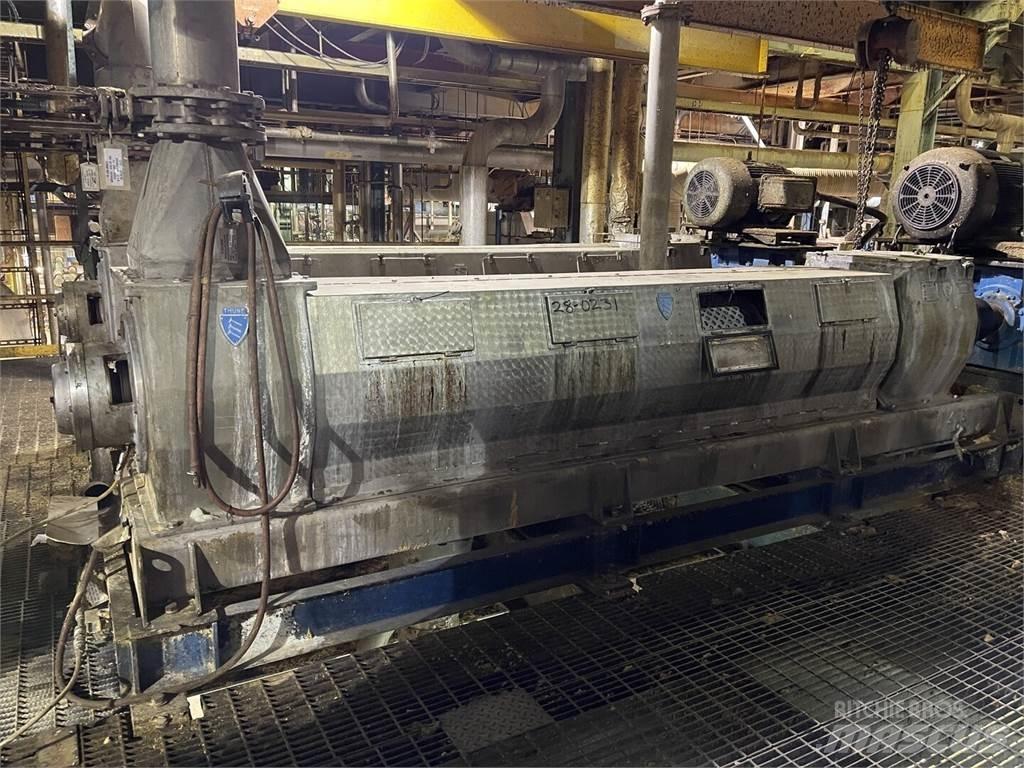

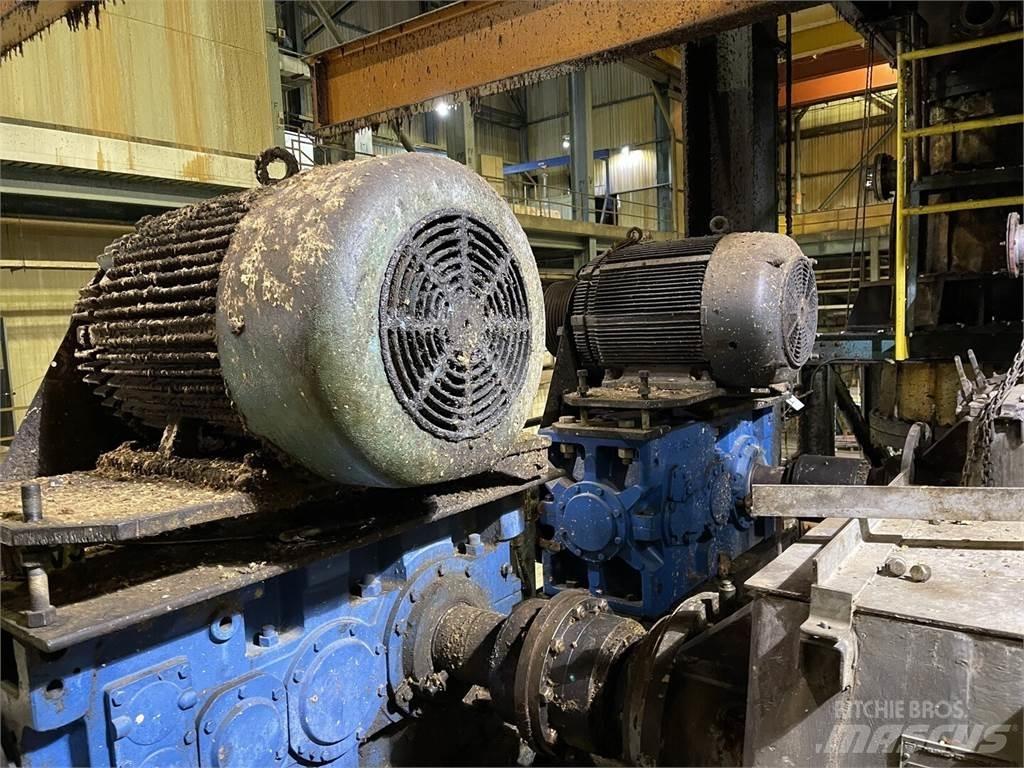

Dewatering Screw SP45SL Title: Dewatering Screw SP45SL SKU: 112215 Model: SP45SL Condition: Used [PDF BROCHURE](... MANUAL & TECHNICAL DRAWINGS](... Include: - Removing DCM extractives - Washing DIP - Washing high kappa kraft pulp - Dewatering rejects - Fiber sludge dewatering Features: - All wetted parts of high-grade stainless steel - The pneumatic counter-pressure system with piston-type individual baffles This combined with a mechanically adjusted cone ring ensures a high and even discharge consistency - The drill pattern of the screens and the close tolerances between the screw flight and the screens prevent blocking. - Improved hard facing on the screw flight in the high compression zone significantly reduces wear. - The split screen in the high compression zone enables easy screw flight inspection and maintenance. - The shaft screen in the high compression zone increases and evens out the discharge consistency. Dewatering Screw Dimensions: 4910 mm length x 950 mm width x 1030 mm height Net Weight (Just the screw): 3700 kg Nominal Capacity (Bone Dry Metric Tonnes Per Day): 120 BDMT/D Screen Cylinder Diameter: 45 cm Screen Sections: 4 Motor Ratings: 125 hp, 3-ph, 575V, 116 A, 1181 rpm Gearbox Ratio: 31.601 Gearbox Mechanical Rating: 476 hpAfiseaza mai multe

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
