THUNE SP45SL

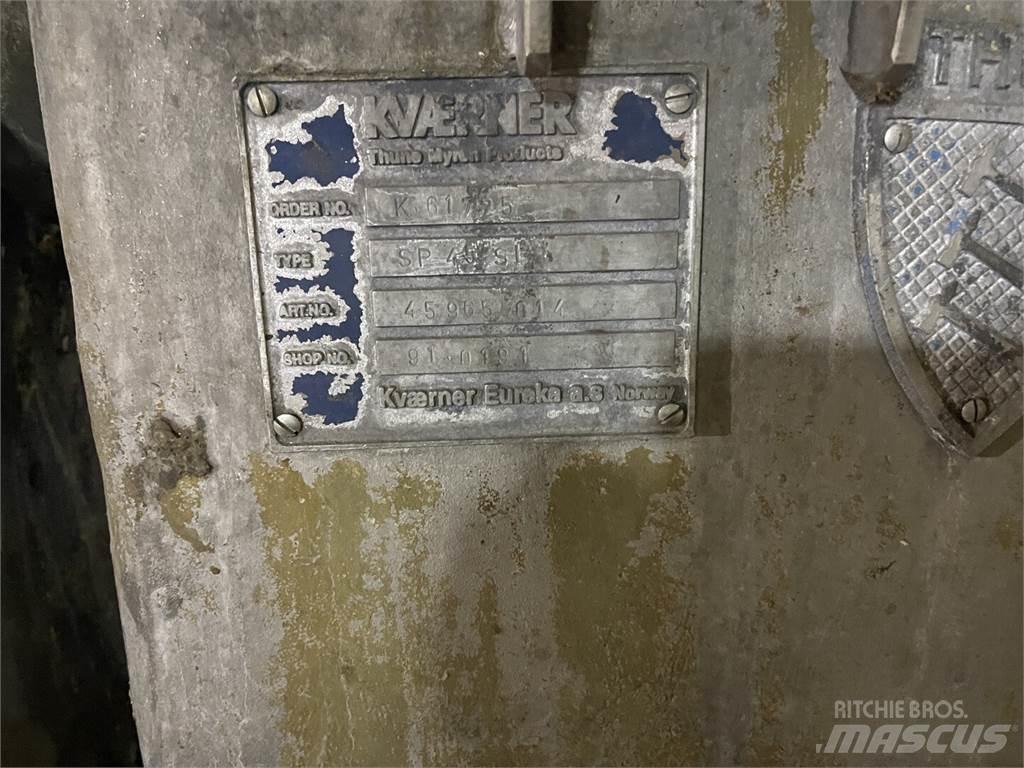

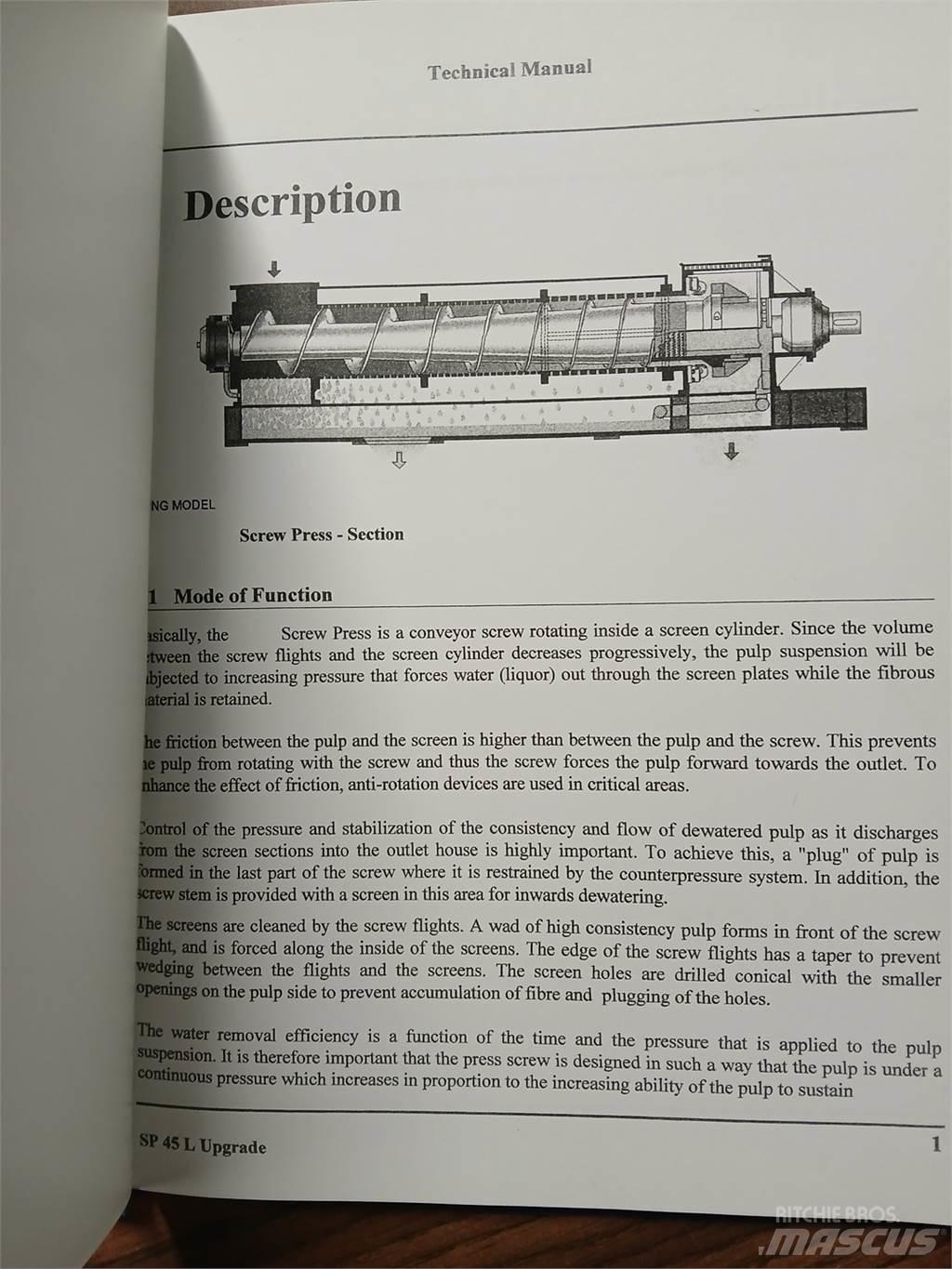

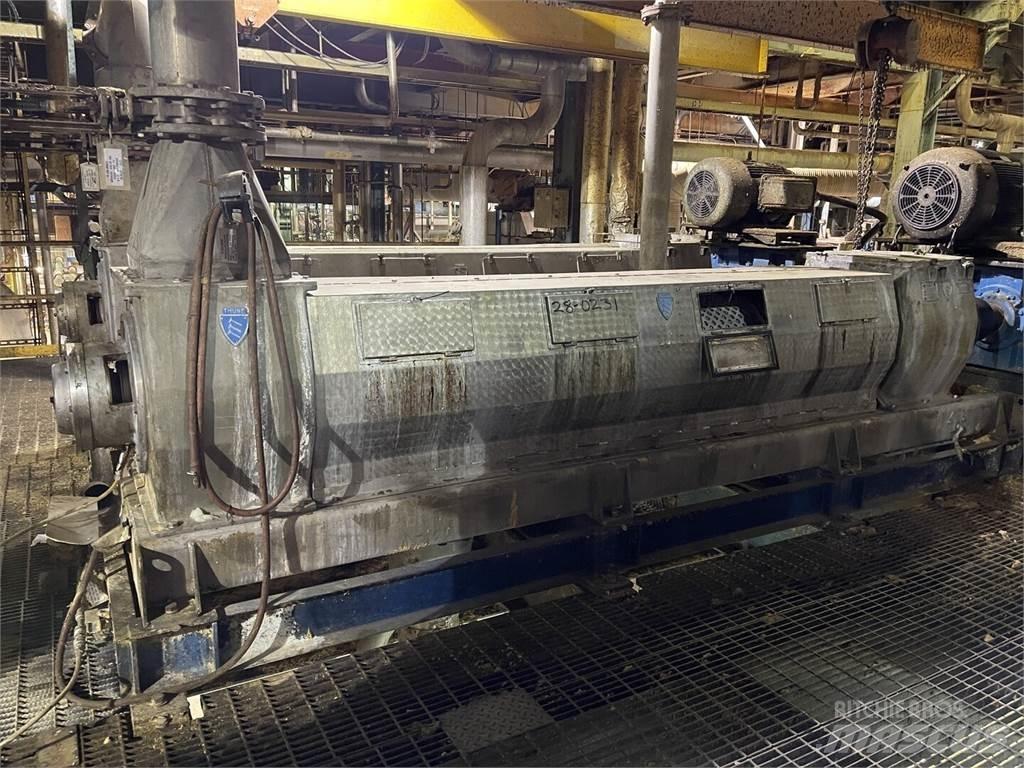

Dewatering Screw Press SP45SL Title: Dewatering Screw Press SP45SL SKU: 113591 Model: SP45SL Condition: Used [PDF BROCHURE](... MANUAL & TECHNICAL DRAWINGS](... Include: - Removing DCM extractives - Washing DIP - Washing high kappa kraft pulp - Dewatering rejects - Fiber sludge dewatering Features: - All wetted parts of high-grade stainless steel - The pneumatic counter-pressure system with piston-type individual baffles This combined with a mechanically adjusted cone ring ensures a high and even discharge consistency - The drill pattern of the screens and the close tolerances between the screw flight and the screens prevent blocking. - Improved hard facing on the screw flight in the high compression zone significantly reduces wear. - The split screen in the high compression zone enables easy screw flight inspection and maintenance. - The shaft screen in the high compression zone increases and evens out the discharge consistency. Dewatering Screw Dimensions: 4910 mm length x 950 mm width x 1030 mm height Net Weight (Just the screw): 3700 kg Nominal Capacity (Bone Dry Metric Tonnes Per Day): 120 BDMT/D Screen Cylinder Diameter: 45 cm Screen Sections: 4 Motor Power: 125 hp Gearbox Ratio: 30.427 Gearbox Nominal Power: 221 hp Gearbox Min. Speed: 1006 rpm
