Shantui SD13Plus

Preţ excl. TVA

POA

Compnay LOGO
Images2

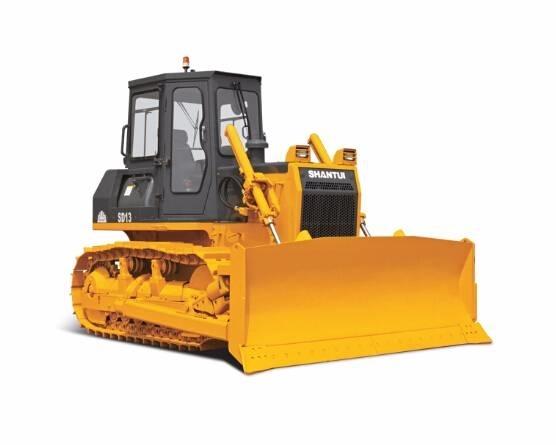

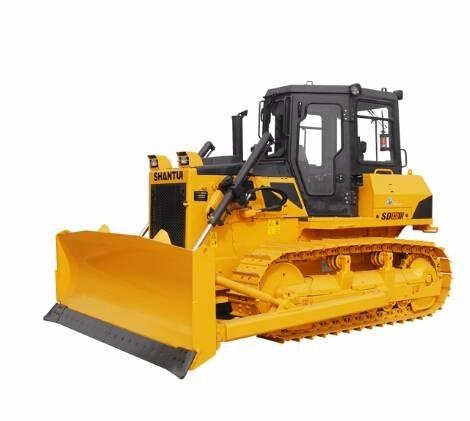

Shantui SD13Plus Buldozere pe senile
Shantui SD13Plus Buldozere pe senile
FavoriteFavorit
shareDistribuie
Save searchSalvare căutare
Imprima

INFORMAȚII

Grup de produse
Buldozere pe senile
Marca /model
Shantui SD13Plus
Anul fabricatiei
2018
Optiuni extra
Nou/nefolosit
Locatia masinii
Jining, Shandong, China
Tara
China
Nivel general
1
2
3
4
5
Mascus ID
51861799

DETALII

Numar de stoc intern
SD13Plus
Ultima inspectie
0
Istoria reviziei complete
Da
Lăţime operativă
320 cm
Numar de producere
SD13Plus
Greutate neta
13.700 kg
Tip lama
Lama dreaptă
Undercarriage
Cu senile
Clasa de emisie
Etapa II
Tip cabina
Cabina închisa
Motor
Shangchai SC8D143G2B1
Putere Motor
94,2 kW (128 hp)
Ecartament
460 mm
Transmisie
Shantui
Dimensiuni transport (Lxlxî)
4500 x 3200 x 2500 mm
Original colour
yellow
Brand anvelope
Shantui
Garanție
ISO9001
Calitate cauciucuri fata
100
Tara de productie
China
Echipat pentru
propertynames.pp_equippedfor_2100012
Termen de livrare
FOB, CFR, CIF, EXW
Certificate
EPA, CE, ANSI
Accesorii
Macara
Aer conditionat
Alte aparate hidraulice
Scarificator multiplu
Afiseaza mai multe
Alte informaţii
Technical Features ● Shangchai SC8D143G2B1 turbocharged diesel engine features strong power and high efficiency and energy conservancy. ● The high reliability power shift transmission and the two-stage final drive with spur gear reducing structure features reliable and stable power transmission, high durability, and high operating efficiency. ● The high-efficiency radiator can help the normal running of machine under high temperature environment and ease the daily maintenances. ● The integrally injection molded instrument panel adopts micro-computer control and reasonably arranged instruments, featuring more distinct displays. ● The optimized working lamp arrangement improves the lighting performance of vehicle. ● The reversing alarm and the working warning lamp are equipped to ensure higher construction safety. ● The instrument box and the gantry frame are isolated to relieve the transmission of vibration. ● The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame. ● The external working valves ease the daily maintenances and realize better maintainability. ● The PPC pilot controls achieve better labor-saving and convenient operations. ● The working device system pressure is increased to 21MPa, featuring high efficiency and energy-saving. ● The rigid traveling system transmits the working load and impact load onto the main frame to guarantee the stability of machine under complicated working conditions. ● The new hexahedron cab features super-large interior space and broader visual field. ● The mounting surface and the sealing surface are separated to achieve better sealing performance. ● The floor fender adopts the labyrinth sealing structure, with the internal noise as low as 87dB. Performance Parameters Length × width × height (mm) (excluding ripper)4492×3185×2490Operating weight(t) (excluding ripper)13.7 Engine modelSC8D143G2B1Net power/rated speed (kW/rpm)95.5/1900 Ground pressure(Mpa)0.063Blade typeStraight tilting blade Angle blade Blade capacity (m3)3.158 for straight tilting blade and 2.33 for angle blade Applicable Working Conditions Earthworks.Afiseaza mai multe

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 China
