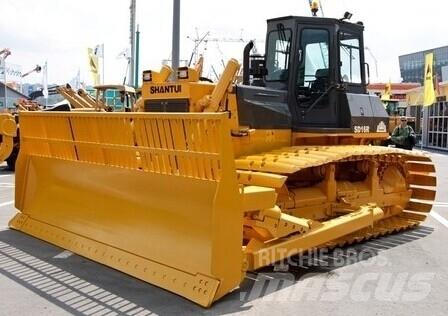

Shantui SD22R

L×W×H (Ripper not included) 6290×4365×3435mm Operating weight (Ripper not included) 26t Engine Cummins NT855-C280S10 Rated power 162/1800kW/rpm Gradeability 30° Blade type R-blade Blade width 4365×1885mm Dozing capacity 12m3 Ma× drop below ground of blade 550mm Lift height of blade 1330mm Ripper type - Ripping depth of ripper Single ripper 695mm Three-shank ripper 666mm Lifting height of ripper Single ripper 515mm Three-shank ripper 555mm Number of carriers (each side) 2     Number of track rollers (each side) 8 Number of track shoes (each side) 45 Width of track shoe 910mm Track gauge 2250mm Ground length and ground pressure 3480-0.041mm/MPa Pitch 216 Forward speed 0–3.6km/h 0–6.5km/h 0–11.2km/h Reverse speed 0–4.3km/h 0–7.7km/h 0–13.2km/h
