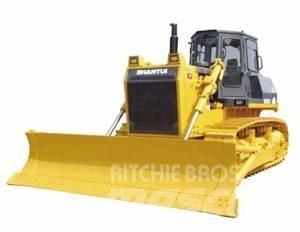

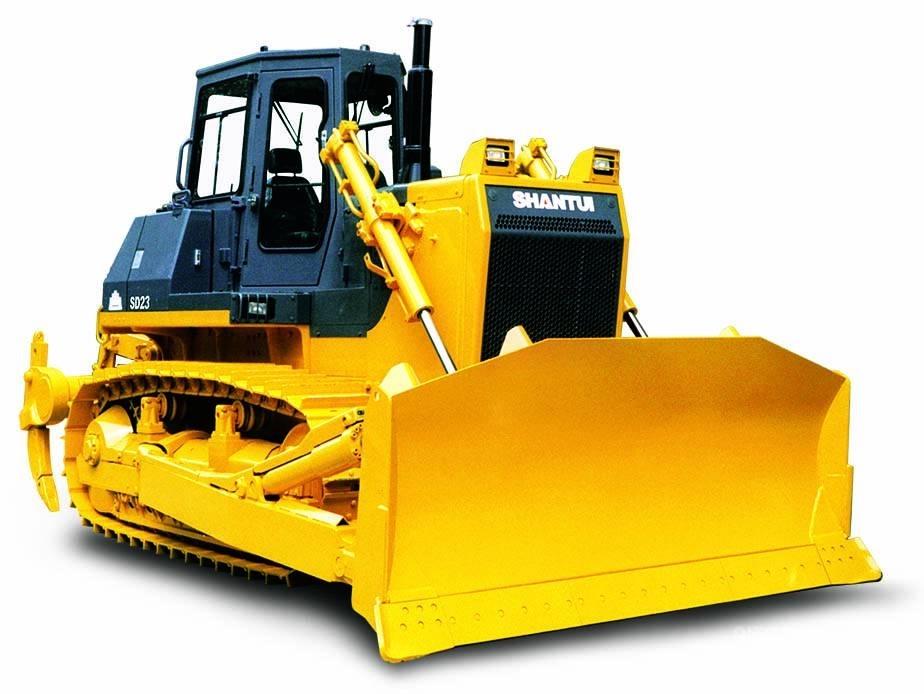

Shantui SD23

Name: Shantui SD23
Brand: Shantui
SKU: C47701B9
Availability: InStock

Preţ excl. TVA

POA

Favorit

Distribuie

Salvare căutare

Imprima

INFORMAȚII

Grup de produse

Buldozere pe senile

Marca /model

Shantui SD23

Anul fabricatiei

2019

Optiuni extra

Nou/nefolosit

Locatia masinii

jining

Tara

China

Nivel general

Mascus ID

C47701B9

DETALII

Ultima inspectie

yes

Greutate neta

24.600 kg

Tip lama

Lama dreaptă

Undercarriage

Cu senile

Tip cabina

Cabina închisa

Clasa de emisie

Etapa II

Motor

NT855-C280S10

Putere Motor

180 kW (245 hp)

Ecartament

560 mm

Transmisie

SHANTUI

Dimensiuni transport (Lxlxî)

5528×3725×3741 m

Original colour

Yellow

Tara de productie

China

Termen de livrare

FOB, CFR, CIF, EXW

Accesorii

Aer conditionat

Scarificator multiplu

Spintecator

Alte informaţii

SD23 crawler bulldozer adopts advanced technologies, including hydraulic drive, hydraulic control, electronic monitoring, and high capacity blade, and is fitted with ROPS, hexahedron cab with good visual field, air conditioning system, and ergonomic control system, featuring reasonable structure, advanced performances, and simple operations. [Product Parameter] Model SD23 Length × width × height (mm) (excluding ripper) 5528×3725×3741 Engine model NT855-C280S10 Ground pressure (Mpa) 0.078 Blade capacity(m3) 7.8 for straight tilting blade Operating weight (t)(excluding ripper) 24.6 Net power/rated speed (kW/rpm) 180/2000 Blade type Straight tilting blade U blade [Product Strengths] 1.The high power Cummins NT855-C280S10 with high-efficiency turbocharger is equipped to expand the high-efficiency working zone of engine and achieve lower fuel consumption. 2.The mature and stable hydraulic torque converter, the high reliability power shift transmission, and two-stage spur gear final drive feature high power transmission efficiency and high durability. 3.The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating. 4.The full box-type main frame features high carrying capacity against impact load and bending moment, in which the application of high performance materials and high strength castings makes the main frame stronger and the high quality welds guarantee the life cycle of the main frame. 5.The advanced fuel-saving hydraulic circuit features low energy consumption and convenient maintenances, with the working pressure up to 19.1MPa. 6.The integrally injection molded instrument panel features beautiful modeling and realize the automatic diagnosis and whole-process monitoring for the malfunctions in domestic market. 7.The chassis system features powerful traction and durability and high adaptability and stability under various complicated working conditions. 8.In accordance with ergonomic principles, the gearshift, steering, and accelerator controls are arranged on the left side of the driver, with the adoption of flexible shaft mechanism. The working device controls are centrally arranged on the right side of the driver with adoption of servo control system, featuring light and flexible controls. 9.The standard straight tilting blade features powerful cutting force and durability, with optional U-blade at the user's choice. The single-shank ripper features adjustable penetrating angle and powerful penetrating force, with optional three-shank ripper and traction frame at the user's choice. [Applicable Working Conditions] Bulldozing, digging, landfill, and other bulk operations. [Current sales conditions] As one of the most popular Shantui products, this bulldozer has been sold all over the world. Our Advantage 1. Multiple products: Various bulldozer series. 2. Favorable price: Factory outlet. 3. Short delivery period: Factory outlet. 4. Flexible business terms: Supported by reliable insurance and financial platforms. 5. Perfect after-sales service: Global after-sales service network. Our Market Nowadays, Shantui products have a quite good reputation in Africa, Europe, America, and Asia.Afiseaza mai multe

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 China
