Shantui SD32

Preţ excl. TVA

POA

Compnay LOGO
Images3

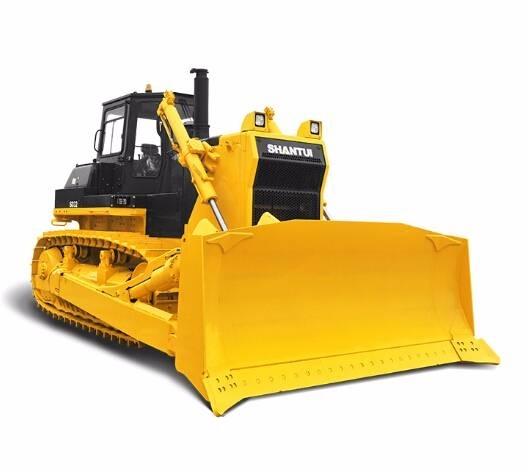

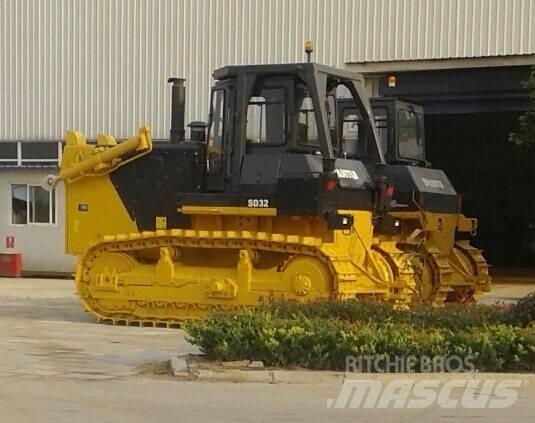

Shantui SD32 Buldozere pe senile
Shantui SD32 Buldozere pe senile
Shantui SD32 Buldozere pe senile
FavoriteFavorit
shareDistribuie
Save searchSalvare căutare
Imprima

INFORMAȚII

Grup de produse
Buldozere pe senile
Marca /model
Shantui SD32
Anul fabricatiei
2018
Optiuni extra
Nou/nefolosit,Posibilitate inchiriere,recondiționat
Locatia masinii
Jining, Shandong, China
Tara
China
Nivel general
1
2
3
4
5
Mascus ID
9DD39A99

DETALII

Numar de stoc intern
SD32
Ultima inspectie
yes
Istoria reviziei complete
Da
Lăţime operativă
413 cm
Numar de producere
SD32
Greutate neta
37.200 kg
Tip lama
Lama dreaptă
Undercarriage
Cu senile
Tip cabina
Cabina închisa
Clasa de emisie
Etapa II
Motor
Cummins NTA855-C360S10
Putere Motor
232 kW (315 hp)
Ecartament
560 mm
Transmisie
Shantui
Producător de motoare
Cummins
Dimensiuni transport (Lxlxî)
6880 x 4130 x 3730 mm
Original colour
yellow
Brand anvelope
Shantui
Garanție
ISO9001
Calitate cauciucuri fata
100
Tara de productie
China
Echipat pentru
propertynames.pp_equippedfor_2100012
Termen de livrare
FOB, CFR, CIF, EXW
Certificate
EPA, CE, ANSI
Accesorii
Macara
Aer conditionat
Alte aparate hidraulice
Spintecator
Afiseaza mai multe
Alte informaţii
Technical Features ●Chongfa NTAA855-C360S10 engine is equipped with exhaust gas turbocharger, featuring strong power and high efficiency and energy-saving, and can work normally even in the highlands as high as 3,600m. Depending on the customers’ demands, the option Cummins and Weichai engines are available. ●The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission capacity and efficiency and high productivity. ●The independent engine water tank, the chassis oil cooler, and the water-air intercooler integrated in the Chongfa engine provide prominent cooling performance and simple maintenance operations to guarantee the continuous working of the machine. ●The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment to support the continuous high-strength working of machine under severe working condition and the high quality welds guarantee the life cycle of the main frame. ●The low-drive final drive can provide powerful drive force and efficient gradeability. Shantui's crawler chassis has reached the international advanced level in process level and can adapt to various complicated working conditions, featuring high reliability and carrying capacity. ●The standard straight tilting blade features powerful cutting force and the single-shank and three-shank rippers of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine. Performance Parameters Length × width × height (mm) (excluding ripper) 8560×4130×3640(including ripper) Operating weight (t)(excluding ripper) 37.2 Engine model NTA855-C360S10 Net power/rated speed (kW/rpm) 235/2000 Ground pressure(Mpa) 0.105 Blade type Straight tilting blade Angle blade Semi-U blade Blade capacity(m3) 10 for straight tilting blade 6.2 for angle blade 11.7 for Semi-U blade Applicable Working Conditions Bulldozing, digging, landfill, and other bulk operations.Afiseaza mai multe
