Deister 8x20

Preţ excl. TVA

Compnay LOGO
Images5
Deister 8x20 Cernuitoare
Deister 8x20 Cernuitoare
Deister 8x20 Cernuitoare
FavoriteFavorit
shareDistribuie
Save searchSalvare căutare
Imprima

INFORMAȚII

Grup de produse
Cernuitoare
Marca /model
Deister 8x20
Anul fabricatiei
2021
Ore de utilizare
24 h
Locatia masinii
Murray, Utah
Tara
Statele Unite ale Americii
Mascus ID
5AC6E252

STABILIREA PRETULUI

Alege moneda

DETALII

Numar de stoc intern
NC000752
Numar de producere
2005663
Alte informaţii

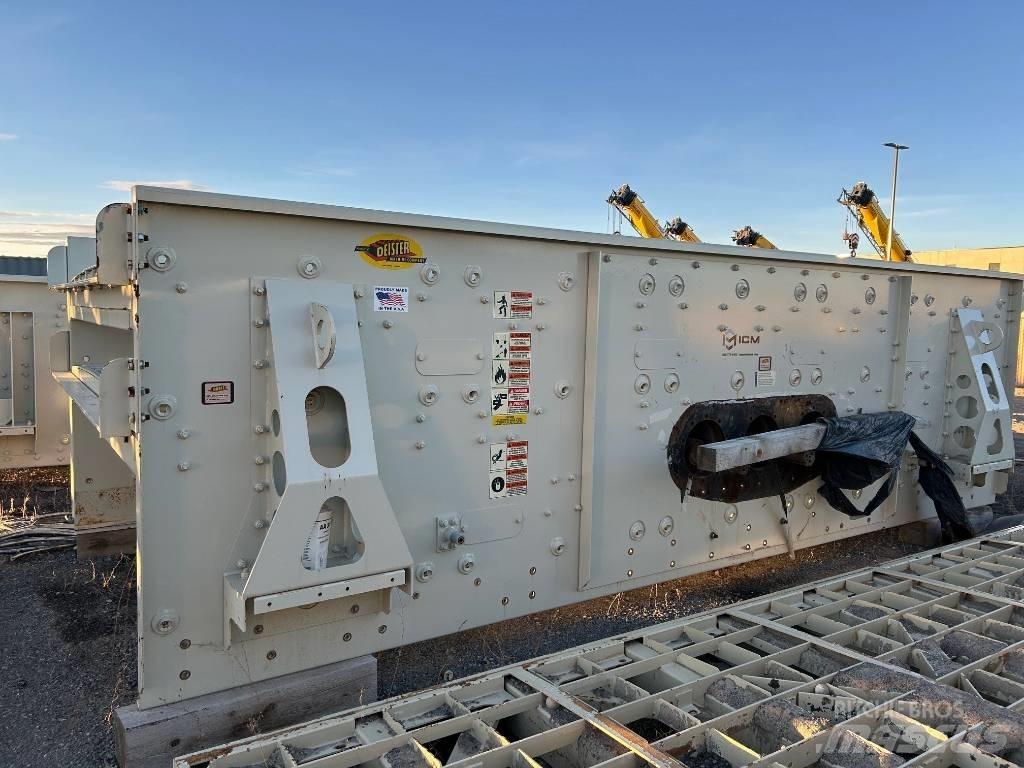

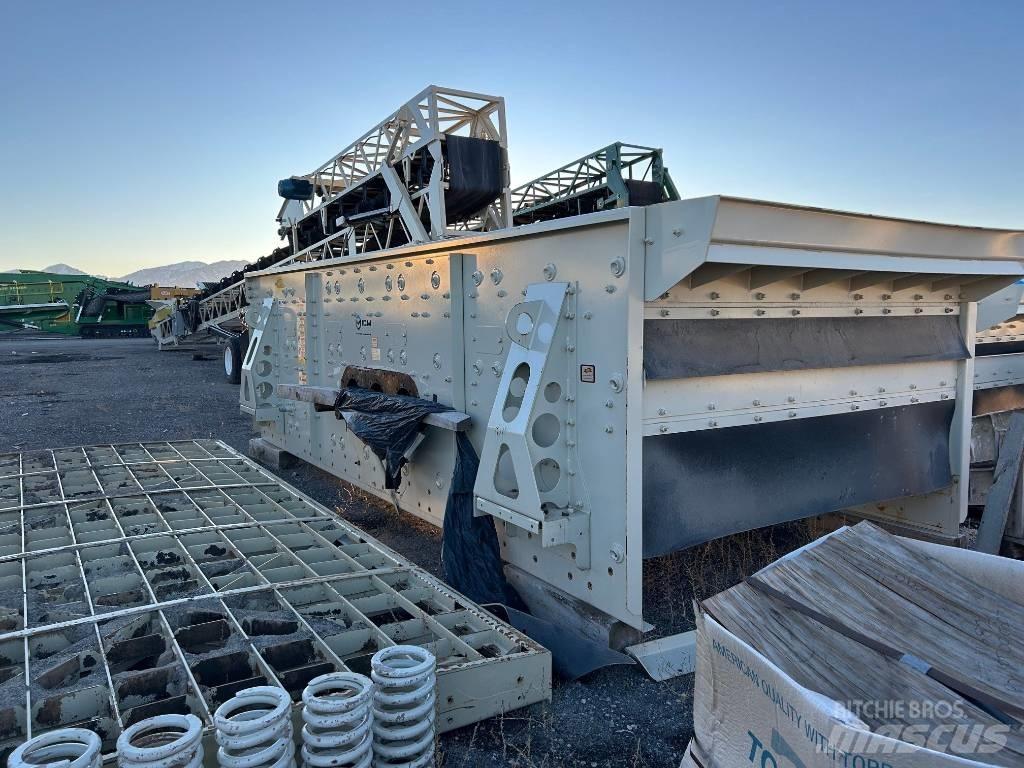

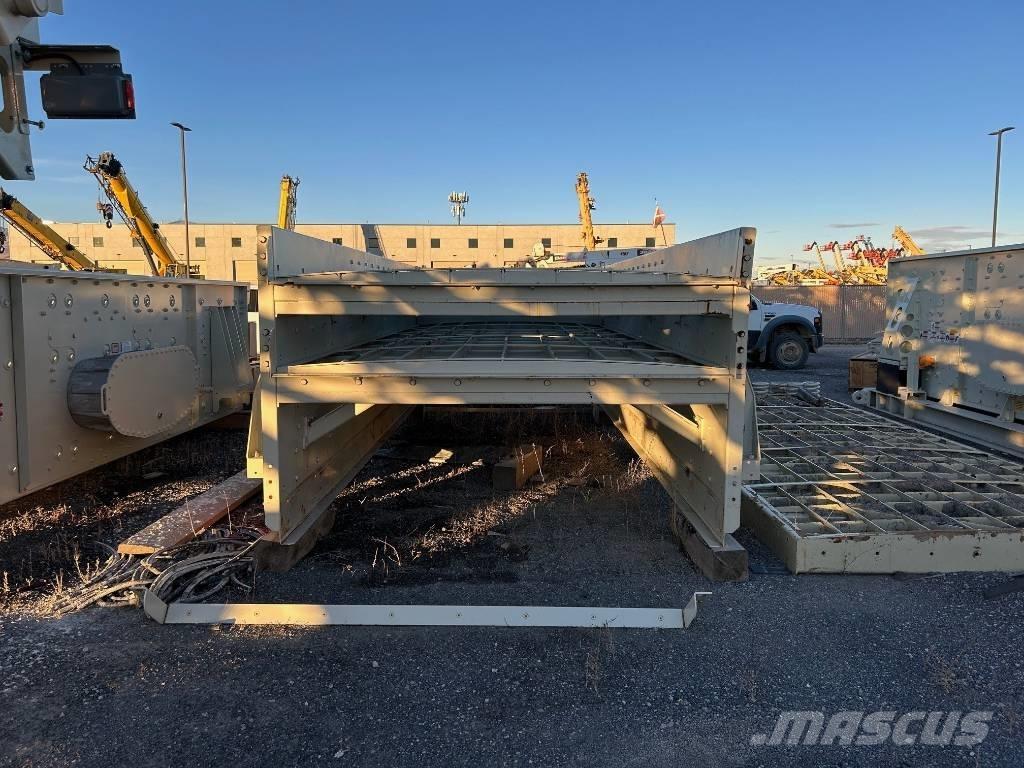

2021 Deister 8x20 3 Deck Horizontal Screen (Type TFM3P-3820) 8X20 3 DECK ONE TYPE TFM3P-3820 1 TRIPLE SHAFTED HORIZONTAL SCREEN 1 VIBRATING FRAME - TRUNNION TYPE 1 SCREEN SUPPORT MOUNT ON EACH 1 CORNER, SNUBBERS (FRICTION CHECK 1 SCREEN 1/4 THICK HSLA STEEL SIDEPLATES 1 FORMED ALONG THE TOP AND BOTTOM 1 WITH 5/16" THICK FORMED HSLA 1 STEEL REINFORCING PLATES BOLTED 1 TO SIDEPLATES BETWEEN BEARING 1 HOUSING AND SIDEPLATES 1 ACCESS PORTS WITH COVER PLATES 1 REMOVABLE BACK PLATES, RUBBER 1 FLAP AND STEEL COMBO 1 SCREEN MEDIA SUPPORT PANEL 1 TOP DECK - SCREEN CLOTH SUPPORT 1 MID DECK - SCREEN CLOTH SUPPORT 1 BOT DECK - SCREEN CLOTH SUPPORT 1 4" LONG DISCHARGE LIPS PROTECTED 1 BY 1/4 THICK AR STEEL REPLACE 1 ABLE WEAR PLATES 1 TENSION PLATES (SKIRTBOARDS) 1 DEISTER HEAVY DUTY TENSION 1 SCREEN CLOTH TENSIONS DEVICE 1 FEED BOX WITH 1/4" AR STEEL 1 REPLACEABLE WEAR PLATE IN THE 1 BOTTOM 1 TRIPLE SHAFT GEAR TYP VIBRATING 1 MECHANISM LOCATED BETWEEN THE 1 MIDDLE AND BOTTOM DECKS WITH 1 120 MM SPHERICAL ROLLER BEARINGS 1 STEEL FLANGED VIBRATING TUBES 1 BOLTED TO THE SIDEPLATES 1 OIL FILL AND DRAIN PLUGS AND 1 THE OIL LEVEL GUAGES LOCATED 1 ACCENTRIC ON THE OUTSIDE SURFACE OF THE 1 VIBRATING MECHANISM END COVERS 1 PLATE 1 DEISTER SLINGER MIST OIL BATH 1 LUBE SYSTEM, 3.5 GALLONS OF OIL 1 SERVICE AT 500 HOURS 1 VIBE MECHANISM TUBE IS PROTECTED 1 BY A 3/8" THICK STEEL BACKED 1 RUBBER SHEILD TACK WELDED TO THE 1 TUBE 1 ECCENTRIC SHAFTS WITH ADJUSTABLE 1 WEIGHTS FOR STROKE ADJUSTMENT 1 BRONZE SLEEVE BETWEEN BEARING 1 AND SHAFT 1 DESITER HEAVY DUTY RUBBER TORSIO 1 DRIVE PIVOTED MOTOR BASE, LESS MOTOR 1 SUPPORT, 5V SECTION WIDEBAND 1 V BELT AND MOTOR SHEAVE 1 LESS THE BELT DRIVE GUARD HORIZONTAL TYPE 1 SCREEN 790 RPM 11/16" STROKE SCREEN MOTOR 60 HP 1800RPM ESTIMATED WIEGHT 24300LBS RUBBER FLAP SPRING PROTECTORS SNUBBER GUARDSAfiseaza mai multe

ICM Solutions

4055 S 500 W 84123 Murray Utah Statele Unite ale Americii
