Metso HP300

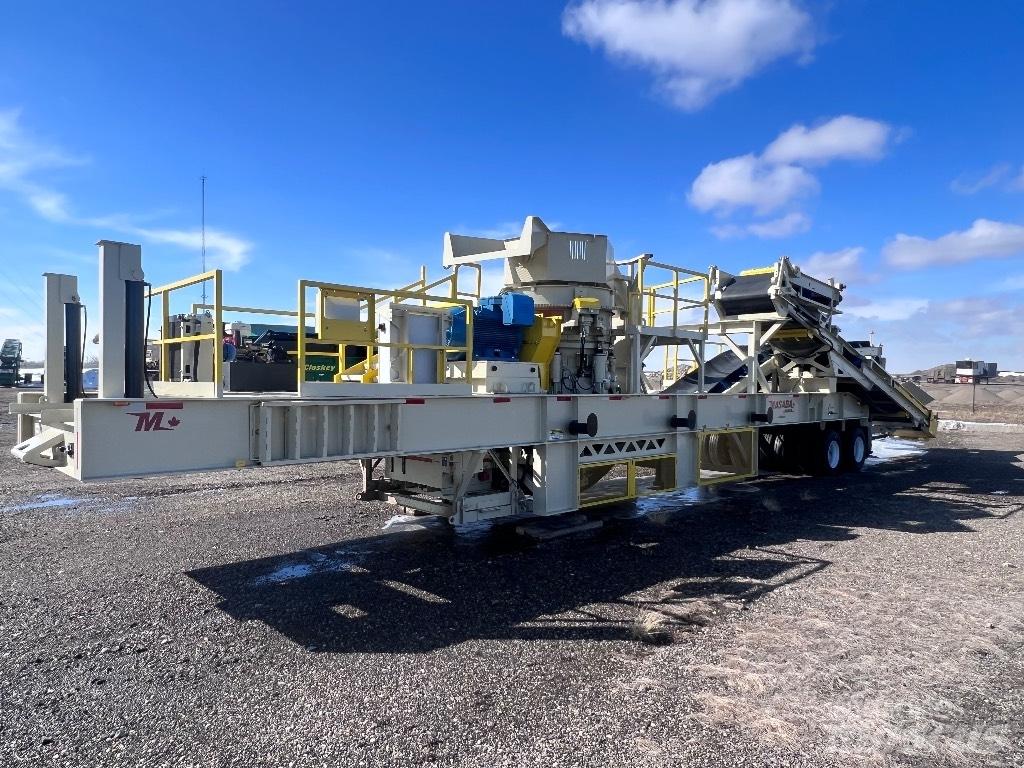

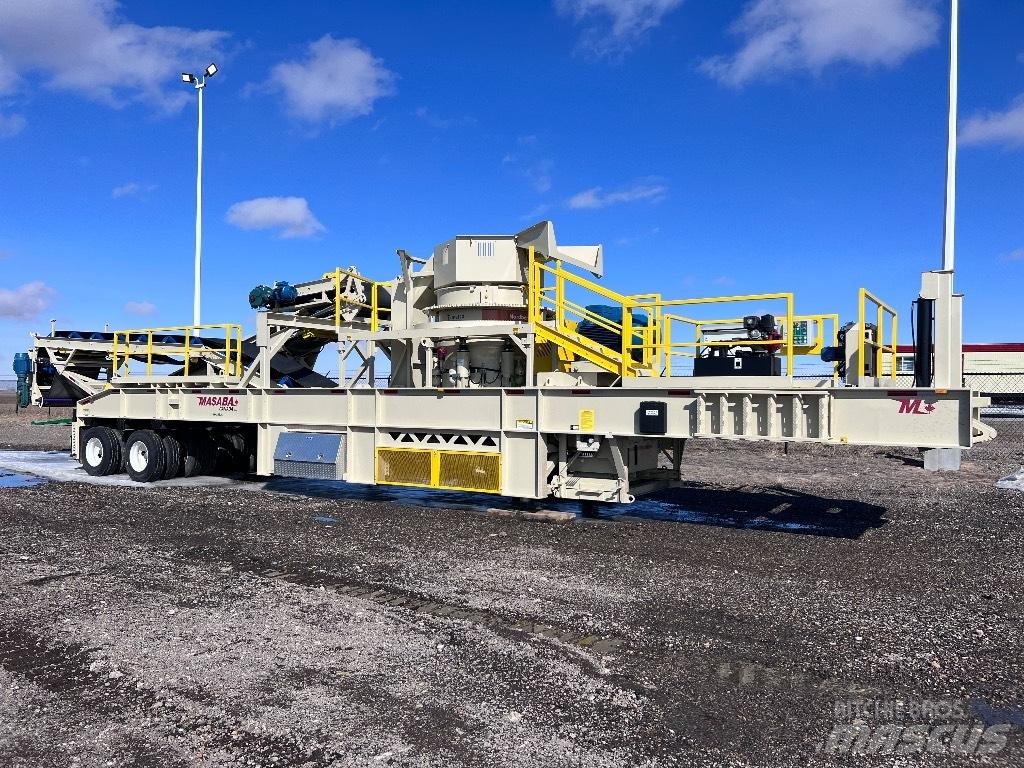

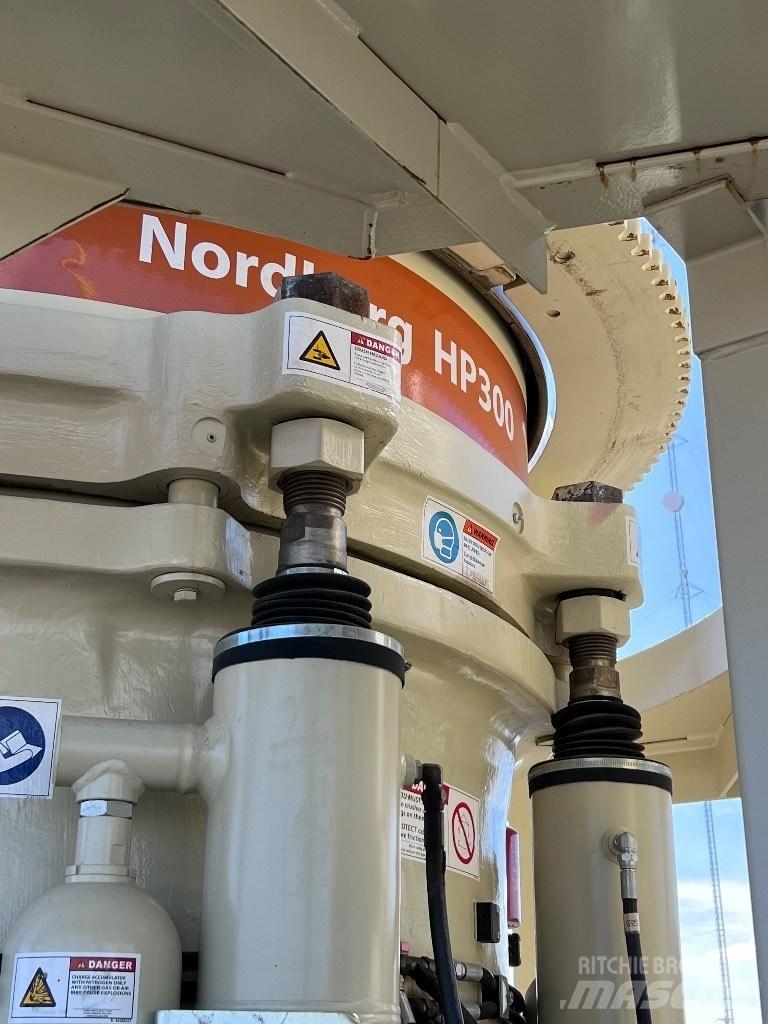

New HP300 Portable Cone Crushing Plant w/ In & Out Conveyor Control Panel Power installed 220 kW (300 HP) Feed size up to 241 mm (9.49 in) with standard extra coarse equipment Crusher weight 15810 kg (33490 lbs.) Main frame assembly with thrust bearing, main shaft, seat liners Adjustment and clamping ring assembly with clamping by rubber oil chamber Overload protection assembly by double-acting cylinders and accumulators Countershaft assembly with shaft, pinion and bushings Fastening assembly o with lock bolt and feed cone for mantle o with bolt square head, and wedge for bowl liner Bowl assembly with adjustment cap and hopper assembly Hydraulic motor and adjustment mechanism assembly for setting Head assembly with bushings and spherical bearing and socket assembly Eccentric assembly with bushing, thrust bearing, gear and counterweight Crusher oil piping assembly and sensor assembly
