Bauer MBF10
Preţ excl. TVA
POA
Imprima
INFORMAȚII
Grup de produse
Consolidare de santuri
Marca /model
Bauer MBF10
Anul fabricatiei
2007
Ore de utilizare
6.750 h
Locatia masinii
Middlesbrough, Cleveland
Tara
Marea Britanie
Nivel general
1
2
3
4
5
Mascus ID
0A3DF58C
DETALII
Numar de stoc intern
PF 40524
Garanție
All of our machines are checked and tested to ensure they are in full working condition when they reach your site – that is the Sigma guarantee.
Tara de productie
Statele Unite ale Americii
Alte informaţii

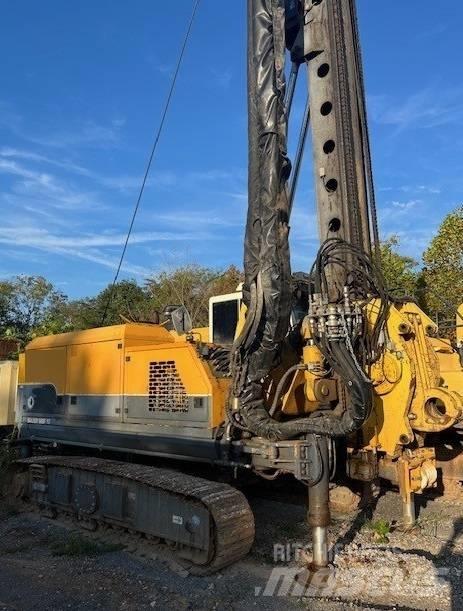

Bottom feed stone column vibro machine with 6750 operating hours
Bauer MBF10 carrier with UW25 undercarriage
Bauer B tronic data logging system
Side dump bucket for CTL
overall height 16m
floor plate width 500mm
overall width 2500-3300mm
crawler length 4200mm
width of track shoes 500mm
traction force (effective) 210kN
Cummins diesel engine (201kW @ 2000rpm, Tier lll)

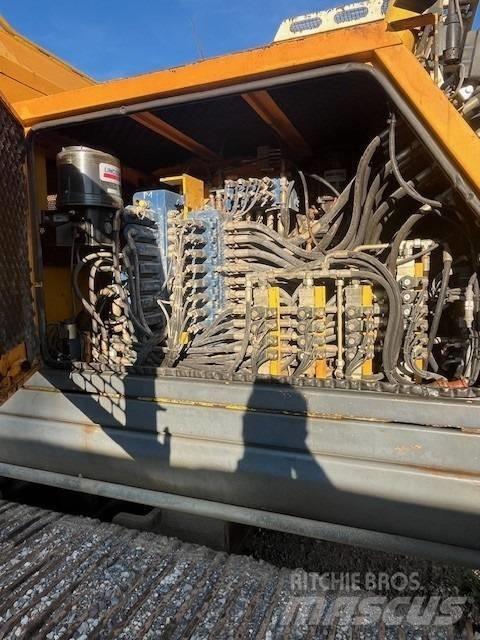

Hydraulic system – hydraulic power output 146kW
oil flow 2 x 150 + 1 x 120L/min
operating pressure 300bar
hydraulic tank 400L
2 x TR17 vibro – max depth 10.1m, centrifugal force 193kN, eccentric moment 1.7kgm, frequency 53Hz
operating weight 39.5T
main winch 125kN (rope diameter 20mm)
auxiliary winch 75kN (rope diameter 16mm)
Ingersoll rand 375/150 air compressor - output 93kW, delivery rate 10.3 cubic metres per minute, delivery pressure 10bar Crowd system – crowd force (push/pull) 125/125kN
Total pull (winch & chain) 225kN.
2 x TR17 vibro lances with hoppers
