Sany STC1000C7

Preţ excl. TVA

Images9Videos2
Sany STC1000C7 Dispozitive de ridicare şi lifturi pentru materiale
Sany STC1000C7 Dispozitive de ridicare şi lifturi pentru materiale
FavoriteFavorit
shareDistribuie
Save searchSalvare căutare
Imprima

INFORMAȚII

Grup de produse
Dispozitive de ridicare şi lifturi pentru materiale
Marca /model
Sany STC1000C7
Anul fabricatiei
2021
Optiuni extra
recondiționat
Tara
China
Nivel general
1
2
3
4
5
Mascus ID
65366E65

STABILIREA PRETULUI

Alege moneda

DETALII

Capacitate maxima de ridicare
100.000 kg
Greutate neta
150.000 kg
Clasa de emisie
Etapa III A
Original colour
Orange and red
Producător de motoare
sany
Dimensiuni transport (Lxlxî)
16.14 m × 30 m × 39.95 m m
Tara de productie
China
Termen de livrare
FOB, CIF
Certificate
EPA, CE, TÜV
Alte informaţii

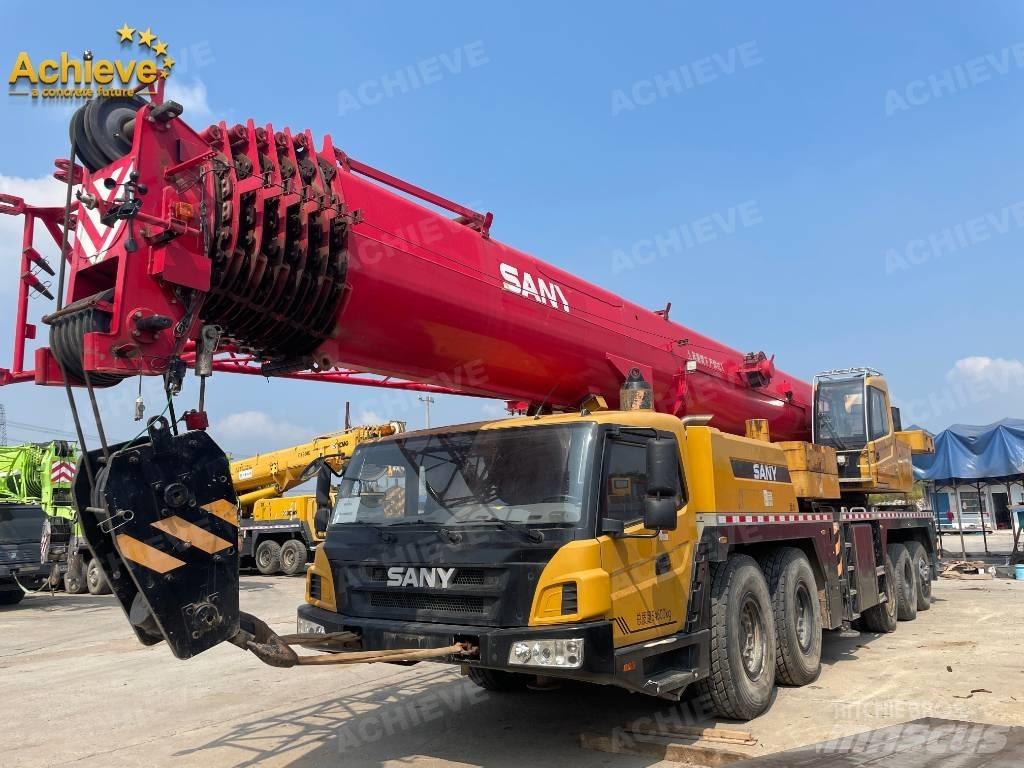

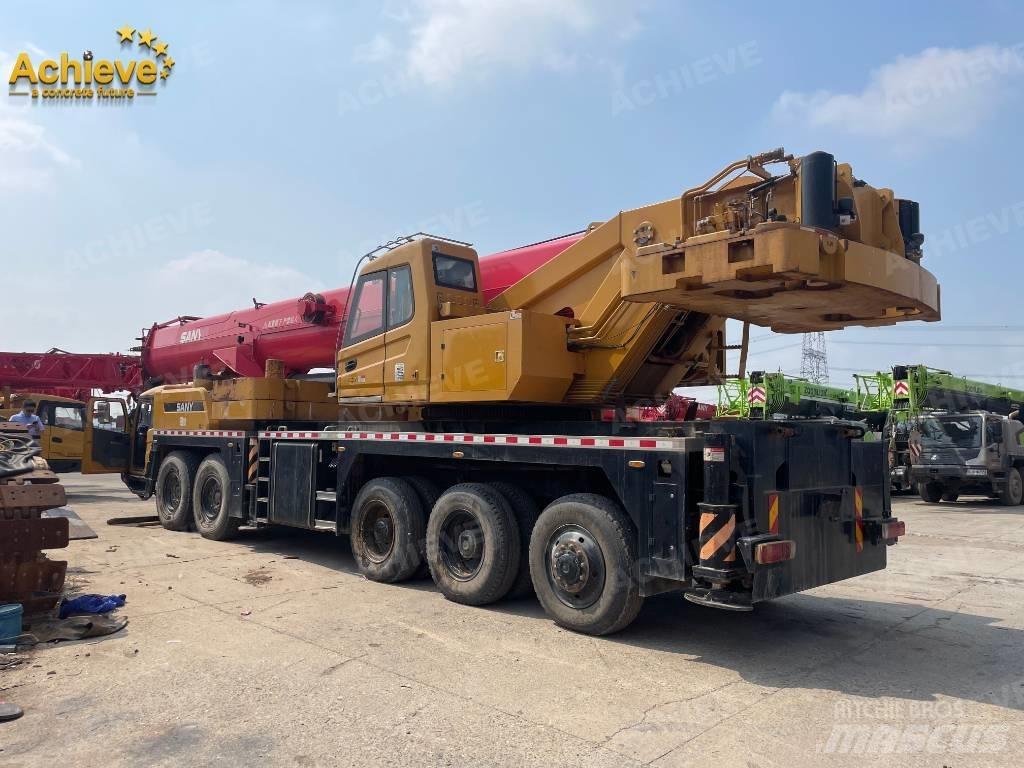

【ACHIEVE】TOP CONDITION!!! 2021 Sany STC1000C7 100 Tons Truck Crane 4057kN·m ●Performance parameters Maximum lifting height 102.5m Maximum lifting moment 4057kN·m Maximum lifting capacity 100t ●Speed ​​Parameters Maximum single rope speed of main winch 135m/min Boom full extension/retraction time 135s Full lifting/lowering time of crane arm 620/640s Maximum rotation speed 0~1.5r/min ●Weight parameters Total weight 54600kg ●Size parameters Machine length 16140mm Full width 3000mm Overall height 3995mm Outrigger span (horizontal x vertical) 8.1(5.35)×7.3m ●Driving parameters Maximum driving speed 80km/h Minimum turning radius 12m Maximum climbing grade 43% Approach Angle 20° Departure angle 17° 100 Tons Truck Crane performances and specialties: ■ Extra large U-shaped cross-section 5-section main boom, with a full main boom extension of 50.5m, and a standard 17.5m jib.Optional 9.5m extension arm, maximum lifting height 78m; ■ H-type low front legs, span 8.3×6.63m, standard 21.5t counterweight, optional 2×2.5t, 2×5.5t side matching; ■ The maximum lifting moment of the basic arm is 3557kN.m (60.5t*6m), and the maximum lifting moment of the fully extended main arm is It weighs 16.5t (12m in width), and the maximum lifting range of the main arm is 44m. ■ Extra large U-shaped cross-section 5-section main boom, with a full main boom extension of 50.5m, and a standard 17.5m As an outstanding representative of the industry's super-heavy-duty models, STC1000C5-8 boasts remarkable advantages in terms of “High energy-conservation, efficiency, reliability, and comfort” compared with industry’s like products and is extensively applicable for earth- moving projects, aggregate yards, municipal constructions, and other bulk material transports. 1. Superior lifting capacity The Oval 2.0 version has a compact, large-section 7-section main boom, with the circumference of the last section increased by 7.1%. The main boom is fully extended to 75.5m, with a standard 17.5m jib and an optional 9.5m extension boom, with a maximum boom length of 102.5m.8.1m horizontal outrigger span, standard counterweight 41t, optional 2×2.5t, total 46t, retractable, 550mm, leading hoisting capacity; The maximum lifting torque of the basic arm is 4057kN.m (69t*6m), the maximum lifting weight of the fully extended main arm is 8.1t, and the maximum lifting range of the main arm is 64m. additional equipment. 2. Humanized control system The new "Lingzhi" has two cabins, a 20° reclining control cabin, a new comfortable seat, a forward and backward movement distance of 150mm, a reclining angle of 140°, and a 20% increase in boarding operating space. The track-changing sliding door is easy to open and close, and the sliding pedal and folding front pedal make it easy to get in and out. It has a new interior design, a new multi-channel three-dimensional air supply design, a new soft interior, a panoramic sunroof, an adjustable seat and other humanized designs, an electric wiper, and a standard winch monitoring system, making operation more comfortable and easy.The cab is equipped with high-definition LCD instrument cluster, multi-function steering wheel, air suspension seat, double co-pilot and other humanized designs; Intelligent power distribution and control: dedicated battery compartment, intelligent power distribution and control of the whole vehicle; An integrated maintenance staircase is installed on the right side of the turntable, providing a maintenance channel for the winch and the boom, while leaving more loadable space for the chassis. The winch wire rope with a quick-segment anti-rotation feature has a higher rate of replacement efficiency, and the quick-change double-hook hook (anchor hook) has more heavy-load hanging ropes and more uniform force. SMART HYDRAULICSOMPACT DESIGN Larger flow ensures higher efficiency, like higher speed of wire rope reeling. Shunted mode of independently controlled combined motions realizes higher stability, like simultaneousAfiseaza mai multe

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 China
