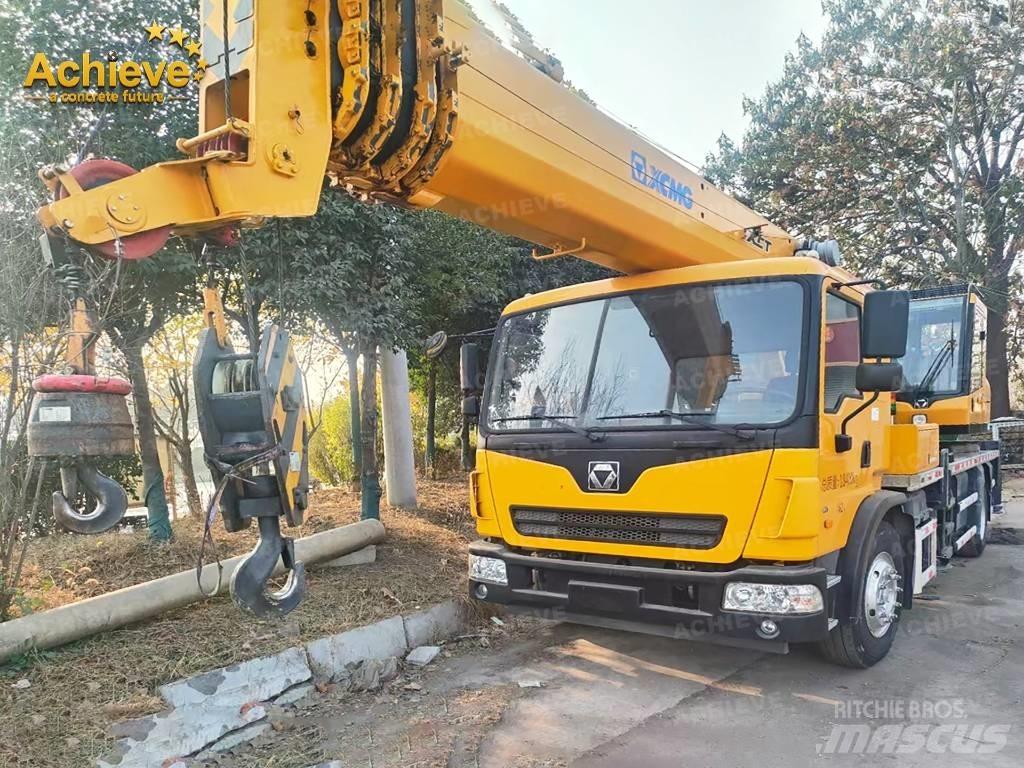

XCMG XCT12L5
Preţ excl. TVA
6
2
Favorit
Distribuie
Salvare căutareImprima
INFORMAȚII
Grup de produse
Dispozitive de ridicare şi lifturi pentru materiale
Marca /model
XCMG XCT12L5
Anul fabricatiei
2022
Ore de utilizare
1.248 h
Optiuni extra
recondiționat,demo
Tara
China
Nivel general
1
2
3
4
5
Mascus ID
BA9F24BF
STABILIREA PRETULUI
Alege moneda
DETALII
Înaltime maxima de ridicare
25 m
Capacitate maxima de ridicare
12.000 kg
Numar de producere
XCT12L5
Greutate neta
16.000 kg
Clasa de emisie
Etapa III A
Original colour
yellow
Dimensiuni transport (Lxlxî)
1090025003.55 m
Tara de productie
China
Termen de livrare
FOB, CIF
Certificate
EPA, CE, TÜV
Alte informaţii
Category
Item
Unit
XCT12L4
Dimension
Overall length
mm
10900
Overall width
mm
2500
Overall height
mm
3550
Weight
Total weight in travel
kg
16000
Travel
Max. travel speed
km/h
90
Min. turning diameter
m
18
Min. ground clearance
mm
250
Approach angle
°
21
Departure angle
°
13
Max. grade ability
%
41
Fuel consumption for 100km
L
25
Main performance
Max. rated total lifting capacity
t
12
Min. rated working radius
m
3
Turning radius at turntable tail
m
2.57
Max. lifting torque
kN.m
482.5
Base boom
m
9.5
Max.main boom
m
30.9
Max.main boom+jib
m
38.1
Turning radius at turntable tail
Counterweight
mm
2570
Auxiliary winch
mm
2910
Max. load moment
Base boom
t.m
48.25
Fully-extended boom
t.m
27.6
Outrigger span(fully-extended)
Longitudinal
m
4.57
Hoist height
Lateral
m
5.5
Base boom
m
9.5
Fully-extended boom
m
30.9
Boom length
Fully-extended boom + Jib
m
38.1
Base boom
m
9.45
Fully-extended boom
m
30.5
Fully-extended boom + Jib
m
30.5+7
