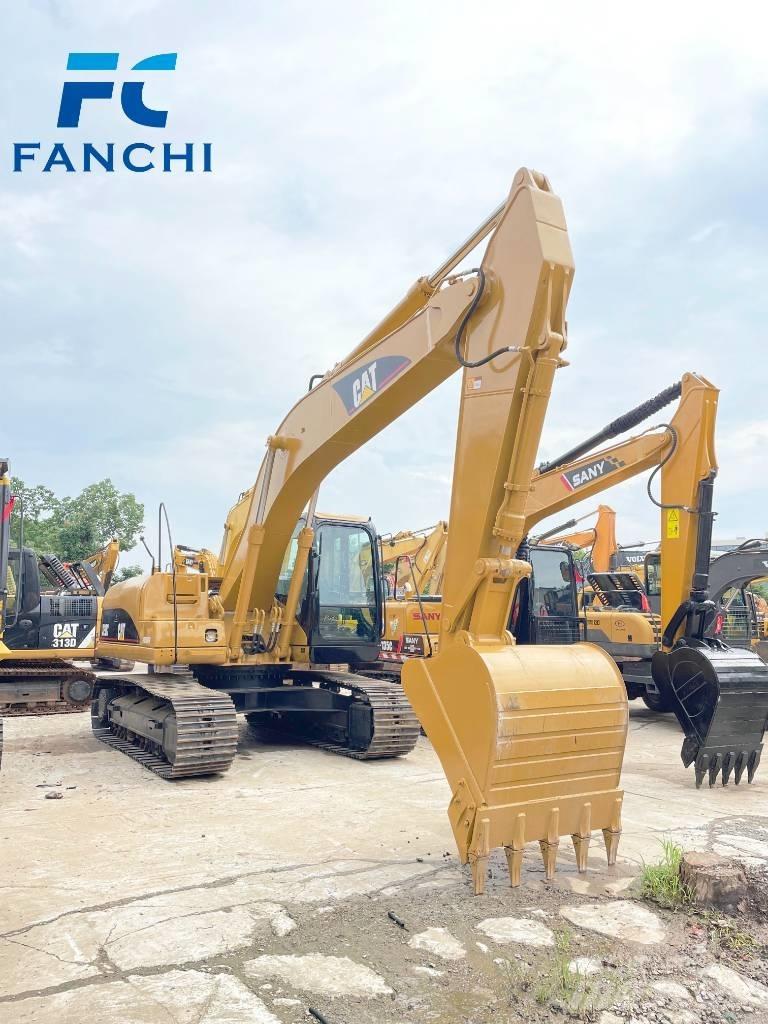

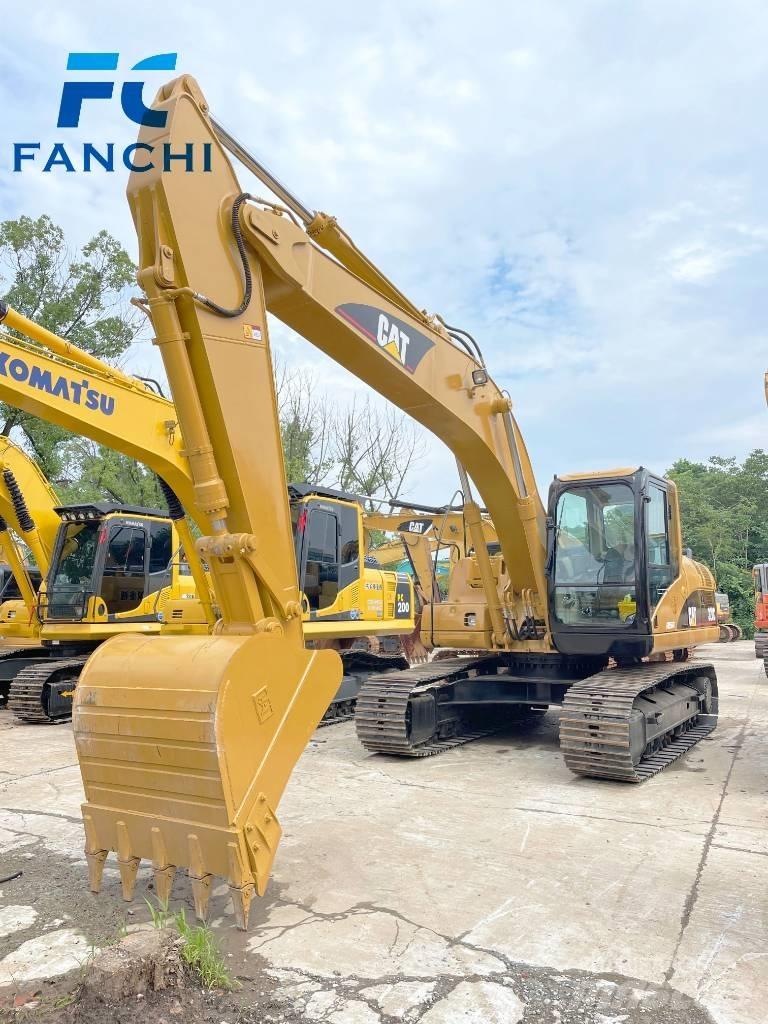

CAT 320 C

All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.

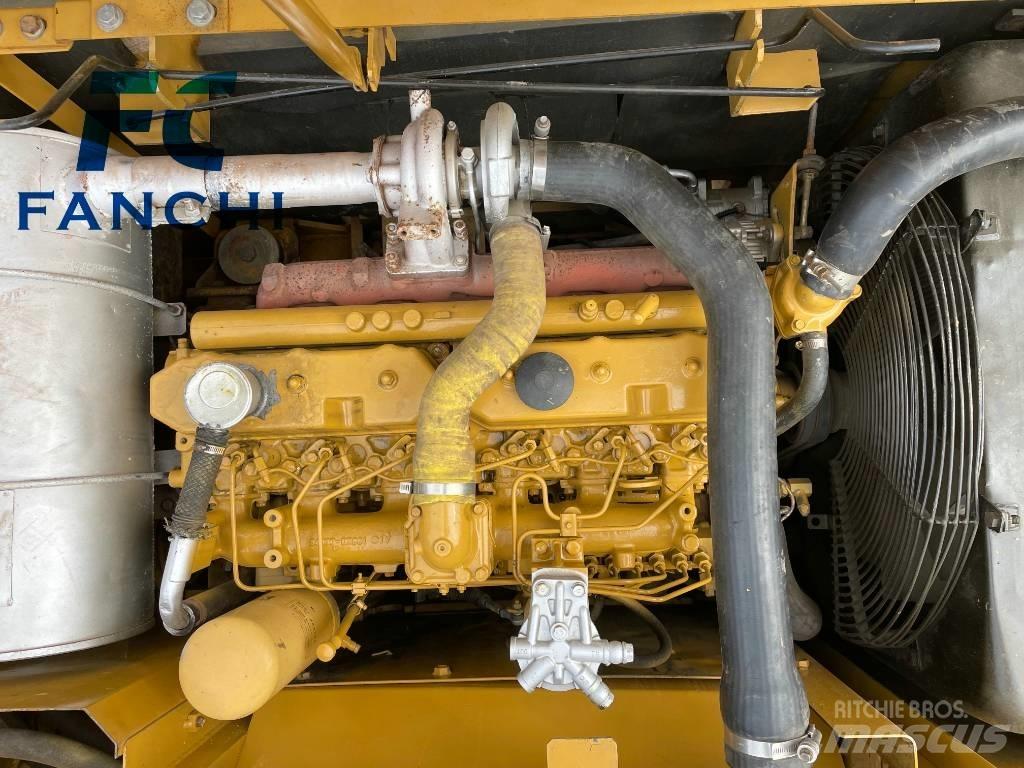

The Caterpillar Cat320C is a classic medium-sized crawler excavator. Here are some of its common parameter details: General Specifications - Operating weight of the whole machine: Approximately 20,000 kg - Standard bucket capacity: 0.9 - 1.25 m³ Engine - Model: Cat C6.4 - Rated power: Approximately 121 kW (162 hp) / 2000 rpm - Fuel tank capacity: Approximately 454 L - Coolant capacity: Approximately 40 L - Engine oil capacity: Approximately 30 L Performance Parameters - Maximum digging radius: Approximately 9.9 m - Maximum digging depth: Approximately 6.6 m - Maximum unloading height: Approximately 6.7 m - Gradeability: 70% (35°) Travel System - Track shoe width: 600 mm or 750 mm - Gauge: Approximately 2.5 m - Ground pressure: Approximately 45 - 50 kPa Hydraulic System - Main pump type: Variable displacement axial piston pump - System pressure: Approximately 32.4 MPa - Pilot system pressure: Approximately 3.9 MPa - Swing hydraulic motor: Axial pisto
