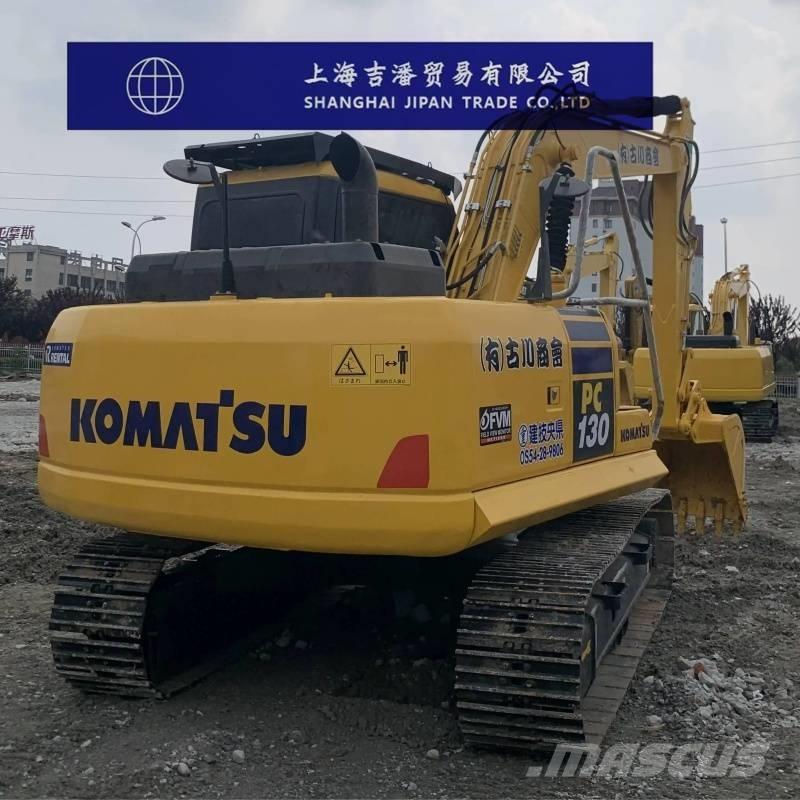

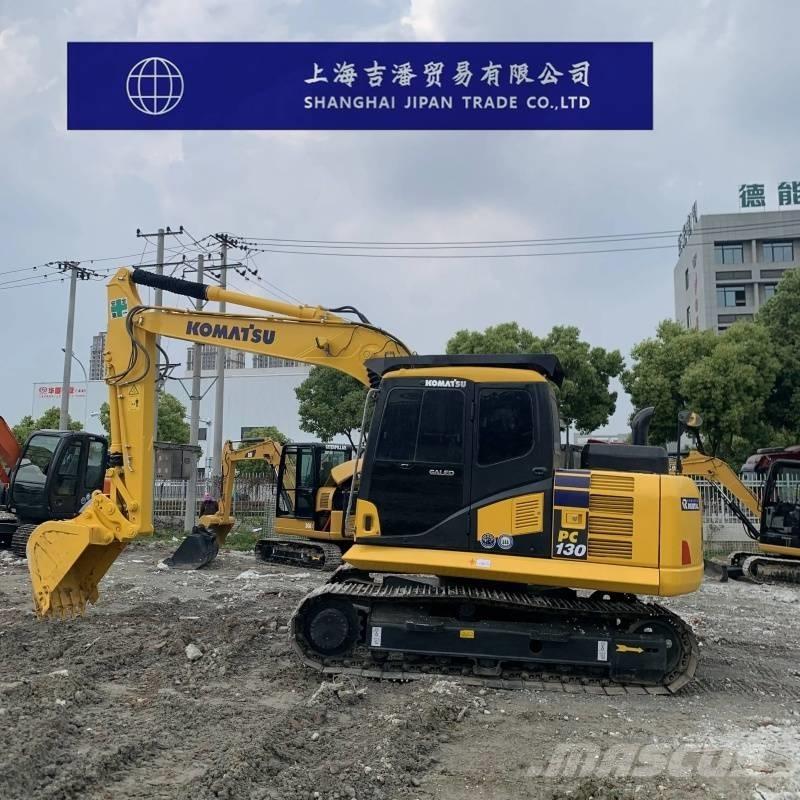

Komatsu PC 130
Preţ excl. TVA
Imprima
INFORMAȚII
Grup de produse
Excavatoare pe șenile
Marca /model
Komatsu PC 130
Anul fabricatiei
2025
Ore de utilizare
550 h
Tara
China
Nivel general
1
2
3
4
5
Mascus ID
81084406
STABILIREA PRETULUI
Alege moneda
DETALII
Numar de stoc intern
1
Tip putere
Diesel
Numar de producere
1
Număr de proprietari anteriori
1
Ultima inspectie
2025-08-25
În condiții de transport
good condition
Motor
Original
Greutate neta
12.500 kg
Putere Motor
69,6 kW (94,6 hp)
Producător de motoare
Komatsu
Registration number
1
Clasa de emisie
Etapa V
Capacitate piston
0,64 m3
Ecartament
600 mm
Viteză maximă
5,50 km/h
Dimensiuni transport (Lxlxî)
7590 x 2490 x 2885 mm
Original colour
Yellow
Dipper / stick length
2.500 mm
Garanție
1 year
Tara de productie
Japonia
Termen de livrare
FCA, FOB, CIF, EXW
Certificate
EPA, CE
Atasamente
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET
TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET
CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours:24 hours, holidays and Sundays
Contact: Lily
Whatsapp: +86 17756597429
Mobile:+86 17756597429
Wechat:17756597429
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accesorii
valva de siguranta de baza
valva de siguranta a excavatorului
Aer conditionat
Prefiltru motor
cupa schelet
rotatie far
extra echipament
control de la joystic
excavator normal de sapare
Alte informaţii
Komatsu PC130-8M0 Excavator Parameter Configuration
specification
Power: Traditional power
Joint ventures/imports
Bucket backhoe
Tonnage (tons) 13
The working weight of the whole machine (kg) is 12500
Bucket capacity (m³) 0.53-0.64
Boom length (mm) 4600
Stick length (mm) 2500
performance
Rotational speed (rpm) 9.5
Travel speed (km/h) 5.5/2.9
Climbing ability (%) 70
Grounding specific pressure (Kpa) 40
Bucket digging force (kN) 86
The digging force (kN) of the stick is 72.9
Maximum traction (kN) 122.6
dynamical system
Engine model Komatsu SAA4D95LE-5
Rated power (kw/rpm) 69.6/2200
Displacement (L) 3.26
Number of cylinders (units) 4
Bore × stroke (mm) 95×115
Cooling method: Water cooling
Working form: four-cylinder, four-stroke turbocharged intercooled direct injection engine
Hydraulic system
Main pump type variable piston pump
The maximum flow rate of the main pump (l/min) is 242
Working hydraulic oil circuit (Mpa) 31.9
Traveling Hydraulic Circuit (Mpa) 34.8
Slewing Hydraulic Circuit (Mpa) 29.2
Boom cylinder - number × bore × stroke (mm) 2-105×995
Bucket cylinder - number × bore × stroke (mm) 1-115×1175
Bucket cylinder - number × bore × stroke (mm) 1-90×885
Oil capacity
Fuel tank (L) 247
Hydraulic Tank (L) 90
Engine oil change volume (L) 13
Coolant (L) 13.9
Body size
Total length of transport (mm) 7590
Total Transport Width (mm) 2490
Total height of transport (mm) 2885
Boarding width (mm) 2500
Track grounding length (mm) 2880
Total track length (mm) 3610
Track shoe width (mm) 500
Total Track Width (mm) 2490
Track gauge (mm) 1990
Counterweight ground clearance (mm) 895
Minimum ground clearance (mm) 400
The minimum turning radius of the front working device (mm) is 2450
Rear end turning radius (mm) 2190
Number of support wheels (one side) (pcs) 1
Number of track shoes (single side) (pcs) 43
Number of support wheels (unilateral) (pieces) 7
Scope of work
Maximum digging radius (mm) 8290
The maximum excavation radius of the stopping surface (mm) is 8170
Maximum digging depth (mm) 5520
Maximum digging height (mm) 8650
Maximum unloading height (mm) 6210
Maximum vertical digging depth (mm) 4900
