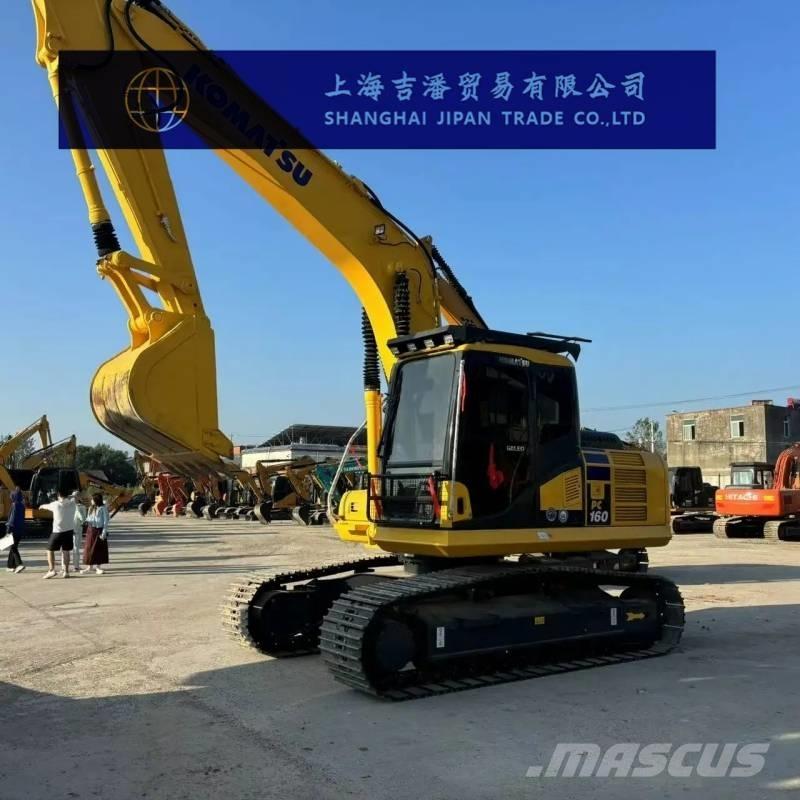

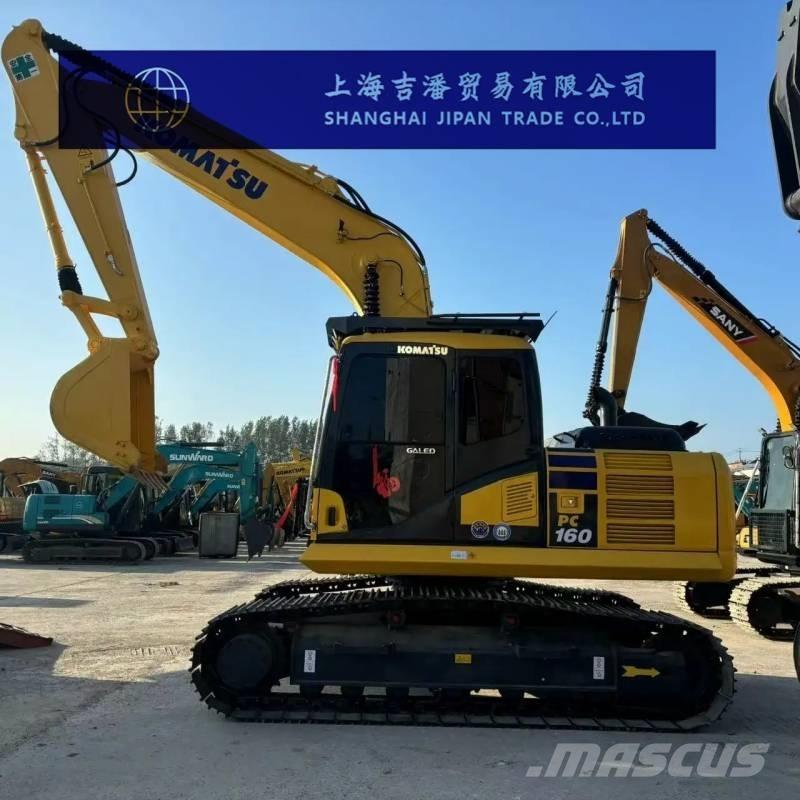

Komatsu PC 160

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Komatsu PC160LC-8 excavator parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 16 The working weight of the whole machine (kg) is 16700-17140 Bucket capacity (m³) 0.65 Boom length (mm) 5150 Stick length (mm) 2610 performance Rotation speed (rpm) 12 Travel speed (km/h) 3.4-5.5 Climbing ability (%) 70 Bucket digging force (kN) 122.6 Stick digging force (kN) 86.3 Maximum traction (kN) 156.4 dynamical system Engine model Komatsu SAA4D107E-1 Rated power (kw/rpm) 85/2200 Displacement (L) 4.46 Number of cylinders (units) 4 Bore × stroke (mm) 107*124 Cooling method: Water cooling Hydraulic system Main pump type variable piston pump The maximum flow rate of the main pump (l/min) is 312 Pilot oil circuit (MPa) 3.2 Working hydraulic oil circuit (Mpa) 34.8 Travel Hydraulic Circuit (Mpa) 37.3 Slewing hydraulic circuit (Mpa) 28.9 Boom cylinder - number × bore × stroke (mm) 2-110*1175 Bucket Cylinder - Number of Pieces× Bore × Stroke (mm) 1-120*1342 Bucket cylinder - number × bore × stroke (mm) 1-105*1027 Oil capacity Fuel tank (L) 280 Hydraulic Tank (L) 190 Engine oil change volume (L) 17.9 (16) Coolant (L) 18.5 Body size Total length of transport (mm) 8565 Total Transport Width (mm) 2490 Total height of transport (mm) 3015 Track grounding length (mm) 3170 Total track length (mm) 3965 Track shoe width (mm) 500 Total Track Width (mm) 2490 Track gauge (mm) 1990 Minimum ground clearance (mm) 440 Counterweight ground clearance (mm) 1055 The minimum turning radius of the front working device (mm) is 2990 Rear end slewing radius (mm) 2390 Number of support wheels (unilateral) (pieces) 7 Number of support wheels (one side) (pcs) 2 Number of track shoes (single side) (pcs) 44 Scope of work Maximum digging radius (mm) 8960 The maximum excavation radius of the stopping surface (mm) is 8800 Maximum digging depth (mm) 5960 Maximum digging height (mm) 8980 Maximum unloading height (mm) 6370 Maximum vertical digging depth (mm) 5040
