Liebherr LTM 1200

Preţ excl. TVA

POA

Compnay LOGO
Images16

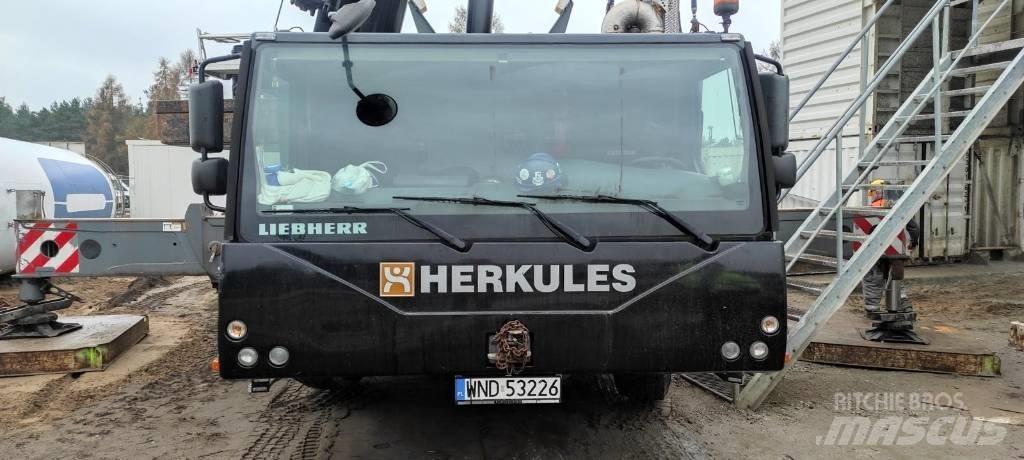

Liebherr LTM 1200 Macara pentru orice teren
Liebherr LTM 1200 Macara pentru orice teren
Liebherr LTM 1200 Macara pentru orice teren
FavoriteFavorit
shareDistribuie
Save searchSalvare căutare
Imprima

INFORMAȚII

Grup de produse
Macara pentru orice teren
Marca /model
Liebherr LTM 1200
Anul fabricatiei
2016
Locatia masinii
Warszawa, mazowieckie
Tara
Polonia
Mascus ID
8D80B15A

DETALII

Numar de producere
093827
Registration number
WND53226
Termen de livrare
EXW
Alte informaţii

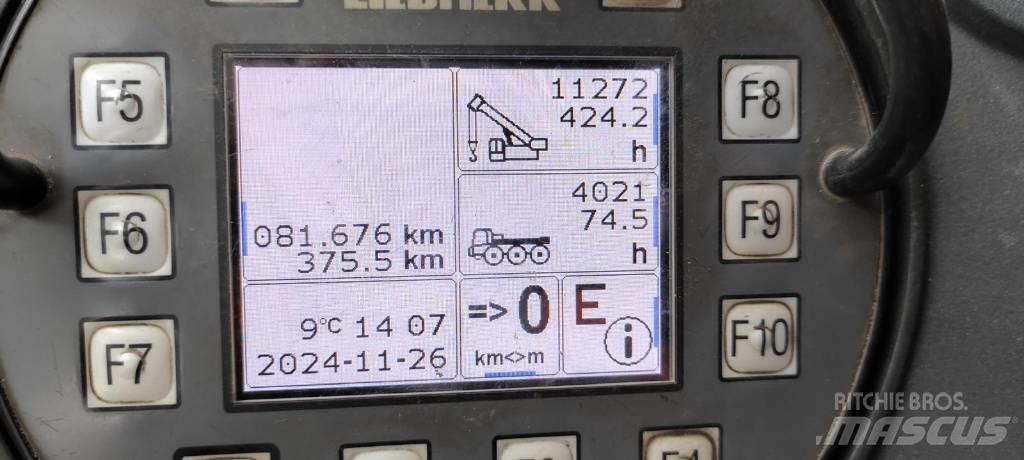

Liebherr LTM 1200-5.1 (Y.O.M. 2016) Warsaw 26.11.2024 TELESCOPIC MOBILE CRANE - LIEBHERR type LTM 1200-5.1 (Capacity max. - 200t; maximum load torque - 657tm.) Year of production: 2016 Serial No.: 093827 Registration plates: WND 53226 Mileage: 81 676 km Worked: (as for 26.11.2024) // chassis: 4 021 mth // superstructure: 11 272 mth Crane chassis: 5-axle Liebherr chassis with hydropneumatic suspension and NIVEUMATIK level control, 370 kW (503 hp) LIEBHERR-Dieselmotor, exhaust emissions according to 97/68 / EG stage IV and EPA / CARB Tier 4-final, automated transmission, dual-range transfer gear, 10 x drive 6, tires 445/95 R 25 (1.600 R 25), 2-circuit ZF steering with active turning of the rear axle, all steering wheels, so-called Crab steering, 2-circuit air-assisted braking system, disc brakes. Maintenance-free axles, cardan shafts and suspension cylinders. Spacious, fully primed driver's cabin with engine independent heater (with timer), air-condition & CD radio. Hydraulic supports with permanently attached supporting plates. Electronic tilt indicator and automatic leveling. Highlighting of the places of support. Reversing acoustic signal. Rear maneuvering coupler. Immobilizer. Crane body: Roller rim, central lubrication system, 180 kW (245 hp) LIEBHERR-Dieselmotor diesel engine, exhaust emissions according to 97/68 / EG stage IV and EPA / CARB Tier 4-final. Hydraulic system with two axial-piston pumps with electronic power control, for the stork and telescope with an open hydraulic circuit, one axial-piston pump each for the winch and rotation in a closed hydraulic circuit, electro-hydraulic crane control, oil cooler. 6-section boom 15.5m - 72m with TELEMATIK quick telescopic system. The operator's cabin is galvanized and powder coated, with independent heating with a time sensor and a CD radio, tilted 20⁰ to the rear. 72 t of ballast, automatic ballasting from the operator's cabin. Safety devices, LICCON overload protection with electronic tilt indicator and standard software, service diagnostics system, LICCON – Lift Planner, anemometer, warning lights for air traffic. Standard crane acceptance tests. Varnishing: 2 colors WORK EQUIPMENT: - Double lattice-type, swing-away jib 12.2m - 22.0m, mounted at an angle of 0⁰ / 22.5⁰ / 45⁰ - 71 t pulley, 3 sheaves, double hook - Block 31.2t, 1 sheave, straight hookAfiseaza mai multe

Herkules S.A.

ul. Annopol 5 03-236 Warszawa Mazowieckie Polonia
