Capacitate maxima de ridicare
82.000 kg
Înaltime maxima de ridicare
6.706 cm
Atasamente
https://freecranespecs.com/Link-Belt/HC-218
Alte informaţii

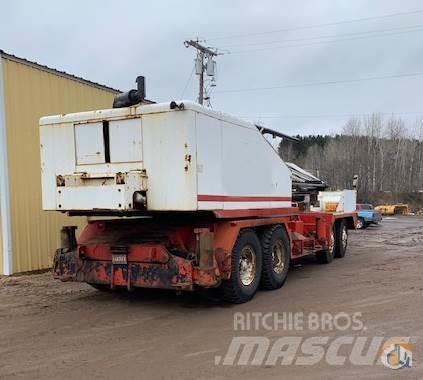

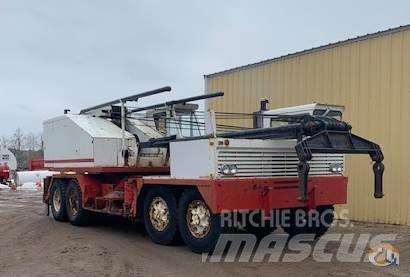

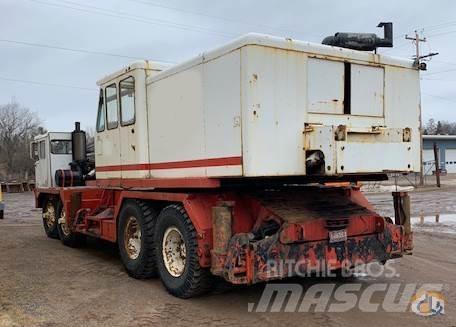

1973 Link-Belt HC218, 82.5 Ton Lattice Boom Truck; CranesList ID: 318,
220' Main Tubular Boom
Consisting of 1 x 20' Base, 1 x 10' insert, 1 x 20' insert, 5 x 30' with 1 x 20' Open Throat Tip -
SUBJECT TO FINAL CONFIRMATION DURING TIME OF INSPECTION,
60' Jib
Consisting of 1 x 30' Basic, 2 x 15' Inserts Offsetable at 0, 15, 30 degrees,
Detroit 6-71N, Six Cylinder, 165 HP Diesel Engine Up,
Single Stage Torque Convertor,
Main and Auxiliary Winches with 3/4" wire rope,
Boom Angle Indicator, Drum Rotation Indicator, Power Load Lowering on both,
Hook Block and Ball,
21,000# A Upper Counterweights,
11' Wide Link-Belt 8 x 4 Carrier,
Detroit 8V-71TN, Eight Cylinder, Two Cycle, 280 HP Diesel Engine
,
Eaton Fuller Roadranger RTO-915 15 Speed Forward and 3 Reverse Transmission, with Two Speed direct and low Auxiliary,
Front and Rear Tires:
14:00 X 24J 18 Ply with 75% Left,
Heaters up and down,
10,800# Bumper Counterweight,
Full width, double box Hydraulic outriggers,
Storage Bins,
Bridge Crane,
Ready To Go To Work,
Seller-vendor is thought to be second owner of the crane,
Seller-vendor has lowboy and will quote freight to buyer's location,
4,077 hours
thought to be original,
9,532 Miles
thought to be original,
Current Annual Inspection,
... IN MICHIGAN!
