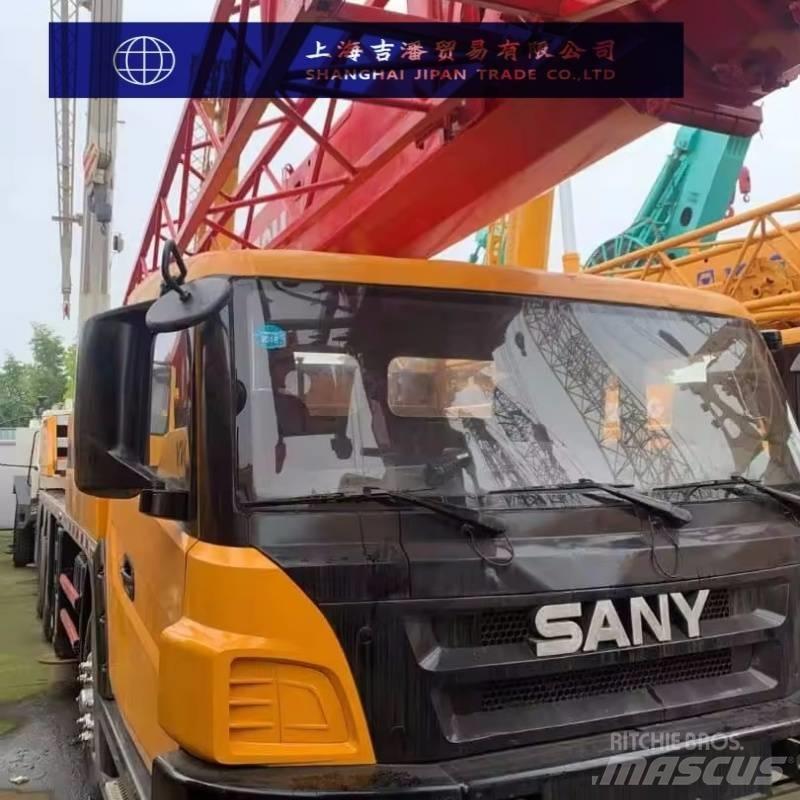

Sany STC 250 H
Preţ excl. TVA
POA
Imprima
INFORMAȚII
Grup de produse
Macara pentru orice teren
Marca /model
Sany STC 250 H
Anul fabricatiei
2017
Ore de utilizare
5.461 h
Tara
China
Nivel general
1
2
3
4
5
Mascus ID
64D9F664
DETALII
Ultima inspectie
2025-06-10
Număr de proprietari anteriori
1
Greutate neta
31.800 kg
Capacitate maxima de ridicare
25.000 ton
Max lifting capacity at end of jib
25.000 ton
Lungimea minimă a brațului
15 m
Clasa de emisie
Etapa V
Boom length
14 m
Lungimea minimă a brațului cu înclinare reglabilă
14 m
Luffing jib
14 m
Jib length of crane
14 m
Înaltime maxima de ridicare
40 m
Hook height of crane - horizontal jib
15 m
Hook height of crane - luffed jib
15 m
Upper hours
857 h
Tipul macaralei
Braţ hidraulic
Original colour
original
Carrier engine
4 t
Producător de motoare
original
Dimensiuni transport (Lxlxî)
12700 x 2490 x 3460 mm
Tip portbagaj
Cu senile
Garanție
1 year
Calitate cauciucuri fata
98%
Condiţia anvelopelor anterioare
2
Certificate
EPA, CE
Atasamente
Fly Jib ,Hook ,Counter Weight, ETC.
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Nina
Whatsapp: +86 18055199047
Mobile:+86 18055199047
Wechat:18055199047
Email:
Fly Jib ,Hook ,Counter Weight, ETC.
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accesorii
Hook blocks
Alte informaţii
基本参数
整机尺寸:长 12.7 米、宽 2.49 米、高 3.46 米
整机总质量:33000kg
额定起重量:25 吨
最小工作幅度:3.0m
行驶参数
最高行驶速度:80km/h
最大爬坡度:30%
接近角:17°
离去角:12°
最小转弯直径:11m
最小离地间隙:220mm
制动距离:10m
发动机参数
配备发动机型号:东风康明斯 ISLe290 30、潍柴 WP10.270、上柴 SC8DK280Q3 及 SC8DK260Q3 等多款发动机,供客户选择。
起重臂参数
主臂长度:全伸主臂长 39.5m,六边形截面,吊臂材料为 HG785 和 HG70 钢板
副臂长度:8m
副臂安装角:0°、15°、30°
基本臂最大起重力矩:980kN·m
最长主臂最大起重力矩:470kN·m
作业速度参数
主卷扬最大速度:125m/min
副卷扬最大速度:125m/min
起重臂起幅 / 落幅时间:45/70s
起重臂全伸 / 全缩时间:105/120s
水平支腿伸 / 缩时间:30/25s
垂直支腿伸 / 缩时间:35/30s
回转速度:2.5r/min
支腿参数
支腿跨距(纵向 × 横向):6.2×5.3m
