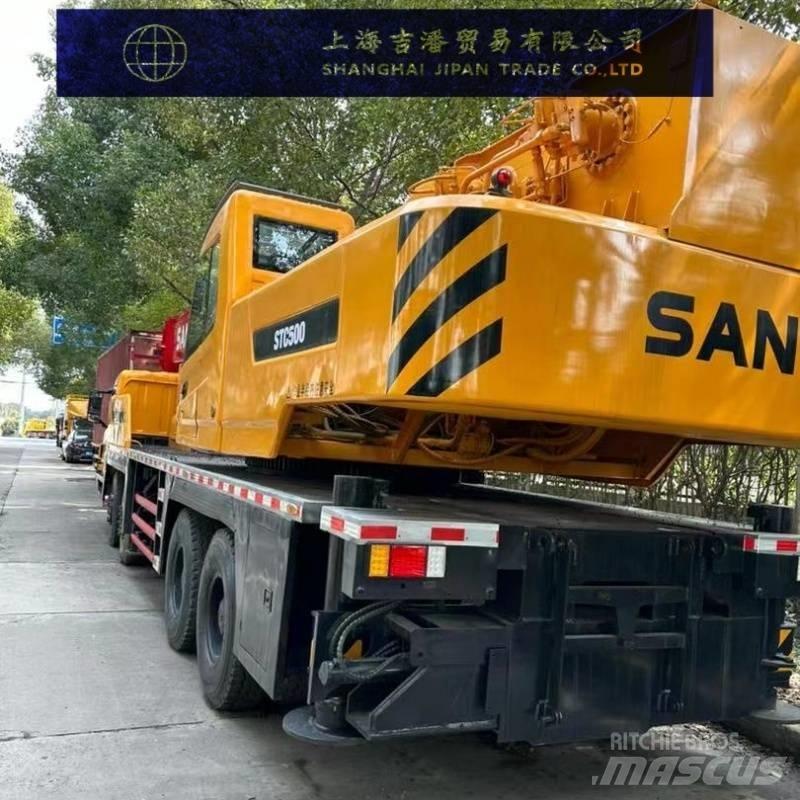

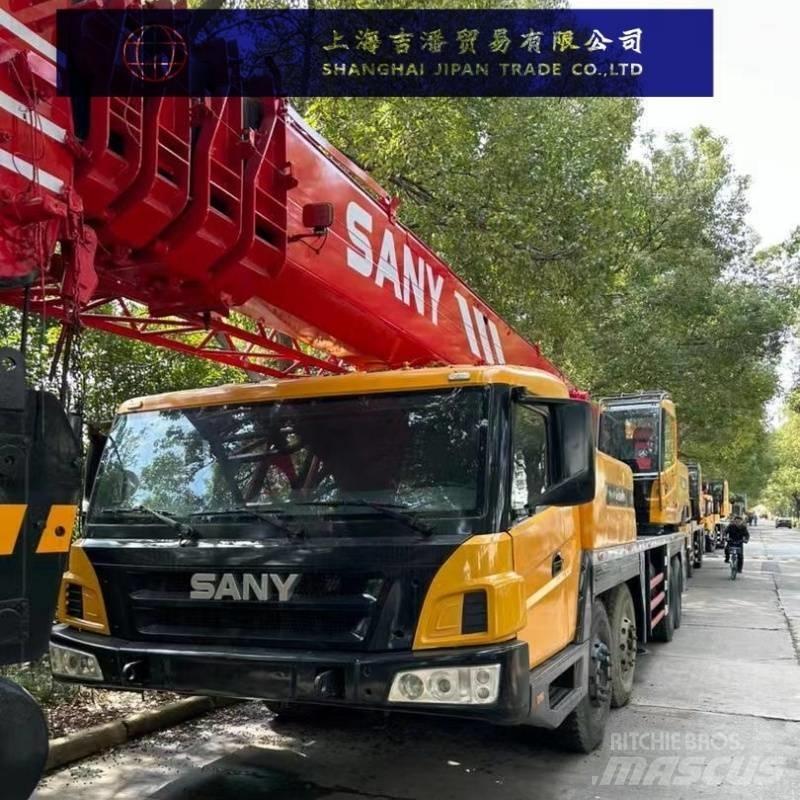

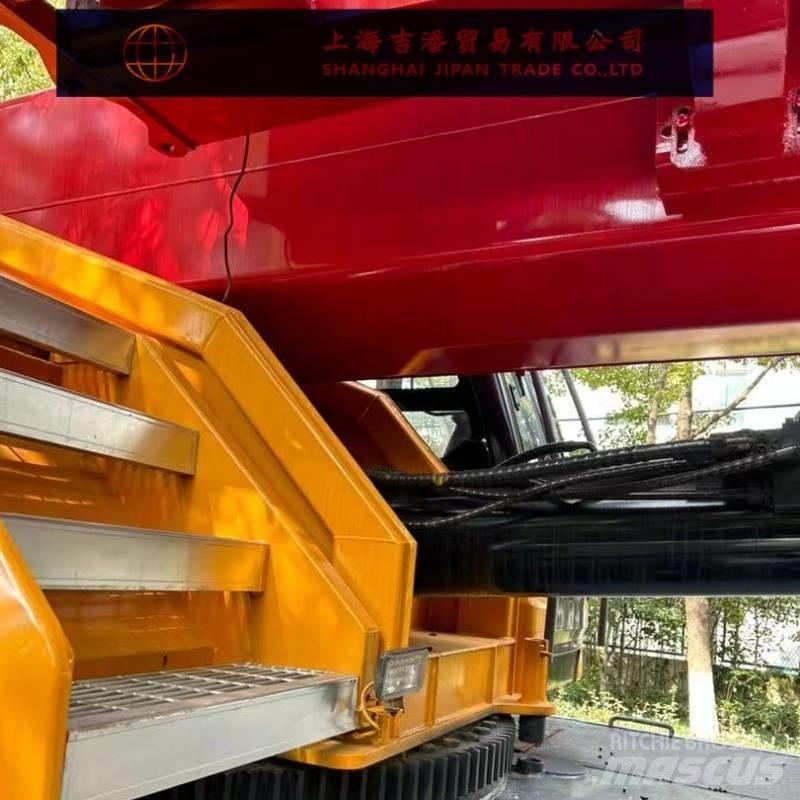

Sany STC 50
Preţ excl. TVA
POA
Imprima
INFORMAȚII
Grup de produse
Macara pentru orice teren
Marca /model
Sany STC 50
Anul fabricatiei
2017
Ore de utilizare
6.528 h
Tara
China
Nivel general
1
2
3
4
5
Mascus ID
894F04BF
DETALII
Ultima inspectie
2025-06-10
Număr de proprietari anteriori
1
Greutate neta
24.500 kg
Capacitate maxima de ridicare
50.000 ton
Max lifting capacity at end of jib
50.000 ton
Lungimea minimă a brațului
15 m
Clasa de emisie
Etapa V
Boom length
14 m
Lungimea minimă a brațului cu înclinare reglabilă
14 m
Luffing jib
14 m
Jib length of crane
14 m
Înaltime maxima de ridicare
51 m
Hook height of crane - horizontal jib
15 m
Hook height of crane - luffed jib
15 m
Upper hours
857 h
Tipul macaralei
Braţ hidraulic
Original colour
original
Carrier engine
4 t
Producător de motoare
original
Dimensiuni transport (Lxlxî)
13755 x 2750 x 3490 mm
Tip portbagaj
Cu senile
Garanție
1 year
Calitate cauciucuri fata
98%
Condiţia anvelopelor anterioare
2
Termen de livrare
FCA, FOB, CFR, CIF, EXW
Certificate
EPA, CE
Atasamente
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Nina
Whatsapp: +86 18055199047
Mobile:+86 18055199047
Wechat:18055199047
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accesorii
Hook blocks
Alte informaţii
尺寸参数
整机全长:13755mm
整机全宽:2750mm
整机全高:3490mm
轴距:第一、第二轴距 1450mm,第二、第三轴距 4000mm,第三、第四轴距 1350mm
轮距:一、二轴轮距 2255mm,三、四轴轮距 2048mm
重量参数
整机总质量:42000kg
一、二轴负荷:16000kg
三、四轴负荷:26000kg
动力参数
发动机型号:上柴 SC9DF320Q3 或东风康明斯 ISLe310 30
发动机最大功率:上柴 SC9DK320Q3 为 235kW/2200rpm,东风康明斯 ISLe310 30 为 228kW/2200rpm
发动机最大输出扭矩:上柴 SC9DK320Q3 为 1250N・m/1400rpm,东风康明斯 ISLe310 30 为 1200N・m/1200-1400rpm
行驶参数
最高行驶速度:75Km/h
最小转弯半径:12m
臂头最小转弯半径:14.5m
最小离地间隙:310mm
接近角:≥17°
离去角:≥12°
制动距离(车速为 30km/h):≤10m
最大爬坡度:35%
百公里油耗:≤45L
起重性能参数
最大额定总起重量:50t
最小额定幅度:3m
转台尾部回转半径:4.0m
最大起重力矩 - 基本臂:1788.5kN·m
最大起重力矩 - 最长主起重臂:840.8kN·m
最大起重力矩 - 最长主起重臂 + 副起重臂:318kN·m
起升高度 - 基本臂:12m
起升高度 - 最长主起重臂:42.8m
起升高度 - 最长主起重臂 + 副起重臂:58.8m
起重臂长度 - 基本臂:11.5m
起重臂长度 - 最长主起重臂:42.5m
起重臂长度 - 最长主起重臂 + 副起重臂:58.5m
副起重臂安装角:0°、15°、30°
工作速度参数
主卷扬单绳最大速度(空载):130m/min
副卷扬单绳最大速度(空载):130m/min
起重臂全伸 / 缩时间:120/100s
起重臂全起 / 落时间:80/60s
回转速度:0-2.0r/min
水平支腿全伸 / 缩时间:38/20s
垂直支腿全收 / 放时间:35/15s
上海吉潘贸易有限公司
上海市松江区车墩镇莘莘路32号3799 201600 上海 上海 China
