Capacitate maxima de ridicare
100.000 kg
Max lifting capacity at end of jib
100.000 kg
Clasa de emisie
Etapa III A
Înaltime maxima de ridicare
2.660 cm
Tipul macaralei
Braţ hidraulic
Producător de motoare
Get on TAD720VE TAD750VE Get off WP12.460N
Dimensiuni transport (Lxlxî)
1560030003.85 m
Termen de livrare
FOB, CIF
Alte informaţii

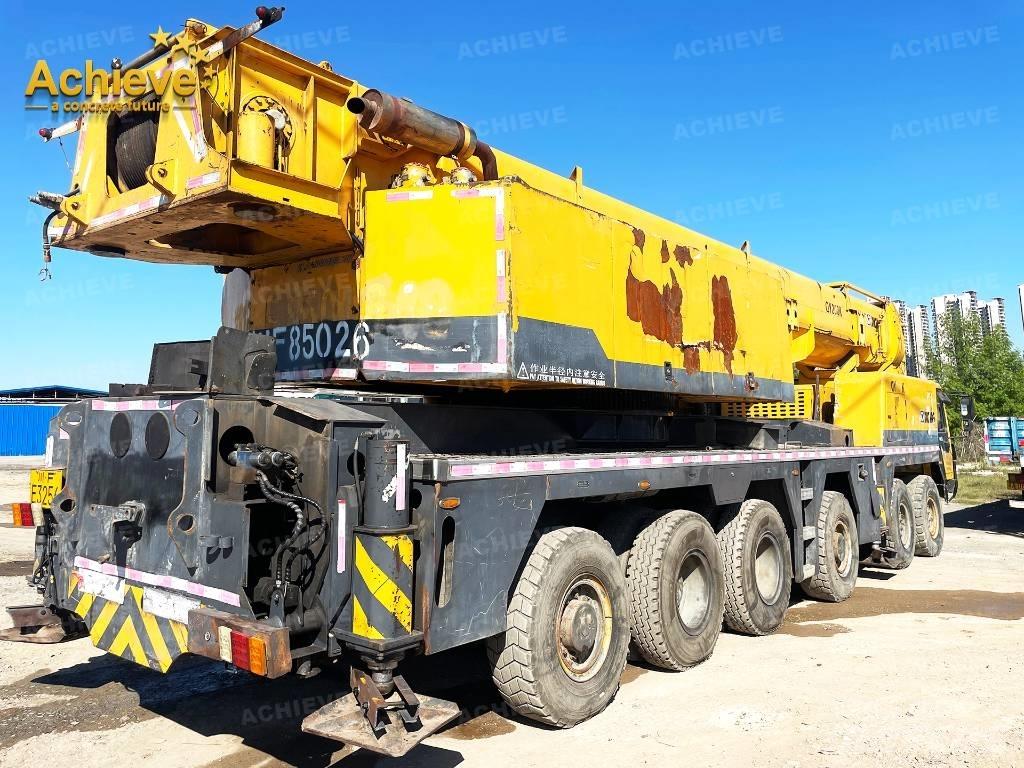

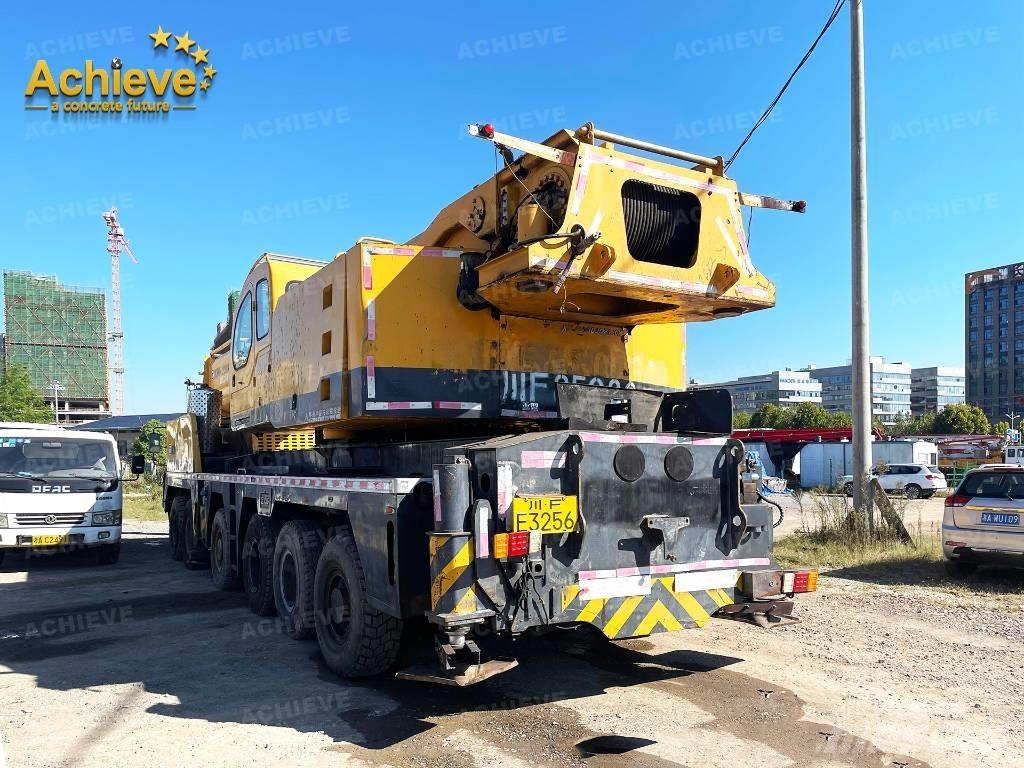

The eight-section "U-shaped" 82-meter main arm has a maximum lifting capacity of 100 tons; the lateral span of the H-shaped outriggers is 8.1 meters, and the full rectangular frame structure has a stronger load-bearing capacity and higher stability; the five-axle high-load truck crane chassis, three-axle drive, and three-axle steering, has strong power and flexible maneuverability.
* Engine rated power (kw/(r/min))
316/1900
* Maximum driving speed (km/h)
80
* Maximum climbing grade (%)
45
project
unit
parameter
Parameters
QY100K-I (Weichai)
Size parameters
Machine length
mm
15600
Full width
mm
3000
Overall height
mm
3850
Wheelbase
mm
1420+2420+1800+1420+1505
Wheelbase
mm
2610/2610/2610/2315/2315/2610
Weight parameters
Total mass in driving state
kg
54900
Axle load
kg
1 axis 8000/2 axis 8000/3 axis 7900/4 axis 12000/5 axis 12000/6 axis 7000
Power parameters
Engine Model
Get on TAD720VE TAD750VE Get off WP12.460N
Engine rated power
kw/(r/min)
Boarding 174/2300 181/2300 Alighting 338/1900
Rated engine torque
Nm/(r/min)
Boarding 854/1400 1050/1500 Alighting 2110/1000-1400
Driving parameters
Driving
Maximum driving speed
km/h
80
Minimum stable driving speed
km/h
0.5
Turning
Minimum turning diameter
m
twenty four
Minimum turning diameter of arm head
m
26.6
Maximum climbing grade
%
40
Minimum ground clearance
mm
300
Approach Angle
°
20
Departure angle
°
14
Braking distance
m
≤10
Fuel consumption per 100 km
L
70
Main performance parameters
Maximum rated total lifting weight
t
100
Minimum rated amplitude
m
3
Maximum lifting moment of basic arm
kN·m
3450
Turntable tail turning radius
mm
Balance weight 4200 Secondary roll 4590
Outriggers
Vertical
m
7.56
Horizontal
m
7.6
Maximum lifting height
Basic arm
m
13.5
Longest main boom
m
50.9
Longest main boom + jib
m
70.4
Boom length
Basic arm
m
13.5
Longest main boom
m
-
Longest main boom + jib
m
-
Longest main boom + jib + extension section
m
51+18.1+4
Working speed
Maximum rotation speed
r/min
2
Lifting speed
Main lifting mechanism
105
Auxiliary lifting mechanism
104
Boom extension time
Full extension
s
160
Full Zoom
160
Amplitude change time
Full arm lift
s
75
Full arm drop
s
-
Outrigger retraction
level
At the same time
s
25
At the same time
s
15
vertical
At the same time
s
-
At the same time
s
