Capacitate maxima de ridicare
130.000 kg
Înaltime maxima de ridicare
4.877 cm
Atasamente
https://freecranespecs.com/Grove/RT9130E-2
Alte informaţii

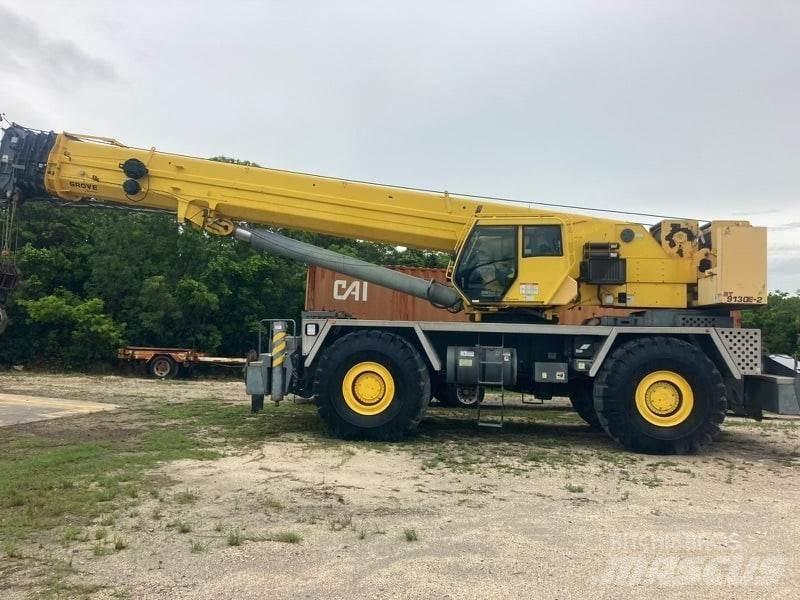

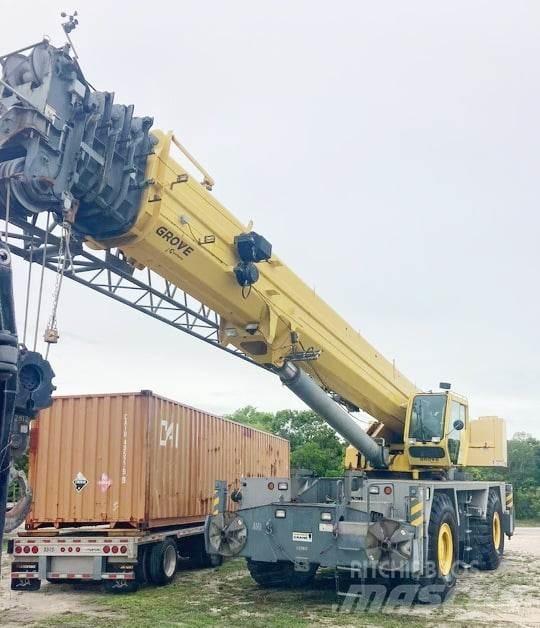

2012 Grove RT9130E-2, 130 Ton. Rough Terrain Crane; CranesList ID: 915,
42' - 160' Five Section sequenced synchronized full power boom,
36' Swing Away extension (Jib). Offsets from 0° to 40°. Stows alongside base boom section,
Main and Auxiliary winches with 3/4” wire rope,
Drum Rotation Indicator, Load moment and anti-two block system - Standard “Graphic Display” with audio-visual warning and control lever lockout,
Hook Block,
Swing - Two speed, (2) planetary swing drives with foot applied multi-disc wet brakes. Spring applied, hydraulically released swing brakes. 360° positive swing lock and two-position mechanical house lock, both operated from cab,
Grove 4 x 4 drive Carrier,
Cummins QSB 8.3L Six cylinders 224 kW (300 hp) Tier III Diesel Engine,
Full powershift with 6 forward and 3 reverse speeds. Front axle disconnect for 4 x 2 travel.,
Front and Rear Tires: 33.25 x 29 - 38 bias ply,
Air Conditioning,
40,000# counterweights. Hydraulically installed and removed,
Four hydraulic telescoping single-stage double box beam outriggers with inverted jacks and integral holding valves. Three position settings, 0%, 50% and fully extended. Outrigger boxes removable for ease of transportation,
Outrigger Controls and crane level indicator located in cab,
Fifth Front Outrigger,
... IN THE BAHAMAS!
