Capacitate maxima de ridicare
130.000 kg
Înaltime maxima de ridicare
4.877 cm
Atasamente
https://freecranespecs.com/Grove/RT9130E
Alte informaţii

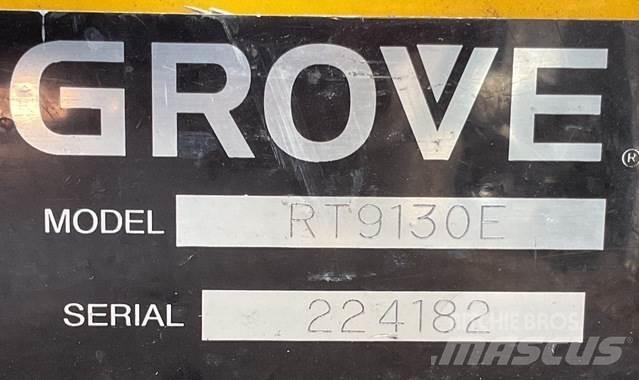

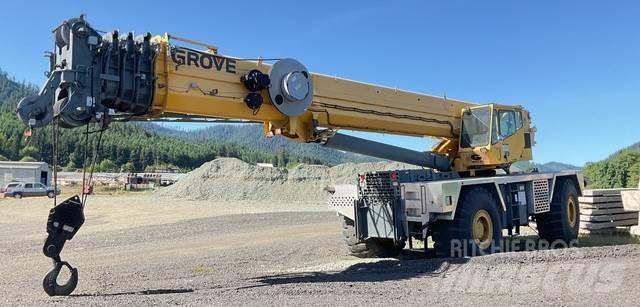

2005 Grove RT9130E, 130 Ton, Rough Terrain Crane; CranesList ID: 950,
42' - 160' five-section, MEGAFORM sequenced synchronized full power boom with Removable auxiliary boom nose,
36' - 59' offsettable bifold lattice swingaway extension. Offsets 0°, 20° and 40°,
Main and Auxiliary winches with 3/4” wire rope,
Load Moment Indicator and Anti-Two Block System,
Johnson, 80 Ton, 5 Sheave Hook Block,
Swing - Two speed, (2) planetary swing drives with foot applied multi-disc wet brakes. Spring applied, hydraulically released swing brakes. 360° positive swing lock and two-position mechanical house lock, both operated from cab,
40,000# counterweight with counterweight removal system,
20 degree tilt Operator's cab,
Grove 4 x 4 drive and steering Carrier,
Cummins QSC8.3L, Six Cylinder, 300 HP Diesel Engine - 2004 US EPA Label,
Full powershift with 6 forward and 3 reverse speeds Transmission,
Air Conditioning and Heater.
Front axle disconnect for 4 x 2 travel,
Front and Rear Tires: 33.25 x 29.5,
Four hydraulic telescoping single-stage double box beam outriggers with inverted jacks and integral holding valves. Three position settings, 0%, 50% and fully extended. Outrigger boxes removable for ease of transportation,
Outrigger Controls and crane level indicator located in cab,
Boom trailer avail for additio
nal cost,
Last Certified in 2021.
... IN OREGON!
