CAT CAT305.5E2

Preţ excl. TVA

Images10

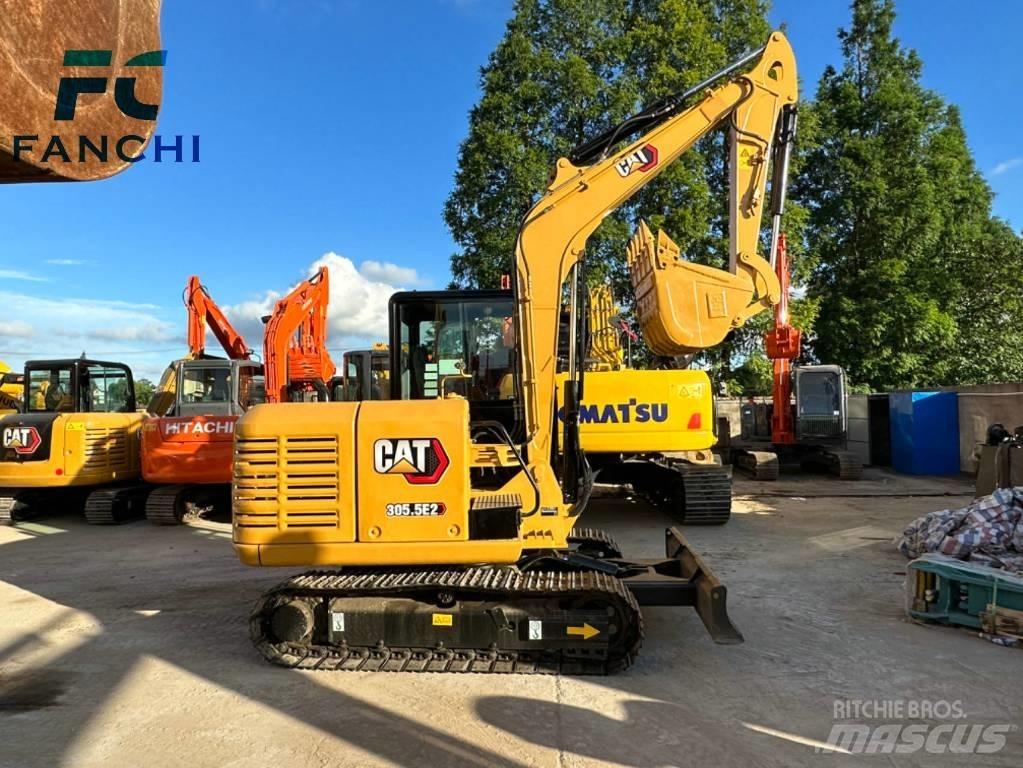

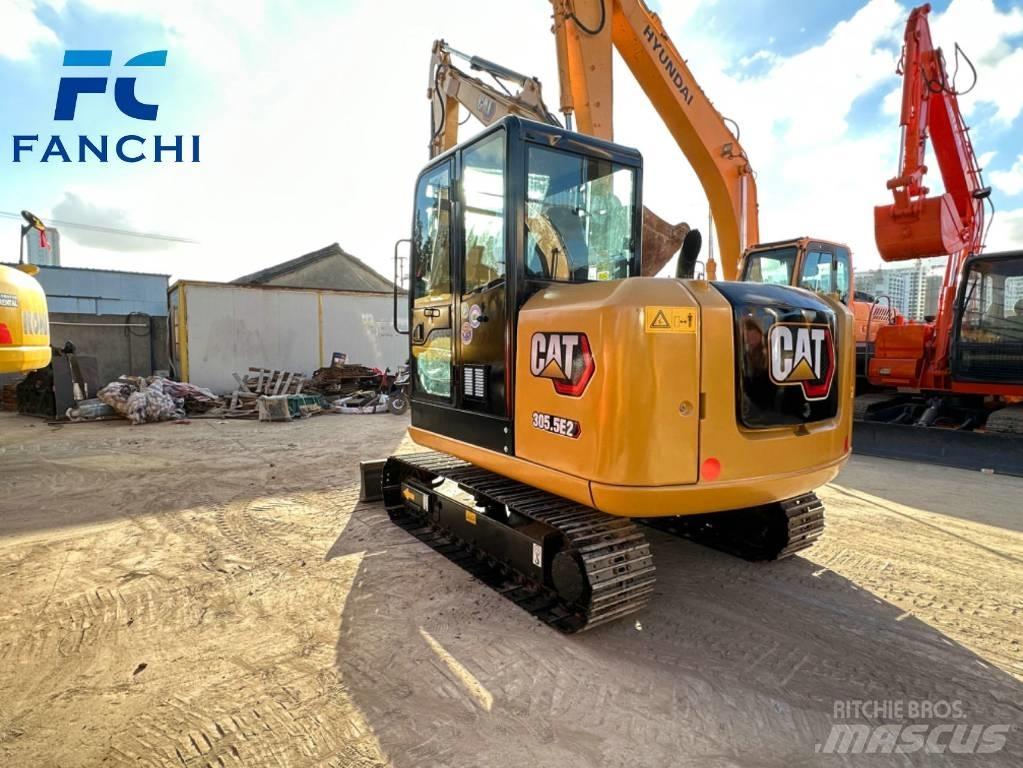

CAT CAT305.5E2 Mini excavatoare < 7t
CAT CAT305.5E2 Mini excavatoare < 7t
CAT CAT305.5E2 Mini excavatoare < 7t
FavoriteFavorit
shareDistribuie
Save searchSalvare căutare
Imprima

INFORMAȚII

Grup de produse
Mini excavatoare < 7t
Marca /model
CAT CAT305.5E2
Anul fabricatiei
2024
Ore de utilizare
450 h
Optiuni extra
Remanufacturat
Tara
China
Nivel general
1
2
3
4
5
Mascus ID
77BC2619

STABILIREA PRETULUI

Alege moneda

DETALII

Tip putere
Diesel
Istoria reviziei complete
Da
Număr de proprietari anteriori
1
În condiții de transport
good
Greutate neta
5.500 kg
Clasa de emisie
Etapa V
Ecartament
400 mm
Capacitate piston
0,22 m3
Dimensiuni transport (Lxlxî)
576519502.54 m
Original colour
YELLOW
Dipper / stick length
960 mm
Motor
Cat C2.4 DI
Putere Motor
34,1 kW (46,4 hp)
Producător de motoare
JAPAN
Garanție
good
Tara de productie
Japonia
Termen de livrare
FOB, CIF, EXW
Certificate
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Atasamente
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Accesorii
Sarma Twig
Aer conditionat
Alte aparate hidraulice
Frâne cu aer comprimat
Afiseaza mai multe
Alte informaţii
The performance parameters of the Caterpillar CAT305.5E2 excavator are as follows: 1. **Overall Dimensions of the Machine** - Total transportation length: 5765mm, total transportation width: 1950mm, total transportation height: 2540mm, minimum ground clearance: 628mm, rear swing radius: 1580mm, total track length: 2440mm, track gauge: 1550mm, track shoe width: 400mm, center distance between idler wheels: 1920mm. 2. **Operating Weight** - The operating weight of the whole machine is 5400kg. 3. **Bucket Capacity** - The bucket capacity is 0.22 cubic meters. 4. **Power System** - Engine model: Cat C2.4 DI, rated power: 34.1kW, cylinder bore: 87mm, stroke: 102.4mm, displacement: 2.4L. 5. **Performance Parameters** - Swing speed: 10.5rpm. - Gradability: 50%. - Bucket digging force: 35.0kN. - Stick digging force: 27.2kN. - Maximum drawbar pull: 40.2kN. - Travel speed: 4.3/2.8km/h. - Swing torque: 13.9N·m. 6. **Hydraulic System** - Maximum main pump flow: 140L/min. The type of the main pump is a load sensing hydraulic system equipped with a variable displacement piston pump, and the working hydraulic circuit pressure is 25MPa. 7. **Oil Capacity** - Fuel tank: 78L, hydraulic oil tank: 58L, engine oil change capacity: 9.5L, coolant: 9.8L. 8. **Working Range** - Maximum digging radius: 5955mm. - Maximum digging depth: 3720mm. - Maximum digging height: 5460mm. - Maximum unloading height: 3835mm. - Maximum vertical digging depth: 2210mm. 9. **Bulldozer Blade Parameters** - Lifting or pushing depth: 365mm/480mm, width×height of the bulldozer blade: 1950mm×360mm.Afiseaza mai multe

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 China
