Doosan DH 60

Preţ excl. TVA

Images9

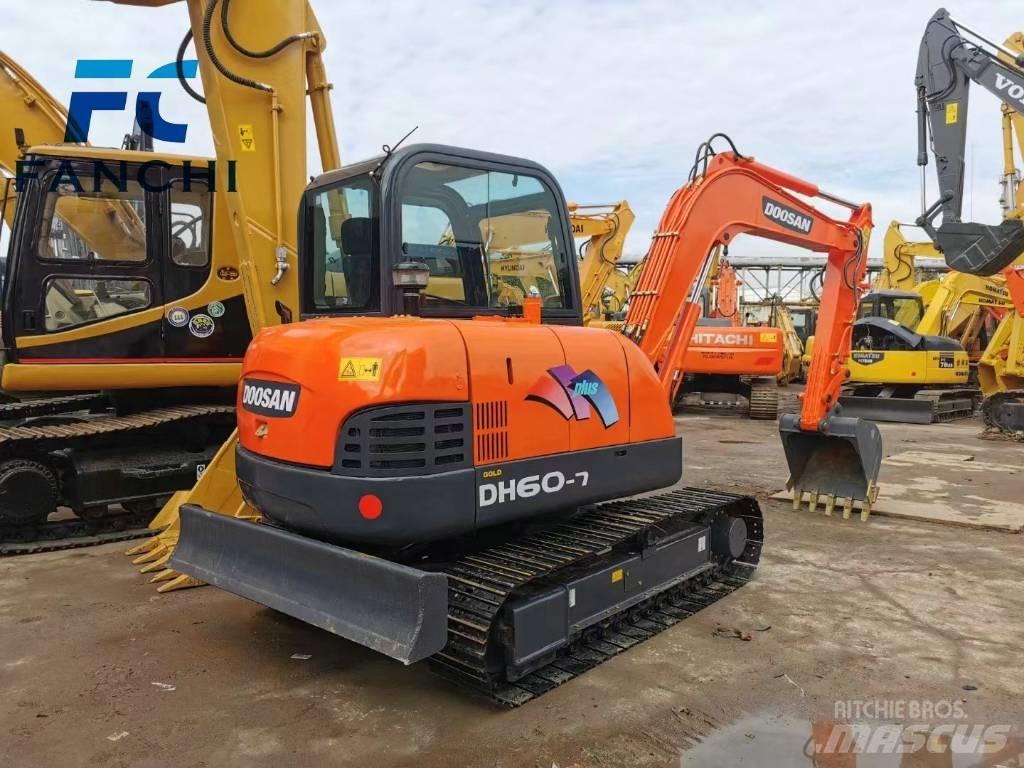

Doosan DH 60 Mini excavatoare < 7t
Doosan DH 60 Mini excavatoare < 7t
Doosan DH 60 Mini excavatoare < 7t
FavoriteFavorit
shareDistribuie
Save searchSalvare căutare
Imprima

INFORMAȚII

Grup de produse
Mini excavatoare < 7t
Marca /model
Doosan DH 60
Anul fabricatiei
2023
Ore de utilizare
600 h
Tara
China
Nivel general
1
2
3
4
5
Mascus ID
86AB9175

STABILIREA PRETULUI

Alege moneda

DETALII

Număr de proprietari anteriori
1
În condiții de transport
good
Greutate neta
6.000 kg
Ecartament
400 mm
Capacitate piston
2 m3
Dimensiuni transport (Lxlxî)
585018802.575 m
Original colour
YELLOW
Dipper / stick length
1.990 mm
Motor
洋马 4TNV94L
Putere Motor
38,1 kW (51,8 hp)
Producător de motoare
JAPAN
Garanție
good
Tara de productie
Japonia
Termen de livrare
FOB, CIF, EXW
Certificate
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Atasamente
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Accesorii
Auto / hydraulic quick coupler
circuit hidraulic al ciocanului
Sarma Twig
GPS
Afiseaza mai multe
Alte informaţii
Overall Machine Parameters: - Total operating weight of the whole machine: 5550 kg - Bucket capacity: 0.09 - 0.2 m³ - Boom length: 3000 mm - Arm length: 1600 mm - Total transport length: 5850 mm - Total transport width: 1880 mm - Total transport height: 2575 mm - Total height of the cab: 2575 mm - Width of the upper carriage: 1885 mm - Track ground contact length: 1990 mm - Total track length: 2540 mm - Track shoe width: 400 mm - Total track width: 1880 mm - Track gauge: 1480 mm - Minimum ground clearance: 350 mm - Rear swing radius: 1650 mm Performance Parameters: - Bucket digging force: 37.7 kN - Arm digging force: 28.4 kN - Maximum digging radius: 6150 mm - Maximum digging depth: 3820 mm - Maximum digging height: 5760 mm - Maximum unloading height: 4030 mm Engine Parameters: - Engine model: Yanmar 4TNV94L - Rated power: 38.1 kW/2200 rpm - Number of cylinders: 4 - Cooling method: Water cooling - Working mode: Air-to-air intercooling Hydraulic System Parameters: - Main pump type: Variable axial piston pump × 2 - Maximum flow rate of the main pump: 55×2 L/min - Working hydraulic circuit pressure: 20.6 MPa - Travel hydraulic circuit pressure: 20.6 MPa - Swing hydraulic circuit pressure: 21.6 MPa - Flow rate of the pilot pump: 9.9 L/minAfiseaza mai multe

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 China
