Bobcat S 510

Name: Bobcat S 510
Brand: Bobcat
SKU: B7E3FB2B
Price: 37999 USD
Availability: InStock

Preţ excl. TVA

Favorit

Distribuie

Salvare căutare

Imprima

INFORMAȚII

Grup de produse

Mini incarcator

Marca /model

Bobcat S 510

Anul fabricatiei

2016

Ore de utilizare

1.116 h

Locatia masinii

Claremont, California

Tara

Statele Unite ale Americii

Nivel general

Mascus ID

B7E3FB2B

STABILIREA PRETULUI

Alege moneda

DETALII

Motor

V3307-DI-TE3

Producător de motoare

Kubota

Tip portbagaj

Cu senile

Alte informaţii

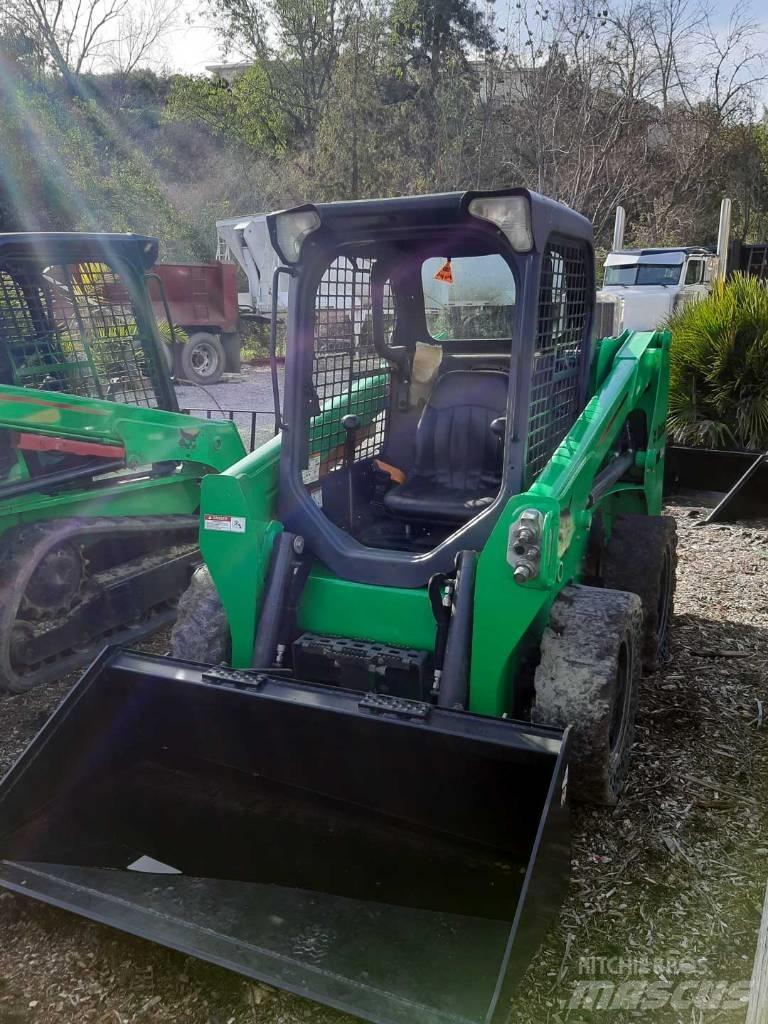

2016 Bobcat Skid Steer Compact Loader, Kubota V2403-MDI-E3B Diesel Engine, 4WD, Interim Tier 4, Diesel, Liquid Cooling, Fully Hydrostatic, Operating Capacity 1,650 lb, All Maintenance Points Serviced. Ready to Work! Engine -Make: Kubota -Model: V3307-DI-TE3 -Engine Tier: Interim Tier 4 -Fuel: Diesel -Cooling: Liquid -Horsepower: ISO 9249 EEC SAE J1349 Net - 46.1 hp at 2700 rpm ISO 14396 Gross - 46.1 hp at 2700 rpm SAE J1995 Gross - 48.9 hp at 2700 rpm Torque: ISO 9249 EEC SAE J1349 Net - 109.6 ft-lb at1600 rpm SAE J1995 Gross - 117.0 ft-lb at 1600 rpm -Low Idle rpm: 1075 - 1225 -High Idle rpm: 2760 - 2900 -Number of Cylinders: 4 -Displacement: 2.4L -Bore Stroke: 3.425 in 4.03 in -Lubrication: Gear Pump Pressure System with Filter -Crankcase Ventilation: Closed Breathing -Air Cleaner: Dry replaceable paper cartridge with separate safety element -Ignition: Diesel - Compression -Air Induction: Naturally Aspirated -Engine Coolant: Propylene Glycol Water Mixture -Starting Aid: Glow Plugs - Automatically activated as needed in RUN position Drive System -Main Drive: Fully hydrostatic, 4-wheel drive -Transmission: Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors -Final Drive: Prestressed #80 HSOC endless roller chain (no master link) and sprockets in sealed chaincase with oil lubrication (Chains do not require periodic adjustments) Two chains per side with no idler sprocket -Axle Size: 1.98 in heat treated -Wheel Bolts: Eight - 0.56 in. wheel bolts fixed to axle hubs Hydraulic System -Pump Type: Engine driven, gear type -Pump Capacity: 17.1 U.S. gpm -System Relief at Quick Couplers: 3450 - 3550 psi -Filter (Hydraulic Hydrostatic): Replaceable beta 10 micron = 200, drop in element -Filter (Charge): Replaceable beta 10 micron = 200, drop in element Hydraulic Cylinders -Bore Diameter: Lift Cylinder (2) - 2.25 in Tilt Cylinder (2) - 2.75 in -Rod Diameter: Lift Cylinder (2) - 1.50 in Tilt Cylinder (2) - 1.50 in -Stroke: Lift Cylinder (2) - 27.50 Tilt Cylinder (2) - 13.02 in -Control Valve - Standard: 3-Spool, open center, manually operated with spring detent for lift float; Electrically controlled auxiliary spool -Control Valve - ACS and SJC: 3-Spool, open center with electric actuator-controlled lift with float and tilt; Electrically controlled auxiliary spool -Fluid Lines: SAE Standard tubelines, hoses, and fittings -Fluid Type: BOBCAT FLUID, Hydraulic / Hydrostatic 6903117 - (Two - 2.5 U.S. gal) 6903118 - (5 U.S. gal) 6903119 - (55 U.S. gal) Hydraulic Function Time - Raise Lift Arms: 3.3 seconds - Lower Lift Arms: 2.8 seconds - Bucket Dump: 2.3 seconds - Bucket Rollback: 1.7 seconds Capacities -Fuel: 24.75 U.S. gal -Engine Oil with Filter Change: 9.2 qt -Engine Cooling System: with Heater - 3.1 U.S. gal without Heater - 3.0 U.S. gal -Hydraulic Hydrostatic Reservoir: 2.0 U.S. gal -Hydraulic Hydrostatic System: 8.4 U.S. gal -Chaincase Reservoir: 8.5 U.S. (NOTE: AVAILABLE ONLY VIA APPOINTMENT. PLEASE GET IN TOUCH AND SCHEDULE AN APPOINTMENT.)Afiseaza mai multe

ReQuip Corporation

16516 Washington Dr 92335 Fontana California Statele Unite ale Americii
