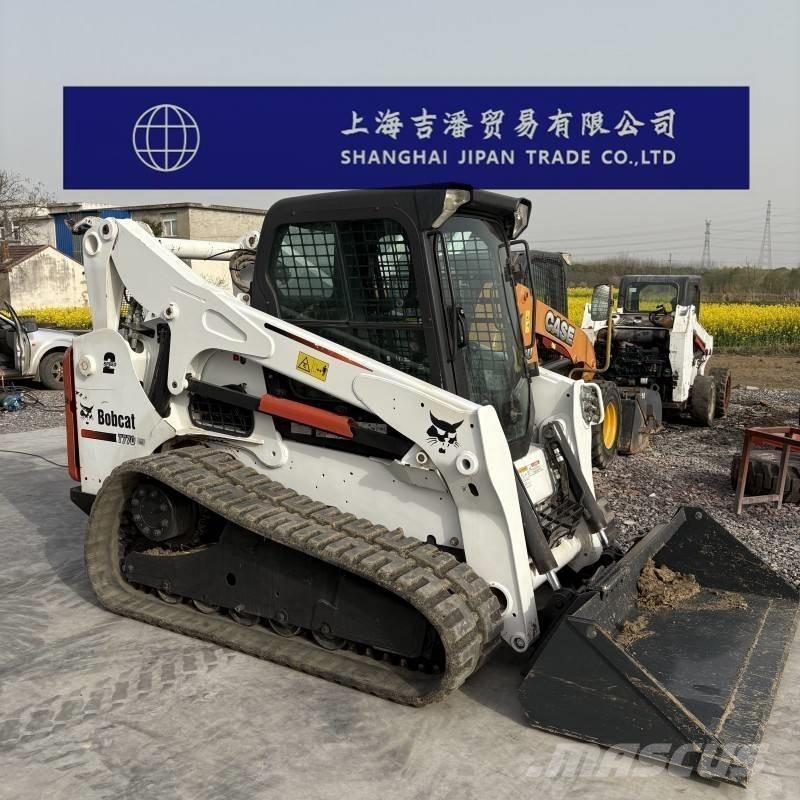

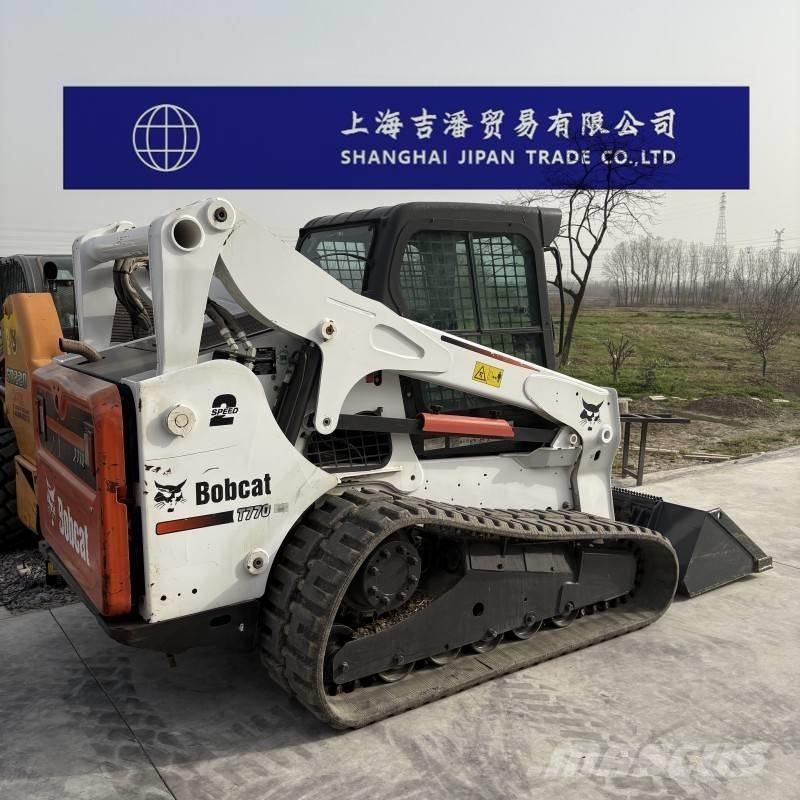

Bobcat T 770

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Bobcat T770 skid steer loader Basic performance Rated loading capacity (kg) : 1576 Overturning load (kg)4504 The overall weight of the machine (kg) is 4684 The form of the lifting mechanism is vertical lifting Engine Engine model: Kubota V3800-DI-T-E3(Turbocharged) Rated power (kw/rpm) : 68.6/2400 Through performance Maximum driving speed (km/h) : 10.6/ dual-speed mode: 17.2 Track plate width (mm) : 500 Ground contact pressure (Kpa) : 40.6 for narrow tracks / 29 for wide tracks Front turning radius (with bucket) (mm) : 2235 Hydraulic system System safety pressure (bar)241.3 The rated flow rate of the system (L/min) is 87.1/ the maximum flow rate is 138.2 Oil capacity Fuel tank (L)103 Scope of work Unloading distance (at maximum height) (mm) : 884 Maximum height of the bucket hinge pin (mm)3353 Overall machine specification Total length (without accessories) (mm)2895 Total length (with bucket) (mm)3597 Full
