INFORMAȚII

Grup de produse
Motoare industriale
Marca /model
Baldor CEM3771T-5
Optiuni extra
Folosit
Locatia masinii
Langley, British Columbia
Tara
Canada
Mascus ID
7930EFA5

STABILIREA PRETULUI

Alege moneda

DETALII

Numar de stoc intern
19031
Alte informaţii

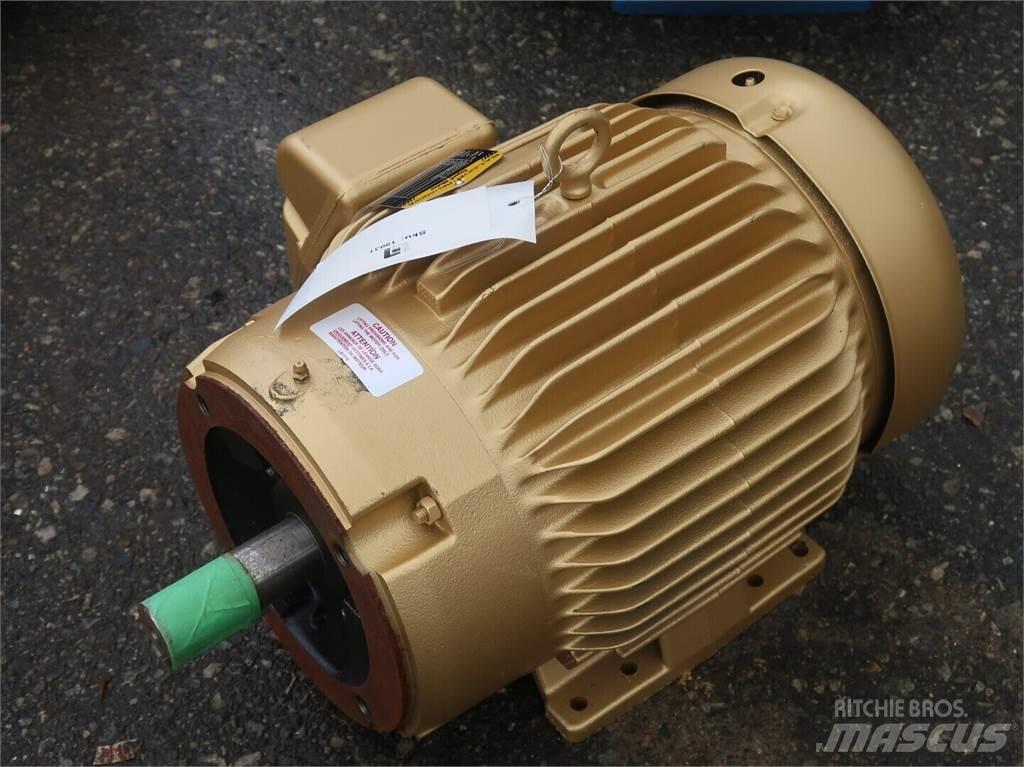

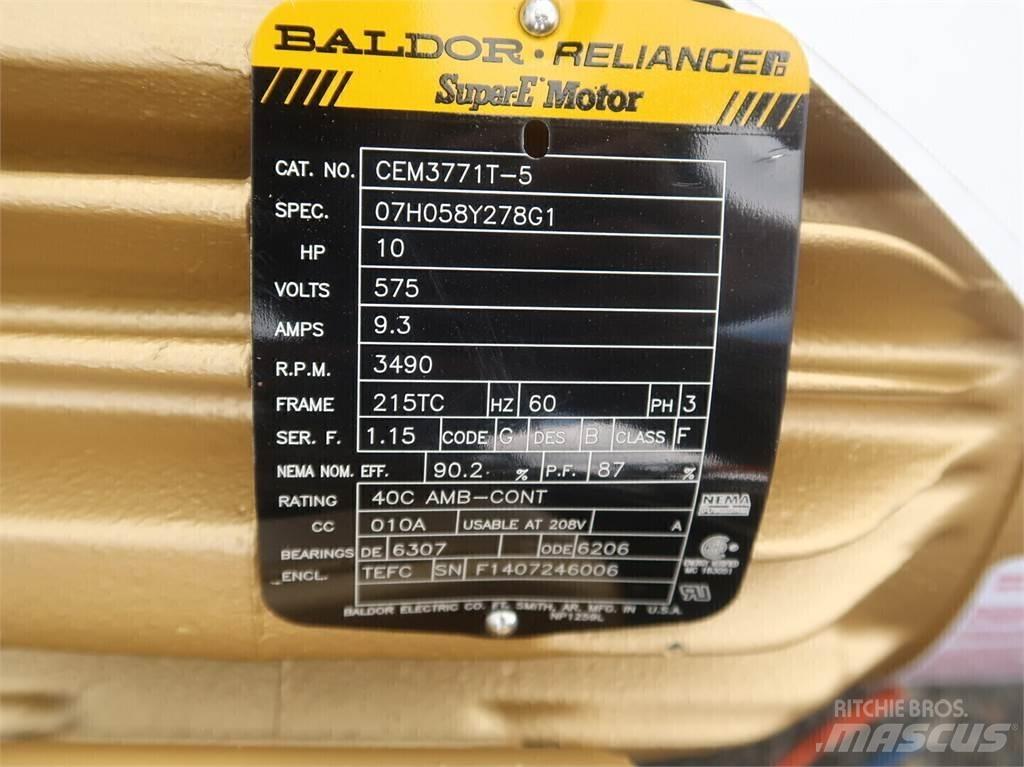

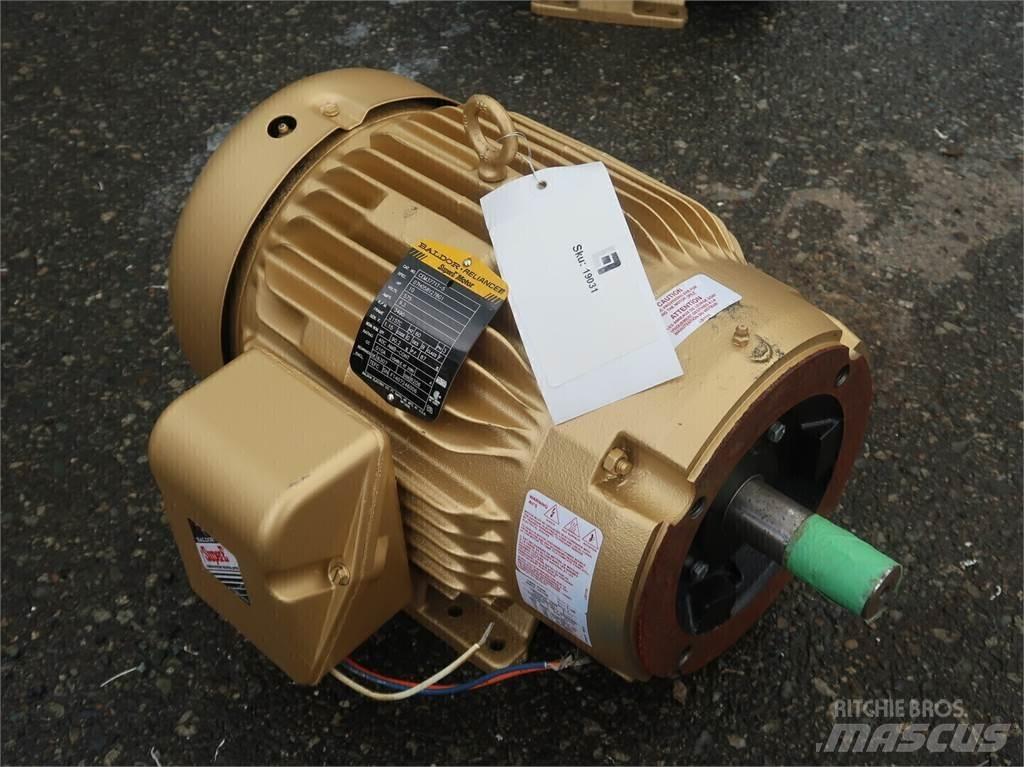

10 hp, 575 Volts, 3600 Rpm, 215TC General Purpose Motor CEM3771T-5 Title: 10 hp, 575 Volts, 3600 Rpm, 215TC General Purpose Motor CEM3771T-5 SKU: 19031 Model: CEM3771T-5 Condition: Surplus New S/N: F1407246006 GeneralCurrent Type:AC Horsepower:10hp Voltage:575volts Phase:3-phase RPM:3600rpm Frame:215TC Additional DataDuty:Continuous Made In: UNITED STATES Dimensions: 18.00 (H) x 19.00 (W) x 29.00 (L) inches Enclosure: TEFC Frame Material: Iron Motor Letter Type: Three Phase Output ... Frequency: 10.000 HP ... 60 HZ Synchronous Speed ... Frequency: 3600 RPM ... 60 HZ XP Class and Group: None Ambient Temperature: 40 °C Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Current ... Voltage: 9.300 A ... 575.0 V Design Code: B Drip Cover: No Drip Cover Efficiency ... 100% Load: 90.2 % Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK High Voltage Full Load Amps: 9.3 a Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater Insulation Class: F Inverter Code: Inverter Ready KVA Code: G Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Lead Quantity/Wire Size: 3 ... 14 AWG Motor Type: 0730M Mounting Arrangement: F1 Number of Poles: 2 Overall Length: 19.20 IN Power Factor: 87 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: C-Face Pulley Shaft Indicator: Standard Rodent Screen: None RoHS Status: ROHS COMPLIANT Service Factor: 1.15 Shaft Diameter: 1.375 IN Shaft Extension Location: Pulley End Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: No Slinger Speed: 3490 rpm Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on lineAfiseaza mai multe

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
