TECO AEUG-TK001

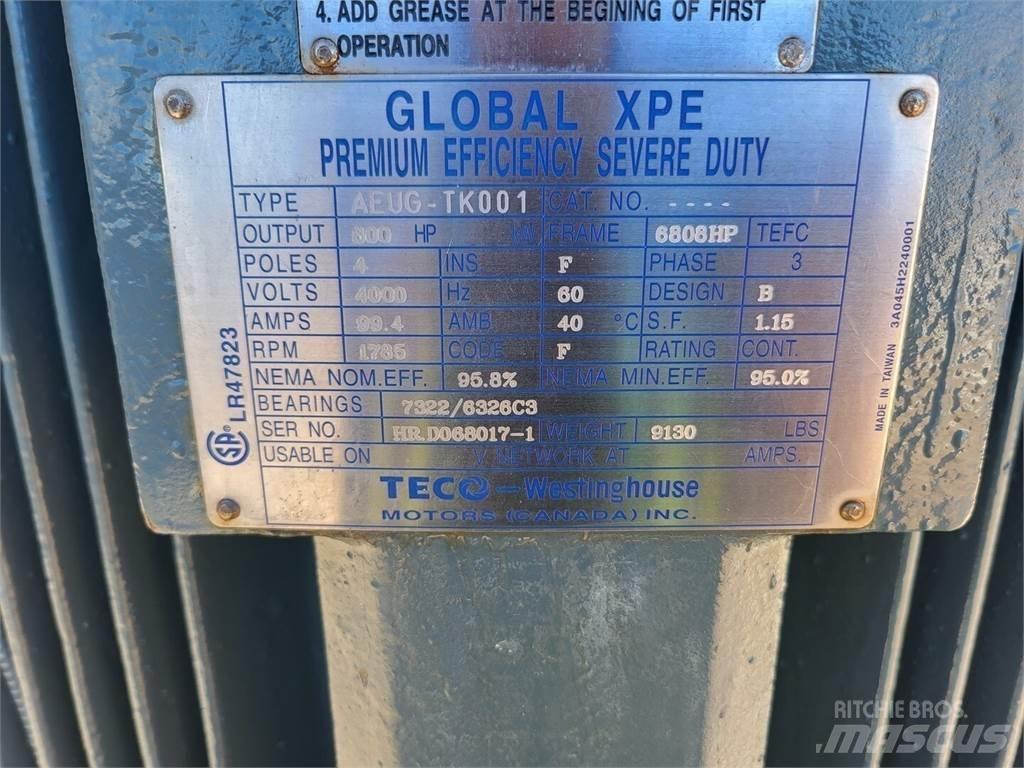

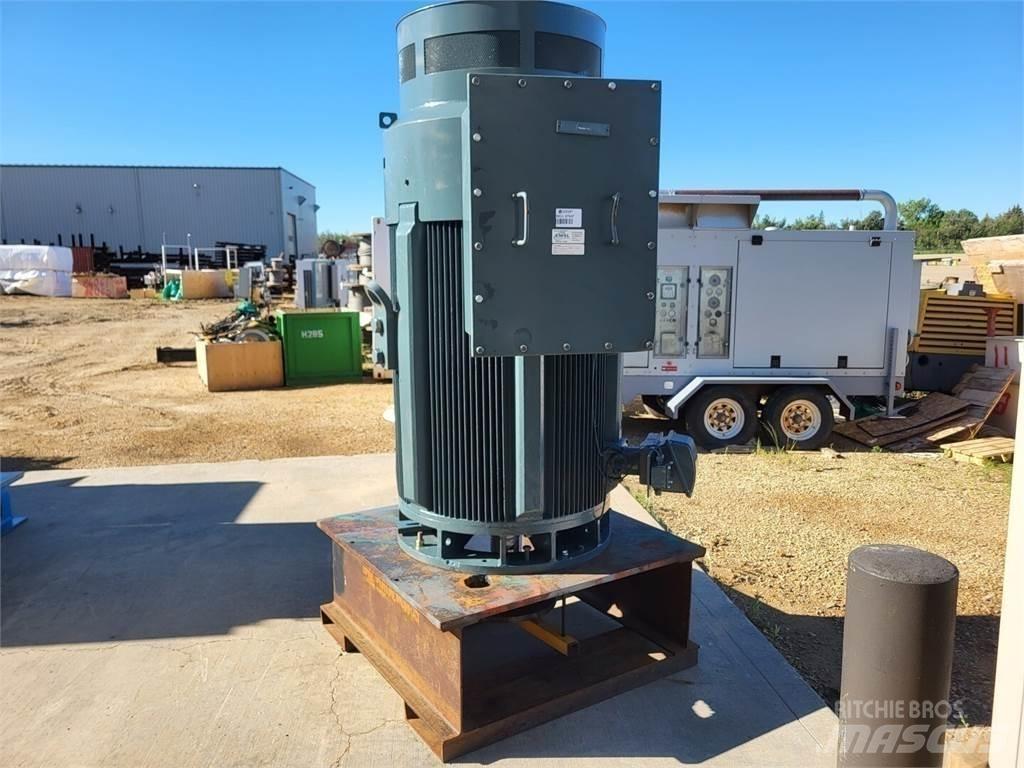

SURPLUS NEW TECO AEUG-TK001 800 hp 4000 volts 1785 rpm 6808HP Electric Motor – Motors – AC , 800 hp, 4000 volts, 3-phase , 1785 rpm, 6808HP , Continuous Title: 800 hp 4000 volts 1785 rpm 6808HP Electric Motor AEUG-TK001 SKU: 87647 Model: AEUG-TK001 Condition: Surplus New S/N: HR.D068017-1 GeneralCurrent Type:AC Horsepower:800hp Voltage:4000volts Phase:3-phase RPM:1785rpm Frame:6808HP Additional DataDuty:Continuous Made In: TAIWAN Dimensions: 96.00 (H) x 60.00 (W) x 60.00 (L) inches ** New - Old Stock Enclosure: TEFC Design: B Poles: 4 Amps: 99.4 A Ambient Temp.: 40oC S.F.: 1.15 NEMA Nom. Efficiency: 95.8% NEMA Min. Efficiency: 95.0% Bearings: 7322/6326C3 Weight: 9130 lbs. Lubrication Kind of Grease: MOBILITH SHC 100 Re-lubricated Period: Every 1000 hrs Quantity: - Drive End 300 g - Opp. Drive End 220 g Heater Volts: 120 V Watts: 300 W
