Putzmeister M42-4

Preţ excl. TVA

Images24Videos1

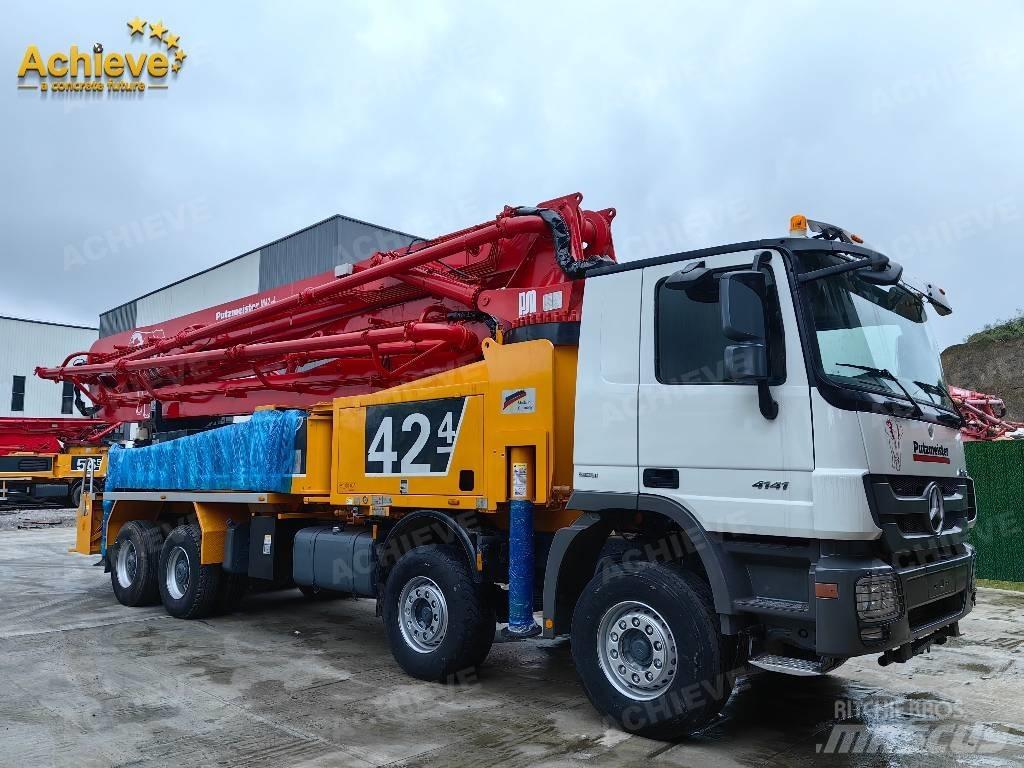

Putzmeister M42-4 Pompa pentru beton
Putzmeister M42-4 Pompa pentru beton
FavoriteFavorit
shareDistribuie
Save searchSalvare căutare
Imprima

INFORMAȚII

Grup de produse
Pompa pentru beton
Marca /model
Putzmeister M42-4
Anul fabricatiei
2014
Ore de utilizare
3.000 h
Optiuni extra
recondiționat,Remanufacturat
Tara
China
Nivel general
1
2
3
4
5
Mascus ID
C8CCEE59

STABILIREA PRETULUI

Alege moneda

DETALII

Numar de stoc intern
AICPT010
Numarul de sectiuni de brat
5
Ultima inspectie
2024-09-26
Greutate neta
26.000 kg
Boom length
400 cm
Dimensiunea orizontala maxima
3.730 cm
Puterea verticala maxima
4.160 cm
Tipul de miscare
static
Tip putere de pompare
Diesel
Putere pompa
300 kW
Dimensiuni transport (Lxlxî)
11500 x 2500 x 4200 mm
Clasa de emisie
Etapa V
Producător de motoare
Ergonic3. EU Version
Tipul pompei
Piston
Producator sasiu
Mercedes Benz
Brand anvelope
Mercedes Benz
Tara de productie
China
Termen de livrare
FOB, CIF
Certificate
EPA, CE, TÜV
Atasamente
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 41.6 m Horizontal Reach gross 37.3 m Horizontal Reach net 34.5 m Reach Depth 31 m Unfolding Height 8.6 m Slewing Range 365 degree End Hose - Length 4 m Delivery Line (DN, Pressure) DN125/5.5 / 85 mm/bar Support width Standard (front-rear) 7.5 / 8.3 m Support width OSS (front-rear) 5.0 / 6.4 m Support width iSC (front/rear) 2.6-7.5 Length x Width x Height 11.35 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 170 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 27
Alte informaţii
The Putzmeister M42-5 truck-mounted concrete pump has improved maneuverability and weight indices for 4 axle chassis. In Europe the M42-5 is equipped with iSC full flexible support and Ergonic 3 control. For countries outside of Europe it is equipped with the OSS support system, which allows you to work in a limited workspace. The concrete pump length is less than 12 meters, and it weighs less than 32 tons. Key Features A gross weight of less than 32 t includes sufficient reserves for payload and operating materials Smooth 5-arm placing boom, thanks to intelligent laying of the delivery line and the balanced development of the steel structure Efficient work through consistently clever ergonomic design Even better safety through closer consideration for current standards and guidelines Service-friendly as a result of its optimised accessibility and consistent bolted concept Lower service costs thanks to maintenance-free components, fewer special components (only 3 standard deliAfiseaza mai multe

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 China
