Putzmeister M46-5

Preţ excl. TVA

Images58Videos1

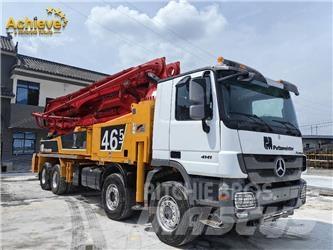

Putzmeister M46-5 Pompa pentru beton
Putzmeister M46-5 Pompa pentru beton
FavoriteFavorit
shareDistribuie
Save searchSalvare căutare
Imprima

INFORMAȚII

Grup de produse
Pompa pentru beton
Marca /model
Putzmeister M46-5
Anul fabricatiei
2013
Ore de utilizare
3.000 h
Optiuni extra
recondiționat,Remanufacturat
Tara
China
Nivel general
1
2
3
4
5
Mascus ID
FF862F64

STABILIREA PRETULUI

Alege moneda

DETALII

Numar de stoc intern
AICPT016
Numarul de sectiuni de brat
5
Ultima inspectie
2024-09-26
Greutate neta
32.000 kg
Boom length
300 cm
Dimensiunea orizontala maxima
4.110 cm
Puterea verticala maxima
4.610 cm
Tipul de miscare
static
Tip putere de pompare
Diesel
Putere pompa
300 kW
Dimensiuni transport (Lxlxî)
11850 x 2500 x 4000 mm
Clasa de emisie
Etapa V
Producător de motoare
Ergonic3. EU Version
Tipul pompei
Piston
Producator sasiu
Mercedes Benz
Brand anvelope
Mercedes Benz
Termen de livrare
FOB, CIF
Certificate
EPA, CE, TÜV
Atasamente
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 46.1 m Horizontal Reach gross 41.1 m Horizontal Reach net 38 m Reach Depth 32.4 m Unfolding Height 11.1 m Slewing Range 365 degree End Hose - Length 3 m Delivery Line (DN, Pressure) DN125/5.5 / mm/bar Support width Standard (front-rear) 8.4 / 9.3 m Support width OSS (front-rear) 5.6 / 6.9 m Support width iSC (front/rear) 2.6-8.4 m Length x Width x Height 11.85 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .19 iLS Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 190 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 30
Alte informaţii
If you are looking for a lightweight, high performance machine on 4 axles — the truck-mounted concrete pump M47-5 is built for you. Weighing less than 32 t, the 47-5 is one of the lightest in its class and provides a more than sufficient payload reserve. It is ideal for application at medium to large sized sites as well as job sites that offer challenging setup situations. Different small support Options available: Europe: ISC with permanent check of permitted arm positions and working ranges Outside Europe: OSS (One Side Support) The new fully flexible outrigger together with the intuitive Ergonic 3.0 control gives you all the freedom you need when space on the construction site is tight again. Key Features Below 32 t total weight Smooth 5-section-boom with Roll Z-Folding TRDI-Support for compact support area, fast setting up, relieved framework and difficult setup situations (iSC and OSS, One Side Support optional) Efficient work with Ergonic 3.0 operating system ReducAfiseaza mai multe

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 China
