Vahva FORTI 200

Preţ excl. TVA

Compnay LOGO
Images6Videos1

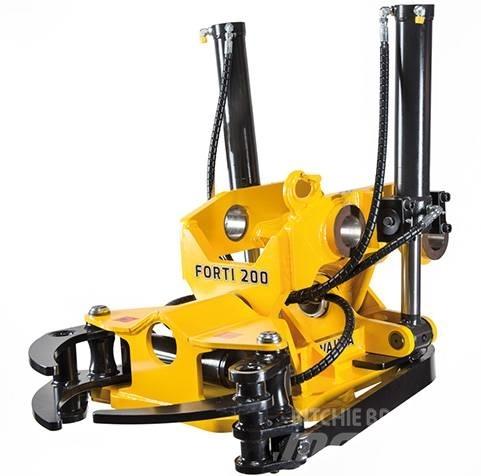

Vahva FORTI 200 Rotatoare
Vahva FORTI 200 Rotatoare
FavoriteFavorit
shareDistribuie
Save searchSalvare căutare
Imprima

INFORMAȚII

Grup de produse
Rotatoare
Marca /model
Vahva FORTI 200
Anul fabricatiei
2015
Optiuni extra
Ex demo
Locatia masinii
Saue
Tara
Estonia
Nivel general
1
2
3
4
5
Mascus ID
24BE0111

STABILIREA PRETULUI

Alege moneda

DETALII

Numar de stoc intern
VR50000
Istoria reviziei complete
Da
Se potriveste la urmatoarele masini
a mechanical rototilt designed for excavators from 13 to 20 tonnes, can be fitted to stick with pin diameter 80 mm, distance between pins (pin spread) 485 mm, face spread (stick width) 335 mm (JCB).

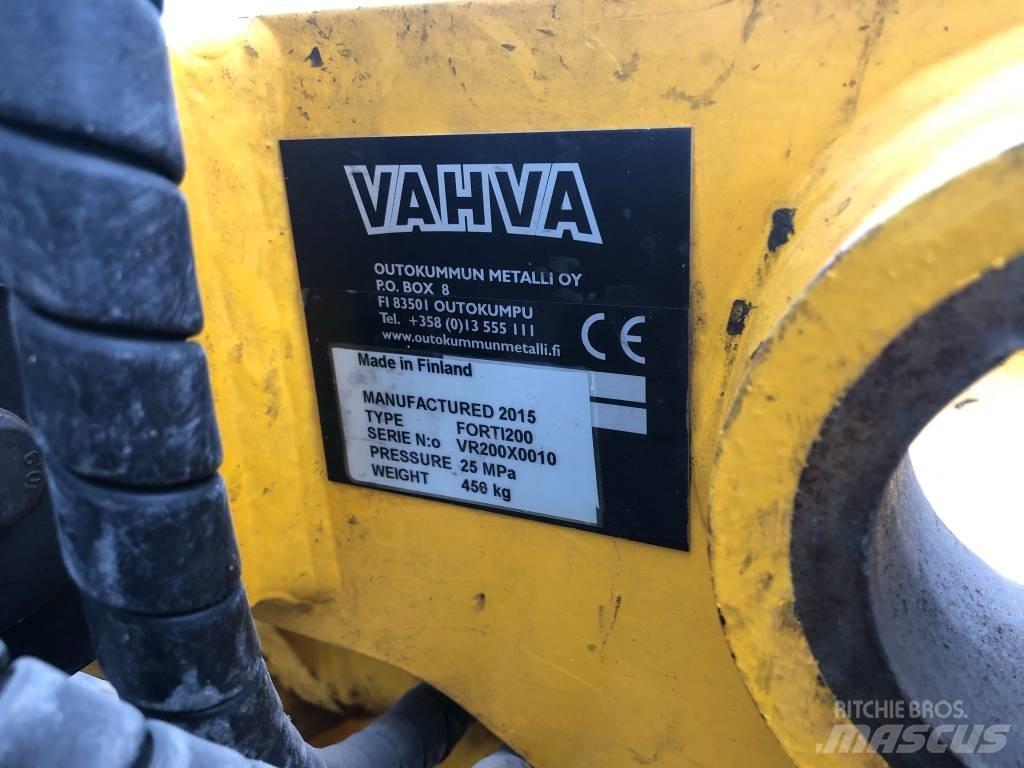

Numar de producere
VR200X0010
Presiune operativă
250 bar
Flux hidraulic necesar
80 l/min
Greutate transport
450 kg
Dimensiuni transport (Lxlxî)
990 x 720 x 280 mm
Tara de productie
Finlanda
Termen de livrare
EXW
Certificate
CE
Alte informaţii
A new and cheaper alternative for tilt-rotator, features full hydraulic tilt and a manual rotation system, manufactured by Finnish company Vahva. The Vahva Forti 200 is a mechanical tilt-rotator designed for excavators from 13 to 20 tonnes. Like most tilt-rotators these days the bucket or attachment can be tilted hydraulically 45 degrees both ways. But it’s the rotation aspect which differs from conventional tilt-rotators, with no expensive gear drive or electrics involved in the build. The Forti 200 couples to the bucket or attachment by engaging with a conical disc, which is then tightened and locked in place by the gripper. When the operator wants to rotate his bucket to a desired position he simply loosens the grip slightly and manually pushes the bucket around before re-locking the mechanism. You can see the system in operation in this promotional video from Vahva. Maybe you would see this as a bit of a backward step with tilt-rotation systems, but surely it could appeal to those who are watching the pennies more closely and working on a tight budget maybe.Afiseaza mai multe
