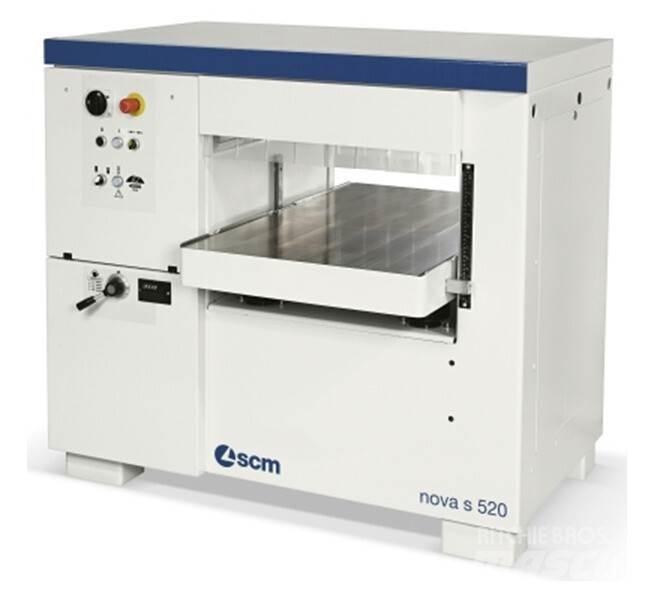

SCM nova s 520

nova s520 Thicknessing Planer Title: nova s520 Thicknessing Planer SKU: 90109 Model: nova s 520 Condition: New GeneralHorsepower:11hp Max. Workpiece Width:520 mm / 20.47" Max. Workpiece Thickness:300 mm / 11.81" Type:Tersa ElectricalVoltage:600volts Phase:3-phase Made In: ITALY Dimensions: 54.80 (H) x 39.50 (W) x 44.90 (L) inches "Tersa" cutterblock with throwaway knives - complete with one set of knives - No. 4 standard knives dimensions: 520 x 30 x 3 mm Worktable dimension: 520 x 900 mm Working height (min/max): 3.5/300 mm Max. stock removal: 8 mm Min. working length: 220 mm Min. working width: 10 mm Cutterblock speed: 4500 rpm Cutterblock diameter: 120 mm Feed speed: 5-8-12-18 m/min Exhaust outlet diameter: 150 mm Standard Equipment and Options - Powered lifting of thicknessing table, 2 speeds with micrometric adjustment - Numerical readout of working height with decimal control - Thicknessing table with vertical moving by means of 4 steel screws - 1st front roller in helicoidal steel - No. 1 rubber coated steel outfeed roller - Interchangeable feed rollers - Cutterblock and knife fitting gibs with technical specs. and instructions engraved on same, complete with knife-setting device - kW 7 Hz 50 (kW 8 Hz 60) motor power : - [S1] 5.5kW 7.5HP 50Hz (6.6kW 9HP 60Hz) - [S6 -40%] 7kW 9.5 HP 50Hz (8kW 11HP 60Hz) - Direct start main motor (USA/Canada version) - Manual star-delta start (electrical protections and CE versions) - Service kit for use and maintenance Additional Features - Worktable with 2 idle rollers - 1st infeed sectioned steel feed roller (in alternative to the helicoidal roller) - Seaworthy packing
