Rotosonic CRS XL 150
Preţ excl. TVA
Imprima
INFORMAȚII
Grup de produse
Underground Cable Bolters
Marca /model
Rotosonic CRS XL 150
Anul fabricatiei
2019
Locatia masinii
Dalarna
Tara
Suedia
Mascus ID
BC01C86C
STABILIREA PRETULUI
Alege moneda
DETALII
Numar de stoc intern
8970
Alte informaţii
Please provide reference number upon request: S8970

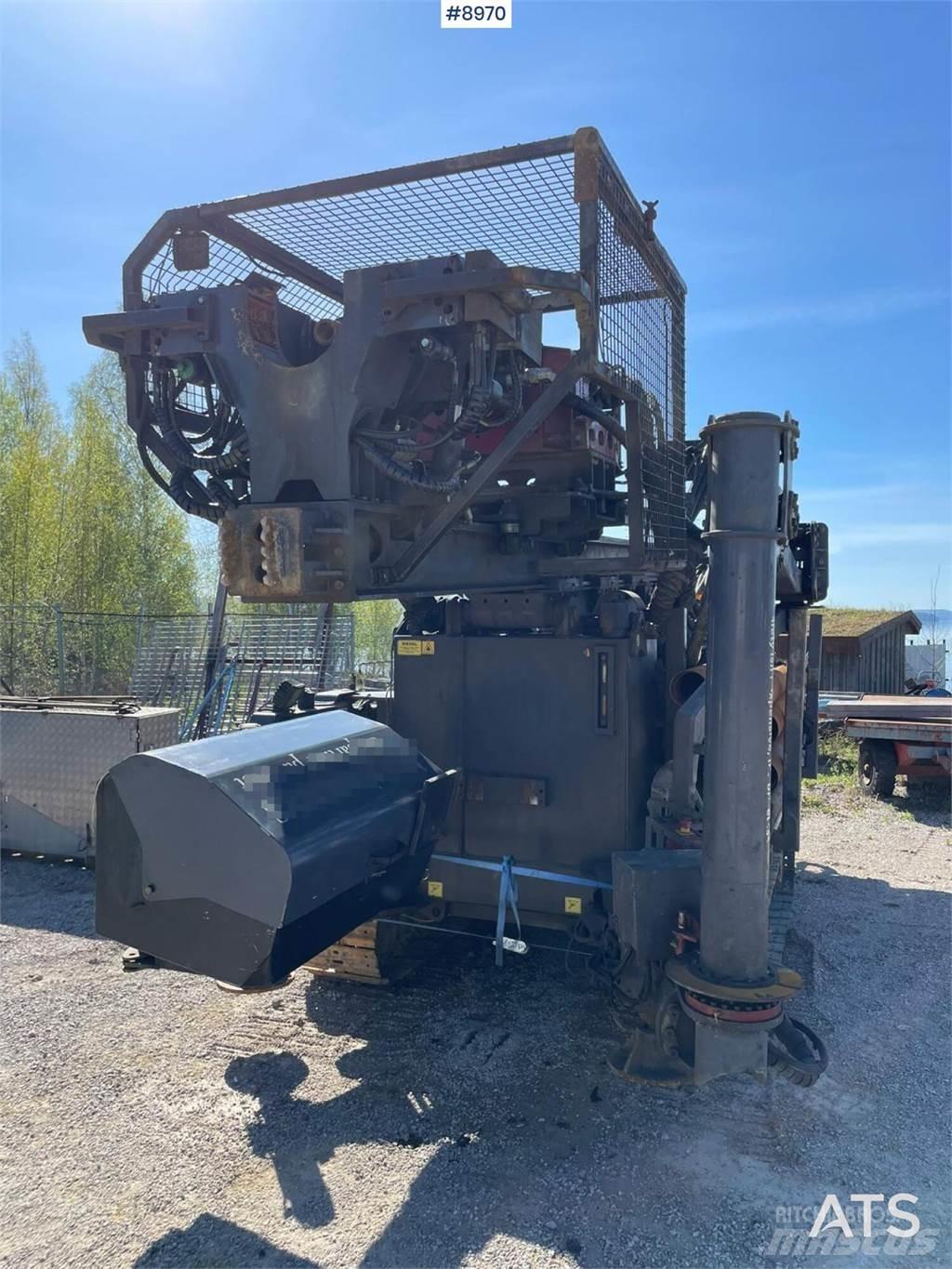

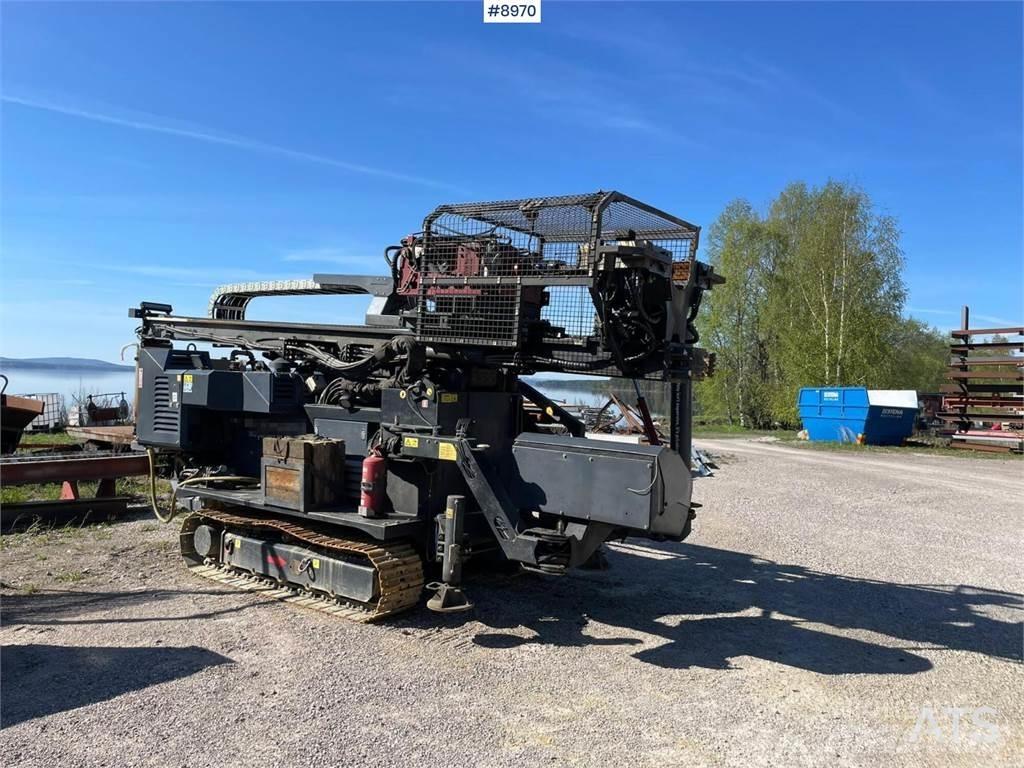

Drilling rig Rotosonic CRS XL150 equipped with CPT
- Model: CRS XL150
- Power: 110 kW (148 hp) at 2200 rpm.
- Emission class: EU Stage IV EPA Tier 4 Final.
- Radio remote control for drilling and driving
- Ad Blue, 19 liters
- Hydraulic side shift
- CompactRotoSonic drill head
- Max. frequency: 0-150Hz
- Head tilt max: 70°
- Drilling angle: 45° and 10° perpendicular
- ManipAll 200
- LED light system on rig
- Fleshing light at the top of the mast
- LED light at the back of the drill rig
Dimensions and weight
- Weight: 600 kgs
- Height folded up: 7650 mm
- Height folded down: 2950 mm
- Length folded down: 6725 mm
- Width: 2000 mm
- Track length: 2445 mm
- Shoe width: 400 mm
- Stroke: 3500 mm
- Mast dump, Stroke: 600 mm
- Max load 100 kgs
- Gross weight 11 000 kgs
