APV B134 MGS-20

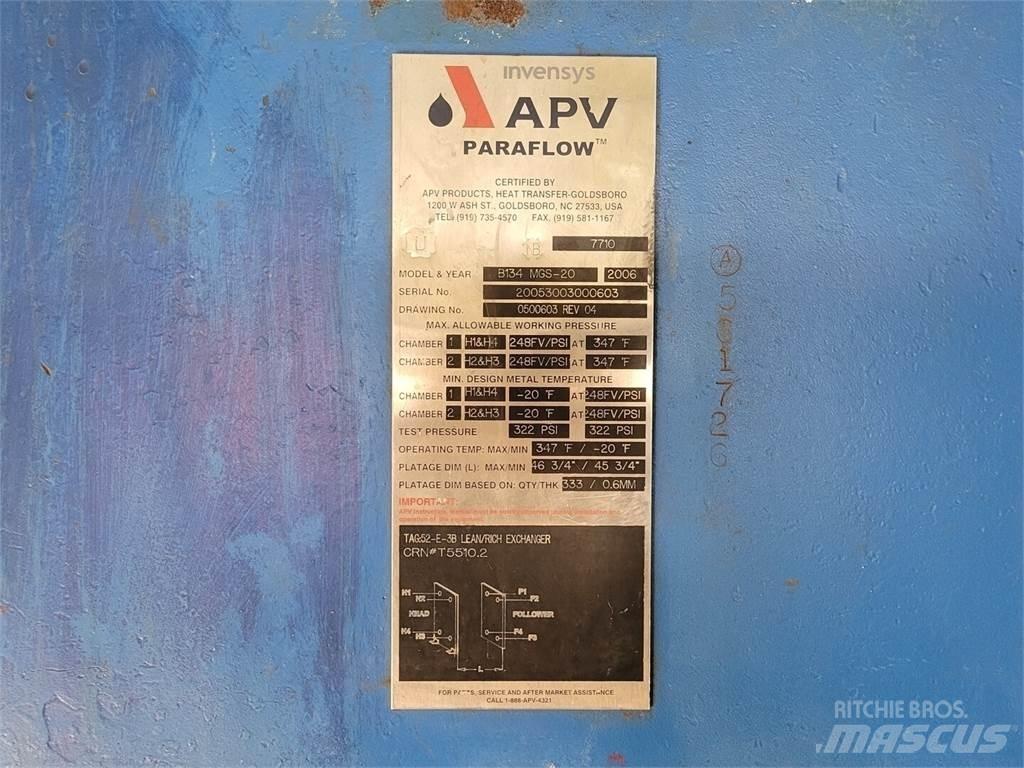

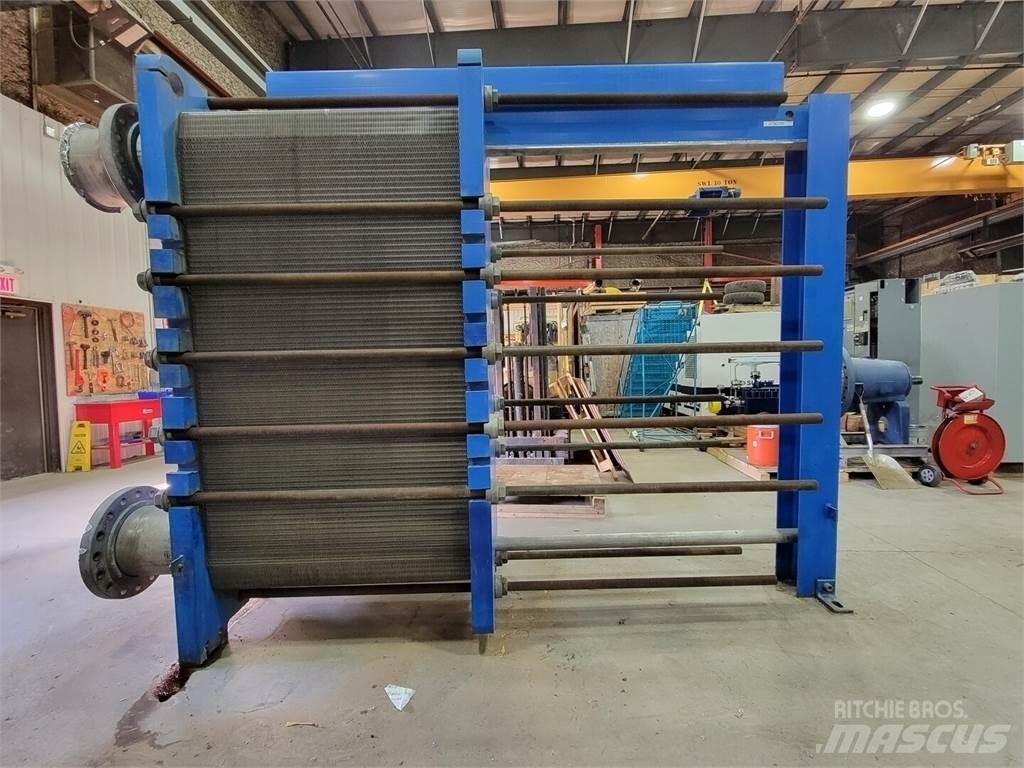

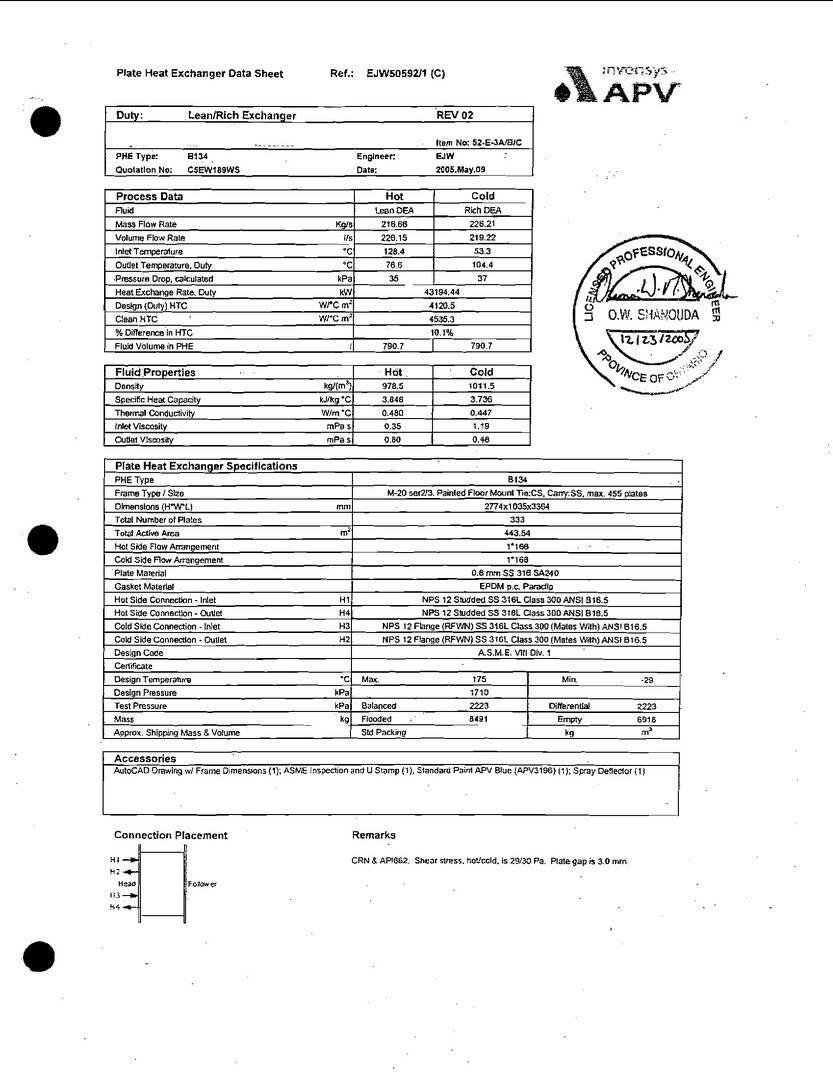

2006 APV B134 MGS-20 Paraflow Plate Heat Exchanger – Process Packages Oil Field Heat Exchangers Title: Paraflow B134 MGS-20 Plate Heat Exchanger SKU: 82860 Model: B134 MGS-20 Year: 2006 Condition: Used S/N: 20053003000603 Made In: UNITED STATES Dimensions: 111.00 (H) x 41.00 (W) x 149.00 (L) inches Max. Allowable Working Pressure: 248 PSI/FV ... 347 oF Min. Design Metal Temperature: -20 oF ... 248 PSI/FV Operating Temp.: Max. 347 oF / Min. -20 oF Heat Transfer Area: 4774.2 sq. ft. Frame Size: No. 30 Frame Capacity: 455 Plates Max. Dry Weight: 15251 lbs. Flooded Weight: 18509 lbs. Total Liquid Volume: 391.2 US Gals. (1480.7 L) Operation Liquids: Lean diethanolamine, rich diethanolamine Materials Frame: SA-516-70N Plates: SA-240-316 Gasket: EPDM (Peroxide cured) Tie Bars: SA-193 B7 Shroud: 304 SS Nozzle Lining: 316 SS Bolts/Nuts (Internal): SA-193-B7M / SA-194-2HM Bolts/Nuts (External): SA-193-B7 / SA-194-2H [Datasheet](...
