CORIX UV-200-2

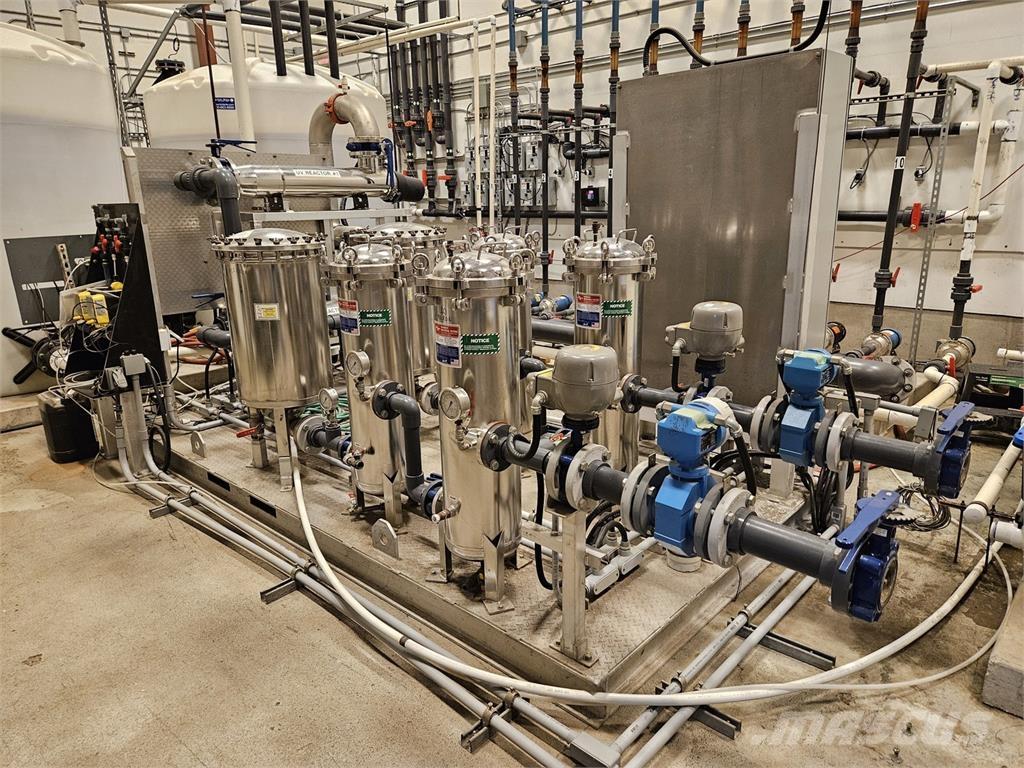

2011 CORIX UV-200-2 Chlorine and UV Disinfection Water Treatment System – Fluid Handling Equipment Title: Chlorine and UV Disinfection Water Treatment System UV-200-2 SKU: 143255 Model: UV-200-2 Year: 2011 Condition: Used The two Trojan UV reactor system uses UV to inactivate and neutralize disease-causing microorganisms like viruses, bacteria, and protozoa in water, preventing them from reproducing and causing illness Includes complete PLC panel. Corix UV Water Treatment Trains x 2 - 1 duty, 1 standby - Each train is rated for 100 US gpm Each Train consists of the following: Influent Flow Control - 1 x 80 mm Keystone AR2-805 butterfly valve w/ EP12 electric modulating actuator Cartridge Filters Cartridge Filter Housing - 2 x Harmsco Hurricane 1X170FL housing, for 20 and 10 micron cartridges - 1 x Harmsco HIF 75 housing, for 5 micron cartridges Filter Cartridge - 1 x 20 micron, Harmsco HC/170-20 filter cartridge - 1 x 10 micron, Harmsco HC/170-10 filter cartridge - 75 x 5 micron, Harmsco 801-5 filter cartridge Isolation Valves - 2 x 50 mm Keystone AR2-805 butterfly valve with lever handle - 1 x 80 mm Keystone AR2-805 butterfly valve with lever handle UV System - 1 x Trojan Technologies UV Swift SC B06 reactor Maximum operating pressure: 150 psig Comes with: - Automatic quartz sleeve wiper - PLC control panel with display - Dry contacts & 4-20 mA output - Isolation Valves - 2 x 150 mm Keystone 612-100 butterfly valve with lever handle Instrumentation Flow - 2 x 80 mm E+H Promag 10W magnetic flow meter (integral mount, 4-20 mA output) Chlorine Analyser - 1 x Grundfos Alldos Conex DIA-2 two parameters controller w/ AquaCell chlorine measuring cell Turbidity - 1 x Hach 1720 E turbidimeter with SC200 controller - 1 x Hach Formazin turbidity calibration kit - 1 x ASCO Series 8210 solenoid control valve Pressure - 3 x Wika A-10 pressure transmitter w/ 100 mm Wika Model 21X.53 bourdon tube, range: 0-60 psi - 4 x Pressure gauge, 100 mm Wika Model 21X.53 bourdon tube, range: 0-60 psi Level - 1 x Siemens The Probe level transmitter (Equalization tank) Sampling - 2 x 6 mm Chemline PVC ball valve Service Water - 1 x ASCO Series 8210 solenoid control valve Chemical System - Calcium Hypochlorite - 1 x LMI electronic metering pump, model AA941-358S1, 2.2 L/h ... 250 psi, 4-20 mA input (w/ multifunction valve) - 1 x Primary Fluid Systems ACCUDRAW PVC calibration cylinder (100 mL, 6 L/h) - 1 x 15 mm PVC ball valve - 25 ft x 8 mm flexible chemical tubing - 1 x Aluminum pump stand Control Panel - 1 x Corix Standard Panel - Allen Bradley PLC - Nema 12 Enclosure - CSA approved - Local H/O/A controls Piping - 1 lot PVC sch. 80 piping
