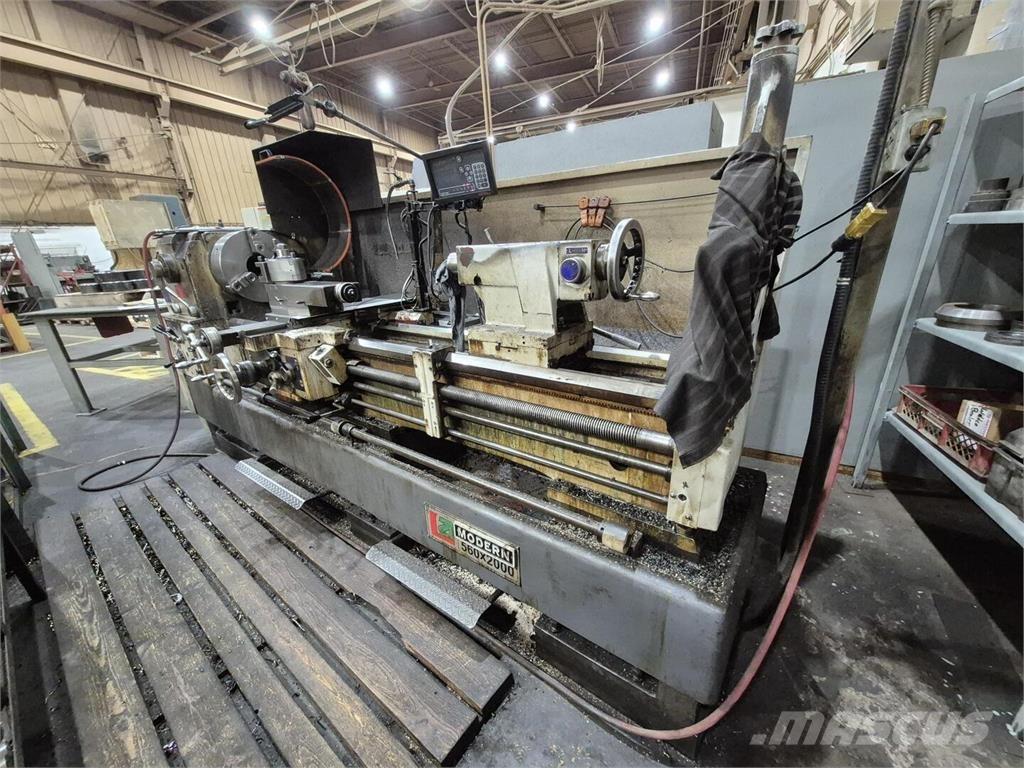

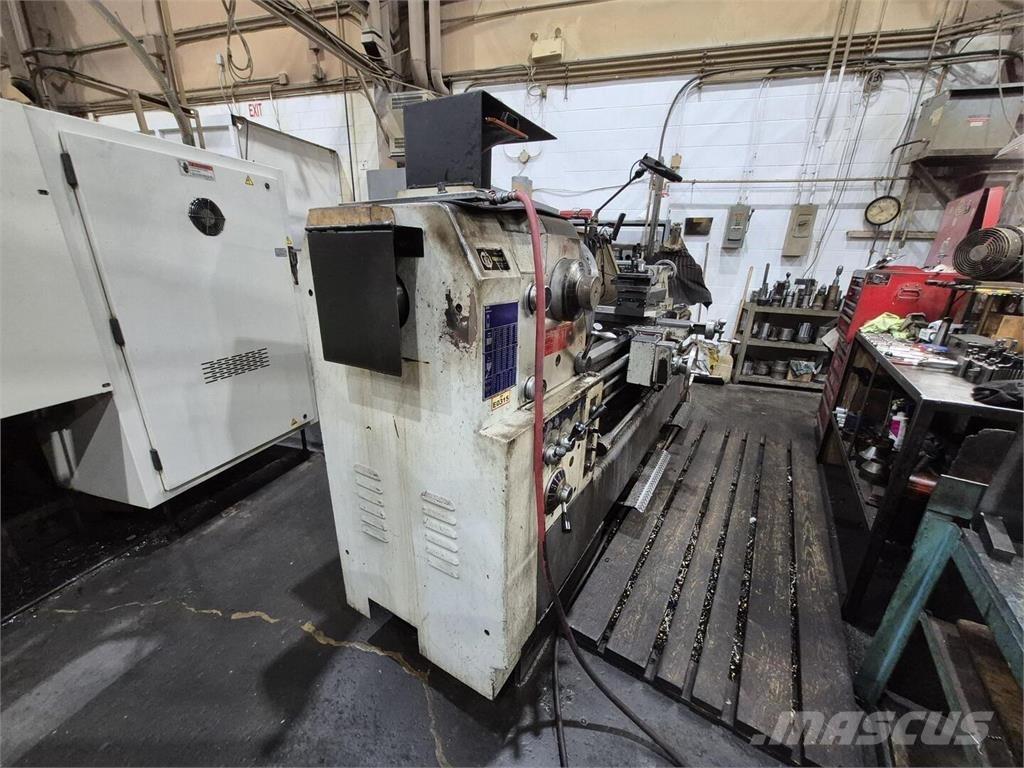

MODERN 560X2000

MODERN 560X2000 22" x 80" Precision Lathe – Metalworking Lathes (Metal) – 15 hp, 80 ", 22 ", 13 ", 4-1/16 ", 220 volts, 3-phase Title: 22" x 80" Precision Lathe 560X2000 SKU: 141487 Model: 560X2000 Condition: Used S/N: 60914 GeneralHorsepower:15hp Distance Between Centres:80" Swing Over Ways:22" Swing Over Carriage:13" Bore Diameter:4-1/16" ElectricalVoltage:220volts Phase:3-phase Dimensions: 58.00 (H) x 46.00 (W) x 132.00 (L) inches Bed Width: 15-3/4" Total Travel of Top Slide: 7-1/2" Swing Over Bed: 22" Swing Over Cross Slide: 13" Swing in Gap: 30-7/8" Gap Width in Front of Face Plate: 10-5/8" Height of Centers from Leg Bottom: 42" Distance Between Centers: 80" Number of Spindle Speeds: 12 Spindle Bore: 4-1/16" Type of Spindle Nose: D1-11 Taper of Spindle Bore & Center: MT No. 7 x No. 5 Range of Spindle Speeds: (12) 13 - 1200 RPM Range of Inch Threads: 4 PTI: 2-72, 2 PTI:1-36 Range of Metric Threads: 6mm: 0.2 - 14 Number of Feeds: 36 Range of Longitudinal Feeds: 0.0014" - 0.039" Range of Cross Feeds: 1/2 of Longitudinal Feeds Tailstock Quill Diameter: 2-15/16" Total Travel of Tailstock Quill: 7" - MT#5 Taper in Tailstock Quill: MT#5 Coolant Pump: 1/8 Motor: 15 hp, 220 volts, 3 ph, 60 Hz With tapping tooling
