ICE 1412C

Preţ excl. TVA

POA

Compnay LOGO
Images2

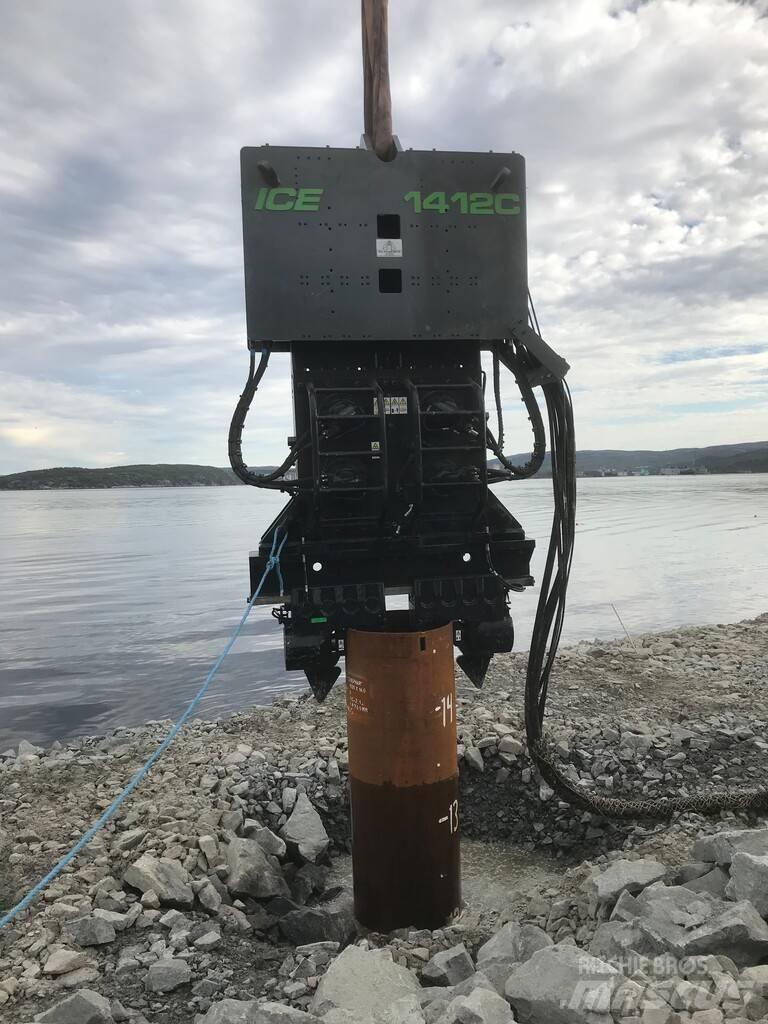

ICE 1412C Vibratoare forare piloni
ICE 1412C Vibratoare forare piloni
FavoriteFavorit
shareDistribuie
Save searchSalvare căutare
Imprima

INFORMAȚII

Grup de produse
Vibratoare forare piloni
Marca /model
ICE 1412C
Anul fabricatiei
2004
Optiuni extra
recondiționat
Locatia masinii
Etten Leur, Noord-Brabant
Tara
Olanda
Nivel general
1
2
3
4
5
Mascus ID
9A082F12

DETALII

Numar de stoc intern
1412C0100
Ultima inspectie
2024-04-15
Număr de proprietari anteriori
2
Numar de producere
1412C0100
Clasa de emisie
Etapa II
Greutate transport
14.500 kg
Producător de motoare
CATERPILLAR
Dimensiuni transport (Lxlxî)
3.5 x 2.5 x 1.5 mm
Tara de productie
Olanda
Termen de livrare
EXW
Certificate
CE
Atasamente
ICE 1412C vibratory hammer ICE 320TU universal sheet pile clamp 60m hydraulic hose bundle ICE 900 hydraulic power pack Optionally: 2x casing clamps with beam
Documente
Spec-sheet-ICE-1412C.pdfSpec-sheet-ICE-320TU.pdfICE-900-RF-Parts-manual.pdfCat-3412E.pdfPP-Spec-s.pdf
Alte informaţii
The ICE 1412C vibratory hammer is a standard frequency vibratory hammer which is powered by the original ICE 900 (CAT) power pack. This hydraulic power pack is fitted with a reliable and strong V12 Caterpillar diesel engine. CAT is well supported and spare parts and service are worldwide available. The power pack comes with a remote control and has been manufactured with sound insulation material and a closed bottom plate. Both vibratory hammer and power pack have been subject to manufacturers’ inspection in at the current running hours and were found in good condition. The gearbox of the vibratory hammer was factory rebuild in 2015 which is also mentioned on the model plate. Technical specifications ICE 1412C vibratory hammer Eccentric moment: 110 kgm Running hours: 1727 hrs Serial number 1412C1000 Factory rebuilt 2015 Max. centrifugal force: 2300 kN Max. frequency: 1380 rpm Max. static line-pull: 800 kN Max. operating pressure: 350 bar Max. oil flow: 830 ltr Operational weight 14.320 kg incl. 320TU clamp Year of manufacture 2004 Universal sheet pile clamp: 320TU Optional tube clamps: 2 x Hydraulic hose bundle 60 meters 1 pc. ICE 900 power pack (yom 2004) Engine: CAT, type, 3412 DITA Engine type: V12 turbo charged diesel Total hours incl. idle: 8190 hrs Serial number: 90PR110009 Year of manufacture 2004 Power: 522 kW / 710 HP Max. working pressure: 340 bar Max. oil flow: 1020 ltr/min Hydr. oil tank capacity: 2400 ltr Fuel tank capacity: 900 ltr Full weight: 9700 kg Dimensions LxWxH : 4.9x2.2x2.4 mtrAfiseaza mai multe

Foundiz

Kroonstraat 1 4879 AV Etten-Leur Noord-Brabant Olanda
