Cummins 4B3.9-G2
Preţ excl. TVA
POA
2
Favorit
Distribuie
Salvare căutareImprima
INFORMAȚII
Grup de produse
Motoare
Marca /model
Cummins 4B3.9-G2
Anul fabricatiei
2016
Optiuni extra
Nou/nefolosit
Locatia masinii
Jining,Shandong
Tara
China
Nivel general
1
2
3
4
5
Mascus ID
2AF6E58B
DETALII
Dimensiuni transport (Lxlxî)
1100 x 900 x 1400 mm
Greutate transport
350 kg
Garanție
New
Tara de productie
China
Alte informaţii

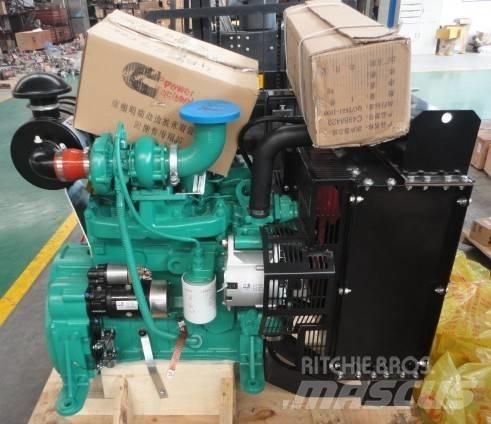

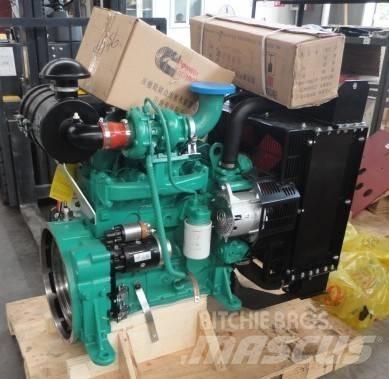

Cummins 4B3.9-G2 G-Drive Diesel Engine
General Information
Engine Model 4B3.9-G2
Engine Type 4 Cylinders in Line
Displacement 3.9 L
Bore*Stroke(mm) 102 * 120
CPL Number PP L004
Net Weight (with flywleel & alternator) 308 Kg
Overall Diemension(L*W*H) 867mm*544mm*988mm
Technical Specification
Fuel System BYC A Pump/GAC Electronic Governor
Aspiration Naturally Aspirated
Governing Rate ≤5%
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Engine Cooling Fluid Volume 7.2 L
Performance Data
Rated Power/Speed 24kW/32HP @ 1500rpm
Torque @ Rated Power 153 N.m @ 1500 rpm
Standby Power/Speed 27 kW/36HP @ 1500rpm
Torque @ Standby Power 172 N.m @ 1500 rpm
Fuel Consumption @ Rated Power 229g/Kw.h
Fuel Consumption @ Standby Power 228g/Kw.h
Idel Speed 950 – 1050 rpm
